User manual for Samson SERVO 200 - Power Amplifier SA200
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Samson
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Power Amplifiers
- Safety instructions
- Startup and operation of the power amplifiers
- Tips for setting up your Samson
- Settings and expert assistance
- Contact Samson service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the Samson SERVO 200 - Power Amplifier SA200,
which address similar problems with connecting and setting up Power Amplifiers Samson.
|
User manual for the Samson SERVO 200 - Power Amplifier SA200
The user manual for the Samson SERVO 200 - Power Amplifier SA200 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

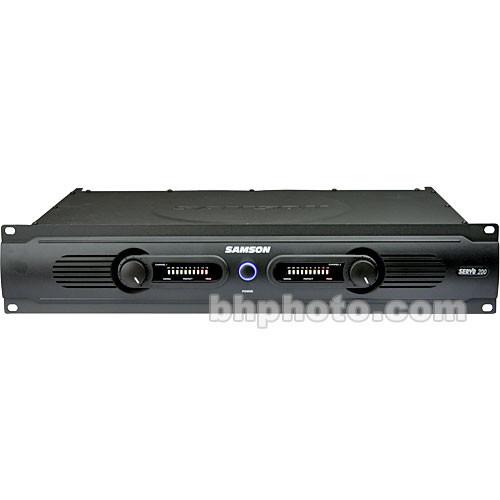

The Samson SERVO 200 is a 2-channel, 200-watt 2RU rackmount power amplifier, suitable for powering small to medium sized P.A. systems or integrated conference room audio systems.
|
If you own a Samson power amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Samson SERVO 200 - Power Amplifier SA200 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Samson SERVO 200 - Power Amplifier SA200:
| Power Rating | Stereo @ 8 Ohms: 66 Watts per Channel
Stereo @ 4 Ohms: 100 Watts per Channel
Bridged Mono @ 8 Ohms: 200 Watts | | Damping Factor | 280(400 Hz) | | Input Sensitivity | 1.24V(4dBu) | | Input Impedance | Unbalanced: 15kOhm
Balanced: 30kOhm | | Gain | 32dB | | Frequency Response | 20 Hz - 20 kHz, +0, -0.5 dB*
5 Hz - 60 kHz, +0, -3.0 dB* | | Signal-to-Noise Ratio | 102 dB(22 Hz - 20 kHz) | | Total Harmonic Distortion (THD) | 0.01% (20Hz - 20kHz, 10dB below rated output power)
0.1%, 1kHz, rated power output | | Input Connections | 2 x 1/4" TRS Phone, Balanced
2 x RCA Phono, Unbalanced | | Output Connectors | 2 x 5-way Binding Posts
2 x 1/4" TS Phone | | Controls Front Panel | 2 x Volume Control Knobs
1 x Power Button | | Controls (Rear) | 1 x Bridge/Stereo Mode Switch | | Indicators | 2 x 10-segment, 3-color Level LED meters
1 x Blue Power On LED
1 x Amber Protection Active LED
1 x Green Signal Present LED(per Ch.)
1 x Red Peak LED(per Ch.) | | Cooling | Continuously variable speed, fan-forced air | | Power Consumption | 1/8 Rated Power, 4 Ohms: 0.5A
1/3 Rated Power, 4 Ohms: 1.1A
Full Rated Power, 4 Ohms: 3.3A | | Dimensions | 19 x 3.5 x 11.7" (483 x 89 x 297mm) | | Weight | 15 lb (6.8 kg) | | Specialties | 4-Stage Protection Circuitry
On/Off Muting | | Package Weight | 21.7 lb | | Box Dimensions (LxWxH) | 22.0 x 15.5 x 7.0" | |
The user manual for the Samson SERVO 200 - Power Amplifier SA200 can be downloaded in .pdf
format if it did not come with your new power amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Samson users keep a unique electronic library
for Samson power amplifierss,
where you can use our link to download the user manual for the Samson SERVO 200 - Power Amplifier SA200.
The user manual lists all of the functions of the Samson SERVO 200 - Power Amplifier SA200,
all the basic and advanced features and tells you how to use the power amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Samson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Samson SERVO 200 - Power Amplifier SA200. User manuals are also
available on the Samson website under Pro Audio - Live Sound - Power Amplifiers.
