User manual for Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13

Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13
  • Manufacturer: Samson
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Samson
  • Settings and expert assistance
  • Contact Samson service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13, which address similar problems with connecting and setting up Wireless Receivers Samson.



User manual for the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13

The user manual for the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

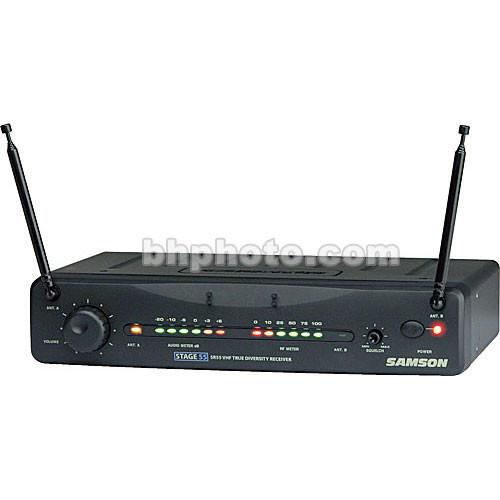

The Samson SR55 Receiver is intended for use with a corresponding transmitter for the Stage 55 series VHF wireless microphone or instrument system. The true diversity system design allows the two separate antennas to relay between each other in an effort to achieve the strongest possible signal. This minimizes any noise or drop out associated with RF interference. The SR55 features both balanced XLR and unbalanced 1/4" outputs, allowing the flexibility to connect to any audio system.
If you own a Samson wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13:
Type of Receiver SR55 Single Conversion Superheterodyne, Diversity
RF Carrier Frequency Range 173.80 to 213.20 MHz
Approx. Working Range 300' (91.4 m)
Overall Frequency Response 40 Hz to 15 kHz +/-3 dB
Signal-to-Noise Ratio >100 dB
Channel 13
Type of Output(s) Balanced: 3-pin XLR male (+4 dBm, 600 ohms)
Unbalanced: 1/4" Phone (-10 dBm, 5 kOhms)
Power Requirements 12 VDC, 100 mA typical (110 mA max.), AC adapter supplied
LED Display Indicators:
Antenna A or B: 2 LEDs
AF Level: 6 LEDs
RF Level: 6 LEDs
Mounting Options Flat Surface or Half Rack Mountable
Base Dimensions (WxHxD) 8.5 x 1.75 x 4.6 (216 x 44 x 116 mm)
Weight 7.1 oz (200 g)
Packaging Info
Package Weight 2.4 lb
Box Dimensions (LxWxH) 12.3 x 9.3 x 3.9"
The user manual for the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13 can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samson users keep a unique electronic library for Samson wireless receiverss, where you can use our link to download the user manual for the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13.

The user manual lists all of the functions of the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samson service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samson SR55 Receiver for Stage 55 Series VHF SW55R00 - 13. User manuals are also available on the Samson website under Pro Audio - Live Sound - Wireless Receivers.
