User manual Samson SXD5000 Power Amplifier with DSP SXD5000

Operating instructions and pdf manual for use - Samson SXD5000 Power Amplifier with DSP SXD5000 User manual, User manual Samson SXD5000 Power Amplifier with DSP SXD5000, Samson, SXD5000, Power, Amplifier, with, DSP, SXD5000, Video


User manual for Samson SXD5000 Power Amplifier with DSP SXD5000

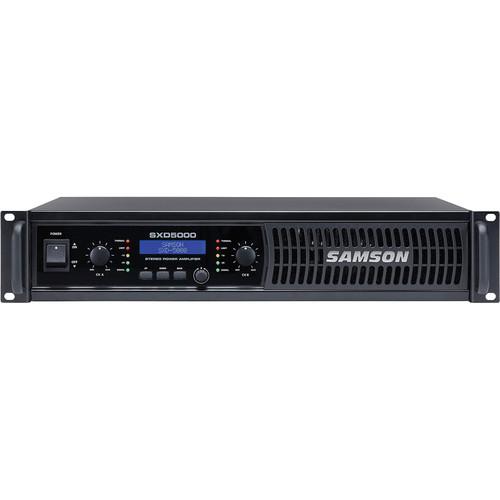

Samson  SXD5000 Power Amplifier with DSP SXD5000
  • Manufacturer: Samson
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Samson
  • Settings and expert assistance
  • Contact Samson service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Samson SXD5000 Power Amplifier with DSP SXD5000, which address similar problems with connecting and setting up Power Amplifiers Samson.



User manual for the Samson SXD5000 Power Amplifier with DSP SXD5000

The user manual for the Samson SXD5000 Power Amplifier with DSP SXD5000 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

The SXD5000 Power Amplifier with DSP by Samson is for live sound reinforcement. It is used in various environments in audio applications to provide clean power for speakers such as in DJ setups, houses of worship, front of house, live stage performance and more. It features 750W power per side at 4 Ω. This amp is designed to provide clean output with low distortion and a wide dynamic range over a frequency spectrum of 20 Hz to 20 kHz.
If you own a Samson power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samson SXD5000 Power Amplifier with DSP SXD5000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samson SXD5000 Power Amplifier with DSP SXD5000:
Specifications
    Rated Output Power Stereo Both Channels Driven:
    8 Ω 500 W
    4 Ω 750 W
    Signal to Noise Ratio 20 Hz to 20 kHz: >100 dB
    Distortion SMPTE-IM: 0.02%
    Input Sensitivity At 8 Ω Voltage Gain: 5 dBu
    Voltage Gain 32 dB
    Output Circuit 2-Tier Class H
    Current Consumption 115 VAC:
    At 1/8 Rated Power 4 Ω: 3.8 A
    At 1/3 Rated Power 4 Ω: 10 A
    At Rated Power 4 Ω, Max: 13.6 A
    Distortion Typical @ 4 Ω:
    20 Hz to 20 kHz, 10 dB Below Rated Power: 0.02 %
    1 kHz, Rated Power: 1 %
    Frequency Response At 8 Ω 1 W, 0/-1 dB: 20 Hz to 20 kHz
    Damping Factor 400 Hz: 120
    Input Impedance 20 kΩ balanced
    Input Clipping Level 10 Vrms (22 dBu)
    Cooling Continuously variable speed fan cooling
    Connector Inputs: 2 x 3-pin XLR
    2 x 1/4" (0.63 mm)TRS, balanced
    Outputs: 4 x Binding post
    2 x Speakon
    Indicators Signal, -20 dB, 10 dB, limit, thermal
    Protection Short circuit, open circuit, thermal, RF protection
    Load protected against DC faults
    DSP
    Display 2 x 16 character LCD
    Modes Manual mode, 2 full range, mono 2-way, sub/sat, 2 subs
    I/O Stereo, mono A+B dual, mono A+B link, parallel A dual, parallel A link
    Digital Dynamics Function: Filter, crossover, gain offset, EQ, limiter
    Digital Delay Function: Max 20 ms per channel
    Digital Equalizer Function Per Channel
    fO: 1/12 octave at 20 to 20 kHz
    Gain: ± 12 dB
    Q: 0.5 to 5.0
    Presets: DJ, vocal, live sound, install, rock, dance and jazz
    Setup Lock controls with code, factory reset
    Dimensions (L x W x H) 19.0 x 13.0 x 3.5" (482 x 330 x 88 mm)
    Weight 28.6 lb (13 kg)
    Packaging Info
    Box Dimensions (LxWxH) 22.13 x 16.54 x 7.28"
    The user manual for the Samson SXD5000 Power Amplifier with DSP SXD5000 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samson users keep a unique electronic library for Samson power amplifierss, where you can use our link to download the user manual for the Samson SXD5000 Power Amplifier with DSP SXD5000.

    The user manual lists all of the functions of the Samson SXD5000 Power Amplifier with DSP SXD5000, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samson SXD5000 Power Amplifier with DSP SXD5000. User manuals are also available on the Samson website under Pro Audio - Live Sound - Power Amplifiers.
