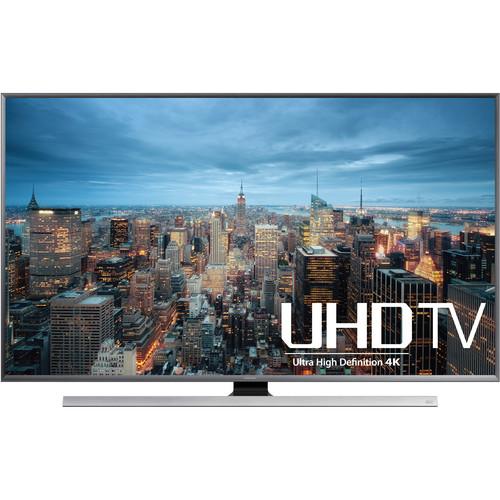

Click to enlarge image
We recommend checking out our discussion threads on the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA,
which address similar problems with connecting and setting up Televisions Samsung.
User manual for the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA
The user manual for the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA provides
necessary instructions for the proper use of the product TVs & Entertainment - Televisions.
Enjoy Internet connectivity and wireless content sharing with the Samsung JU7100 Series 40"-Class 4K Smart LED TV. This model has a 40"-class display and features a 3840 x 2160 native resolution for viewing detailed 4K content. You can even upscale lower resolution material to near-4K picture quality. Clear Motion Rate 240 technology is onboard for reducing distortion on fast moving images like televised sporting events.
As a Smart TV, this model has Wi-Fi and Ethernet connectivity for accessing Samsung's app-based Smart Hub. The Smart Hub offers a full web browser and allows you to explore streaming multimedia content such as Netflix, YouTube, games and more. Built-in S-Recommendation helps you discover additional content based on preferences. This model even allows you to wirelessly mirror content between your TV and portable devices.
The JU7100 includes the Samsung One Connect Mini for external device connections. With four HDMI and three USB ports, you have multiple options for connecting high-resolution audio and video sources. A component video input is also onboard for connecting additional sources; the component video connection is shared with a composite video input for interfacing lower resolution sources. The Samsung JU7100 series also supports 3D viewing when paired with sold separately 3D glasses and content.
If you own a Samsung televisions and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA:
| Screen Size (Diagonal) || 40.0" |
| Panel Type || LED LCD |
| Pixel Resolution || 3840 x 2160 |
| Contrast Ratio || Not Specified By Manufacturer |
| Refresh Rate || Not Specified By Manufacturer |
| Video System || ATSC, Clear QAM |
| TV Tuner || Yes |
| 3D || Yes |
| Sound || Stereo |
| Subwoofer || No |
| Power || 20 W |
| Orientation || Bottom |
| Wi-Fi || Built-in |
| Menu Language || English, Spanish, French |
| Remote Control || Yes |
| Wall Mounting || 200 x 200 mm |
| Inputs/Outputs || 1x RF Antenna In |
4x HDMI Audio/Video In
3x USB 2.0 Audio/Video
1x Ethernet LAN
1x RCA Component Video In
1x RCA Composite Video In
1x RCA Stereo (L/R) Audio In
1x SPDIF Audio Out
1x 1/8" (3.5mm) Mini Audio Out
1x RS-232C Control
| Power Requirements || 110-120 VAC, 60 Hz |
| Power Consumption || Typical: 55.0 W |
Maximum: 140.0 W
Standby: < 0.3 W
| Energy Star Compliant || Yes |
| Dimensions (WxHxD) || 36.1 x 21.1 x 2.6" / 91.7 x 53.6 x 6.6 cm Without Stand |
36.1 x 23.1 x 10.7" / 91.7 x 58.7 x 27.2 cm With Stand
| Weight || 18.3 lb / 8.30 kg Without Stand |
22.9 lb / 10.39 kg With Stand
| Package Weight || 28.0 lb |
| Box Dimensions (LxWxH) || 42.5 x 23.5 x 5.5" |
The user manual for the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA can be downloaded in .pdf
format if it did not come with your new televisions, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Samsung users keep a unique electronic library
for Samsung televisionss,
where you can use our link to download the user manual for the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA.
The user manual lists all of the functions of the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA,
all the basic and advanced features and tells you how to use the televisions.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Samsung service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Samsung JU7100 Series 40"-Class 4K Smart LED UN40JU7100FXZA. User manuals are also
available on the Samsung website under TVs & Entertainment - Televisions.
