User manual Samsung S22D300NY 21.5" LED TN Monitor S22D300NY

Operating instructions and pdf manual for use - Samsung S22D300NY 21.5" LED TN Monitor S22D300NY User manual, User manual Samsung S22D300NY 21.5" LED TN Monitor S22D300NY, Samsung, S22D300NY, 21.5, LED, TN, Monitor, S22D300NY,


User manual for Samsung S22D300NY 21.5" LED TN Monitor S22D300NY

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.
Samsung S22D300NY 21.5
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY, which address similar problems with connecting and setting up Computer Monitors Samsung.



User manual for the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY

The user manual for the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

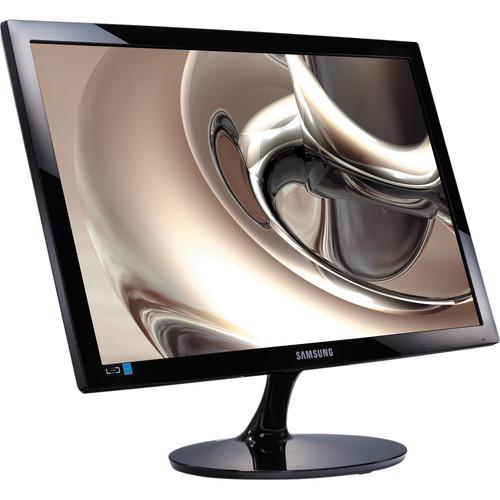

The S22D300NY 21.5" LED TN Monitor from Samsung is a full high definition 1920 x 1080 resolution display that can show 16.7 million colors for quality imagery. The display features 200 cd/m² brightness, a response time of 5 ms, and a 600:1 contrast ratio as well as 90° horizontal and 65° vertical viewing angles. It is available with a VGA input connector.
If you own a Samsung computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samsung S22D300NY 21.5Download user manual for Samsung S22D300NY 21.5" LED TN Monitor S22D300NY
(PDF file, 4.9 MB)
Additional parameters of the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY:
Specifications
Panel/Display
Type LED TN
Viewable Size 21.5" (54.6 cm)
Brightness 200 cd/m²
Contrast Ratio 600:1
Pixel Pitch 0.248 mm
Viewing Angle 90°/65°
Response Time 5 ms (GTG)
Colors Supported 16.7 million
Frequency Horizontal: 30-81 kHz
Vertical: 56-75 Hz
Resolution 1920 x 1080 at 60 Hz
Input Signal RGB Analog, HDMI: 0.7 Vp-p ±5%
Separate H/V sync, Composite, SOG: TTL level (V high ≥2.0 V, V low ≤0.8 V)
Input/Output Connectors
Analog 1 x VGA
Digital None
General
Compliant Standards ENERGY STAR
EPEAT Gold
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Typical: 22 W
Stand-By/DPMS: 0.3 W
Operating Conditions Temperature: 50 to 104°F (10 to 40°C)
Humidity: 10 to 80%, non-condensing
Storage Conditions Temperature: -4 to 113°F (-20 to 45°C)
Humidity: 5 to 95%, non-condensing
Dimensions (WxHxD) With Stand: 20.1 x 15.2 x 7.0" (51.0 x 38.6 x 17.8 cm)
Without Stand: 20.1 x 12.2 x 2.1" (51.0 x 31.0 x 5.3 cm)
Weight With Stand: 6.3 lb (2.8 kg)
Without Stand: 5.7 lb (2.6 kg)
Packaging Info
Package Weight 9.0 lb
Box Dimensions (LxWxH) 22.4 x 14.7 x 4.0"
The user manual for the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung computer monitorss, where you can use our link to download the user manual for the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY.

The user manual lists all of the functions of the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung S22D300NY 21.5" LED TN Monitor S22D300NY. User manuals are also available on the Samsung website under Computers & Solutions - Monitors & Displays - Computer Monitors.
