User manual Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB

Operating instructions and pdf manual for use - Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB User manual, User manual Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB, Samsung, SRN-4000, 64-Channel, 400, Mb/s, Premium, SRN-4


User manual for Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB

Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 12 USD
Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB
Click to enlarge image

We recommend checking out our discussion threads on the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB, which address similar problems with connecting and setting up Network Video Recorders (NVRs) Samsung.



User manual for the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB

The user manual for the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

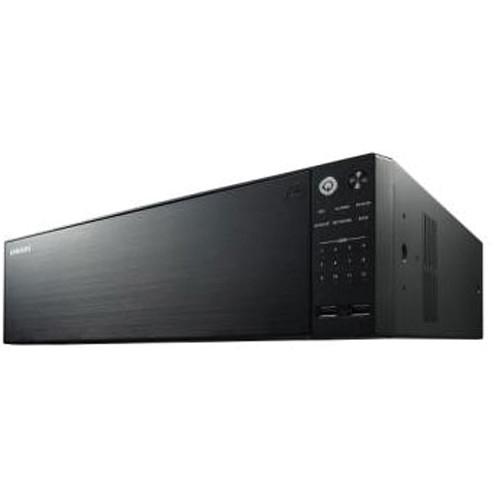

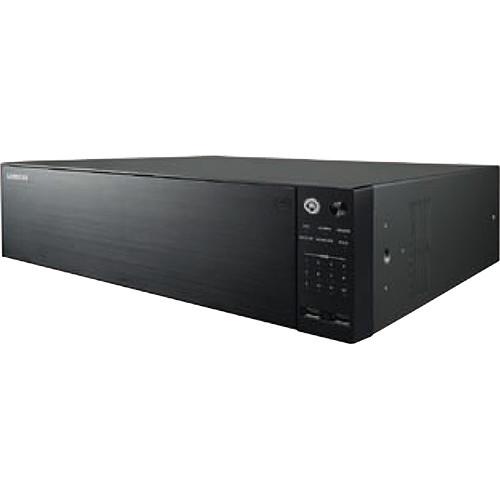

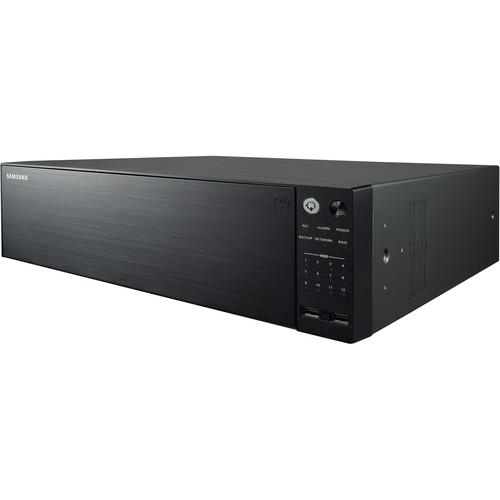

The black SRN-4000 64-Channel 400 Mb/s Premium Network Video Recorder from Samsung records video and audio from up to 64 network cameras in up to 5MP and enables playback of the data recorded onto the hard disk. It comes with hot swappable HDDs and a redundant hot swappable power supply. It also provides remote monitoring of video and audio over the network using a remote computer. Along with support for high-level functions such as RAID 5/6, 4 x gigabit Ethernet ports, and advanced video motion detection, this NVR also supports a local monitor for ease of use, automatic camera registration, ONVIF cameras, and mobile apps for smartphone and tablet connectivity.
If you own a Samsung network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB:
Specifications
Display
Camera Network Camera:
Inputs: Up to 64
Resolution: CIF to 5M
Protocols: Samsung, ONVIF
Live Local Display: HDMI / VGA

Multi Screen Display:
Local Monitor: 1 / 4 / 9 / 16 / 1+5 / 1+7 / 1+12 / sequence
Web: 1 / 4 / 9 / 16 / 32 / 64 / sequence
Performance
Operating System Embedded Linux
Recording Compression: H.264, MPEG-4, MJPEG

Maximum Recording Bit Rate: 400 Mb/s (2M 64 cameras real-time recording)

Resolution: CIF to 5M

Mode: Manual, schedule (continuous/event), event (pre/post)

Event Trigger: Alarm input, video loss, camera event (sensor, MD, video analytics), VA (up to 4-channel selectable, advanced MD, object classification (people, car)

Event Action: E-mail, PTZ preset, alarm out, buzzer, monitor out
Search & Playback Playback Bandwidth: 25 Mb/s (16-channel simultaneous)

Search Mode: Date & time (calendar) / event log list

Simultaneous Playback:
Local Monitor/CMS/Web: Maximum 16 channels

Resolution: CIF to 5M

Playback Function: Fast forward/backward, Move one step up/down
Storage Maximum Internal HDDs: 12, hot swappable

Storage Capacity: 60 TB (pre-installed); expandable up to 48 TB

External NAS (iSCSI): vessRaid 1840i, maximum 192 TB (JBOD)

RAID 5/6
Back-up System Via Web GUI : BU / Exe
Network: JPEG / AVI
Function: Single-channel play, date-time/title display
Sensor Input/output: 8/4 (NO/NC selectable)
Audio Input: 64-channel (network)
Compression: G.711, G.726
Audio Communication: 2-way supported
Network
Interface RJ45
4 x Gigabit Ethernet
Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF, HTTPS, SNMP
DDNS Samsung iPOLiS DDNS
Network Maximum Total Throughput Bandwidth: 700 Mb/s
Maximum Transmission Bandwidth: 400 Mb/s
Users Maximum Remote Users:
Search: 1 user
Live Unicast: 10 users
Live Multicast: 20 users
IP IPv4 / IPv6
Security IP address filtering
User access log
802.1x authentication
Encryption
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Operating System Windows XP (service pack 2 or above), Vista, 7, 8
Mac OS X (10.4.8 or above)
Web Browser MS IE 8.x, 9.x
Google Chrome
Mac Safari
Firefox 2.x, 3.x
Software Viewer Software:
Type Webviewer, SmartViewer
CMS Support SDK / CGI
Smartphone Compatability Operating System: Android, iOS Protocol Support: RTP, RTSP, HTTP, CGI
Maximum Remote Users: Live 10 users, playback 1 user
Functions
Camera Setup Program Register: Auto, Manual

Setup Items:
IP Address, add profile edit, bitrate, compression, GOP, quality
Video Setup: MD, ABF, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, shutter
PTZ Control via GUI, Webviewer
256 presets
System Control Mouse (included)
Interface / Ports
Indicator LEDs Status Indicator:
12 x HDD action
1 x RAID status
1 x Alarm
1 x Power
1 x Record
1 x Back up
1 x Network
Switches Front Switches:
1 x Power switch
1 x Key-lock
Connections 1 x VGA

1 x HDMI

1 x Audio Out (RCA, line)

Ethernet:
4 x RJ45 Gigabit Ethernet
1 x Camera 1
1 x Camera 2
1 x Viewer
1 x iSCSI

Alarm:
8 x Input (terminal block)
4 x Output (terminal block)

2 x USB (front)

1 x Reset switch

2 x Power cord AC inlet
System
Log Entries Maximum 20,000 (system log, event log, back up log each)
General
Input Voltage 100 to 240 VAC ± 10%, 50/60 Hz
Input Current 4 to 1.5 A (dual SMPS)
Maximum Power Consumption 217 W (546 BTU with 12 x 2 TB HDD)
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 20 to 85% RH
Approvals Safety: UL
EMC: CE, FCC, KCC, CCC, Gost-R
Material Metal
Dimensions (W x H x D) 17.17 x 5.20 x 17.72" (436.00 x 132.00 x 450.00 mm), 3 U
Weight 27.43 lb (12.44 kg) including one 2 TB internal HDD
The user manual for the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung network video recorders (nvrs)s, where you can use our link to download the user manual for the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB.

The user manual lists all of the functions of the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB

Post new comment to Samsung SRN-4000 64-Channel 400 Mb/s Premium SRN-4000-60TB

Subject: SRN-4000 remote viewing
Date: 19.01.2023 17:17:32Author: Mario Da Rocha
Hello I have purchased a SRN-4000 and have set it all up. However I am struggling to put it into my phone to view it outside. I have it working on the ipolis app and Wisenet but only locally. It says about a dns or ip to get it to work outside but not sure how it works. Any possibility you could help troubleshoot?
Thanks Mario
