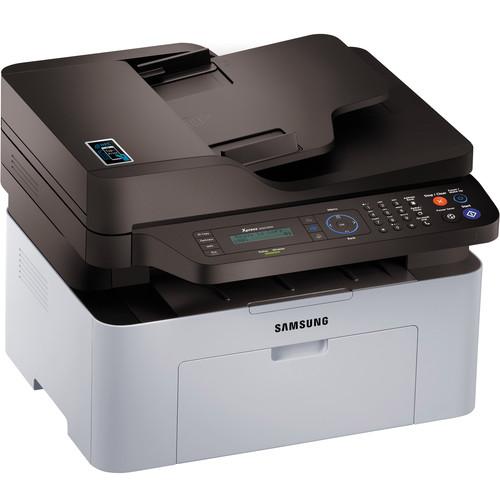

Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 124 USD
We recommend checking out our discussion threads on the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA, which address similar problems with connecting and setting up Laser Printers Samsung.



User manual for the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA

The user manual for the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

Quickly handle a variety of general document needs with the Xpress M2070FW All-in-One Monochrome Laser Printer from Samsung which is capable of printing, scanning, copying, and faxing. Printing benefits from a fast 21 ppm print engine with a max resolution of 1200 x 1200 dpi. The unit can also handle documents from 3 x 5" to 8.5 x 14" for added versatility. Manual duplex printing is also possible and the M2070FW can produce a first print in about 8.5 seconds.

Scanning via the flatbed or 40-sheet ADF allows for interpolated resolutions of up to 4800 x 4800 dpi, up from the optical resolution of 600 x 600 dpi. Scanning is also quite fast at a rate of up to 17 ipm and of good quality with a color depth of 24-bit and grayscale depth of 8-bit. The unit is also capable of copying at a rate of 21 cpm at up to 600 x 600 dpi.

A 33.6 Kbps modem is built-in for faxing features and the M2070FW has a 150-sheet input tray for standard paper handling. The monthly duty cycle allows for about 10,000 pages and the unit features both USB 2.0 and Wi-Fi connectivity.
If you own a Samsung laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA:
Printer
Printing Technology Laser
Maximum Resolution 1200 x 1200 dpi
Print Speed Black: 21 ppm
First Print Out Speed <8.5 seconds
Print Color Black
Compatible Toner Cartridges MLT-D111S: 1,000 pages
Duplex Printing Manual
Printer Duty Cycle Monthly: 10,000 pages
Scanner
Optical Resolution 600 x 600 dpi
Interpolated Resolution 4800 x 4800 dpi
Image Sensor Color CIS
Scan Speed 17 ipm
Bit Depth Color: 24-bit
Grayscale: 8-bit
Drivers Compatibility TWAIN, WIA
Scanner Features Scan to PC, network
Copier
Copy Resolution 600 x 600 dpi
Copy Speed 21 cpm
First Copy-Out Time <14 seconds
Copy Features ID copy, N-up copy
Fax
Modem Speed 33.6 Kbps
Memory 7 MB
Phone Support Yes, external interface
Compatibility ITU-T G3, ECM
Fax Features Speed dial, auto redial, on hook dial, last number redial, delayed fax, fax forward to fax/PC, junk fax barrier, auto reduction, TAD I/F, caller ID, distinctive ring, address book search
Media Handling
Paper Types Plain, envelope, labels, card stock, thick, thin cotton, color, pre-printed, recycled, bond, archive
Paper Sizes 3 x 5" to 8.5 x 14" (7.6 x 12.7 cm to 21.6 x 35.6 cm)
Media Weight 16-43 lb bond (60-163 gsm)
Paper Capacity Input Tray: 150 sheets
ADF: 40 sheets
Output Tray: 100 sheets
Connectivity
Display 2-line LCD
Interface USB 2.0
802.11b/g/n Wi-Fi
Wi-Fi Direct
Wireless Printing Features Samsung Mobile Print, NFC Tap & Print, Google Cloud Print, Apple AirPrint
OS Compatibility Windows XP, 2003, Vista, Server 2008, 7, 8, Server 2008 R2, Server 2012 (32/64-bit)
Mac OS X 10.5-10.9
Various Linux OS
Processor 600 MHz
Memory 128 MB
Printer Language SPL (Samsung Printer Language)
Network Protocols TCP/IPv4, DHCP, BOOTP, DNS, WINS, Bonjour, SLP, UPnP, Standard TCP/IP Printing (RAW), LPR, IPP, WSD, SNMPv 1/2/3, HTTP, IPSec, TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)
Network Security Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)
Encryption: WEP64, WEP128, TKIP, AES
General Attributes
Power Requirements 110-127 VAC, 50/60 Hz, 5.0 A
Power Consumption Operating: 310 W
Standby: 30 W
Sleep with Wi-Fi Direct: 2.5 W
Sleep: 2.3 W
Power Off: 0.45 W
Certifications ENERGY STAR
Acoustic Noise Ready: <26 db(a)
Printing: <50 db(a)
Copying/Scanning, Scanner Glass: <50 db(a)
Copying, ADF: <53 db(a)
Scanning, ADF: <54 dB(A)
Operating Conditions Temperature: 50 to 90°F (10 to 32°C)
Humidity: 20 to 80%, relative
Storage Conditions Temperature: -4 to 104°F (-20 to 40°C)
Humidity: 10 to 90%, relative
Dimensions (WxHxD) 16.0 x 14.2 x 12.2" (406 x 360 x 309 mm)
Weight 18.9 lb (8.5 kg)
Packaging Info
Package Weight 25.0 lb
Box Dimensions (LxWxH) 19.0 x 18.0 x 17.0"
The user manual for the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung laser printerss, where you can use our link to download the user manual for the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA.

The user manual lists all of the functions of the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung Xpress M2070FW All-in-One Monochrome SL-M2070FW/XAA. User manuals are also available on the Samsung website under Computers & Solutions - Printers & Accessories - Laser Printers.
