User manual for the Seagate 48TB (8 x 6TB) Business Storage 8-Bay STDP48000100
The user manual for the Seagate 48TB (8 x 6TB) Business Storage 8-Bay STDP48000100 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

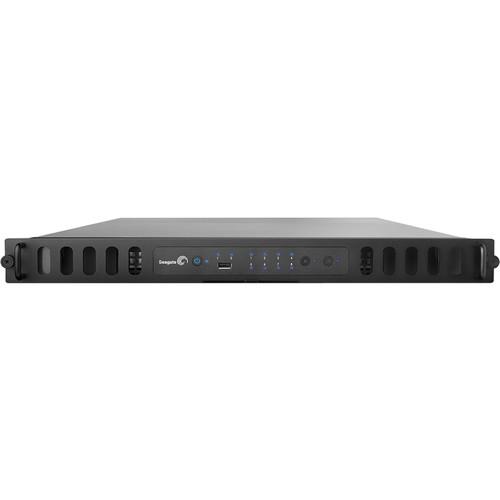

The 48TB (8 x 6TB) Business Storage 8-Bay Rackmount NAS from Seagate is a complete network storage solution designed to help keep businesses with up to 250 employees productive by creating a secure, shared space for file storage and backup. With its 8-bay design and a 1U form factor, this rackmount NAS is a suitable network storage solution for growing businesses.
This 8-bay rackmount NAS is builtwith enterprise-class hardware, both inside and out. It features 8 x 3.5" SATA III/II hot-swapable drive bays that are equipped with 48TB of storage using 8 x 6TB Seagate Constellation drives that are designed to run 24/7 and are more reliable than standard hard drives. With read and write speeds up to 200 MB/s, these drives can be configured into various RAID modes, such as 0, 1, 5, 6, 10, and hot spare. Seagate's SimplyRAID technology also helps to automatically manage installed drives to provide an optimal blend of capacity and redundancy.
This NAS runs using Seagate's NAS OS 4 which features a user-friendly, business-focused, and web-based interface. The OS is also optimized for NAS servers. Using Seagate's Sdrive or MyNAS apps, users can create a private cloud and connect to their NAS while away from the office. Built-in support for iSCSI enables maximum performance and compatibility for virtualized environments, while centralized backup supports PC and Mac systems, as well as Apple's Time Machine. It also features UPnP DLNA comptibility, a photo browser, audio streaming, and an iTunes (DAAP) server.
This 8-Bay Rackmount NAS is powered by a 2.3 GHz Intel Dual Core 64-bit processor with 4GB of DDR3 ECC RAM. Network connectivity can be achieved using dual Gigabit Ethernet ports with failover support, while connectivity options include three USB 2.0 ports, one VGA port, a male DE-9 serial port, and two PS/2 ports. It operates using dual 250W redundant and hot-swappable power supplies with failover support, each of which runs using 100-240 VAC at 50/60 Hz. Three hot-swappable fans help to ensure that the systems keeps cool.
The Seagate 48TB (8 x 6TB) Business Storage 8-Bay Rackmount NAS is compatible with Windows and Mac operating systems and requires a local area network (LAN), a wired router with an available 10/100/1000 Ethernet port, an Internet connection, and a web browser such as Internet Explorer, Firefox, Safari, or Chrome for use. Included is an Ethernet cable, two power cords, slide rails for rack mounting, a USB key with NAS OS, system utilities and documentation, a cable management arm (CMA), and a three month trial for Wuala secure cloud backup. This NAS is protected with a limited 3-year warranty.
If you own a Seagate network attached storage drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Seagate 48TB (8 x 6TB) Business Storage 8-Bay STDP48000100 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Seagate 48TB (8 x 6TB) Business Storage 8-Bay STDP48000100:
Specifications
Capacity
48 TB (8 x 6 TB)
Number of Drive Bays
8 x hot-swappable 3.5" SATA III 6 Gb/s and SATA II 3 Gb/s
Operating System
Seagate NAS OS 4 (embedded Linux)
Data Transfer Rates
Up to 200 MB/s reads and writes
Processor
2.3 GHz Intel Dual-Core (64-bit)
Memory
4 GB DDR3 ECC RAM
Networking
Two (2) 10/100/1000 Base-TX (Gigabit Ethernet)
External Ports
1 x USB 2.0 (front) 2 x USB 2.0 (rear) 1 x VGA (rear) 1 x PS/2 keyboard(rear) 1 x PS/2 mouse (rear) Male DE-9 serial (rear)
Power
100 to 240 VAC, 50/60 Hz, dual 250 W redundant power supplies
Power Supply and Power Management
Redundant hot-swap PSU
Sleep mode for power saving
Scheduled power on/off
Wake-on-LAN
Cooling Management
Three (3) hot-swappable fans
Network Protocols and Services
CIFS/SMB, NFS v3, AFP, HTTP(s), FTP, sFTP, iSCSI, Print serve, failover and load balancing (LACP 802.3ad), Sdrive file system integration (S:/ network drive), Active Directory
Certifications
VMware Ready
RAID
RAID 0, 1, 5, 6, 10
Hot spare
SimplyRAID technology with mixed capacity support, volume expansion, and migration
Management
Web-based interface through http/https
Hardware monitoring (S.M.A.R.T., casing cooling and temperature, CPU, and RAM load)
Log management and email notification
NAS OS Installer for diskless setup, data recovery, and restore to factory settings
Product discovery with Seagate Network Assistant
Media Streaming
UPnP DLNA A/V media adapter compatible
Photo browser and audio streaming through web interface
iTunes (DAAP) server
Backup Solution
PC to NAS: using client software (Time Machine, Windows Backup, etc.)
NAS to DAS: scheduled, automatic and restore
NAS to NAS: scheduled, encrypted, compressed, and automatic to local or remote NAS
Remote Access
Web-based
Android and iOS app
Sdrive Secure Cloud Service: Manage cloud, remote and local storage from a single interface; secure remote access from PC, Mac, iOS, and Android
Client OS Support
Windows 8, 7, and Vista (32 & 64-bit), XP, Server 2012, Server 2008 R2, Server 2008, Mac OS 10.6 and later
Supported Browsers
Latest version of Chrome, Firefox, and Safari; Internet Explorer 8, 9, and 10
Languages
English, Spanish, German, French, Italian, Dutch, Chinese Traditional, Chinese Simplified, Korean, Portuguese, and Russian
