User manual Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS

Operating instructions and pdf manual for use - Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS User manual, User manual Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS, Seagate, ST9500620SS, 500GB, SAS, 6Gb/s, 2.5, Hard, ST9500


User manual for Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS

Seagate ST9500620SS 500GB SAS 6Gb/s 2.5
  • Manufacturer: Seagate
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Seagate
  • Settings and expert assistance
  • Contact Seagate service
  • Troubleshooting
  • Warranty information
  • Price: 189 USD
We recommend checking out our discussion threads on the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS, which address similar problems with connecting and setting up Internal Drives Seagate.



User manual for the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS

The user manual for the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

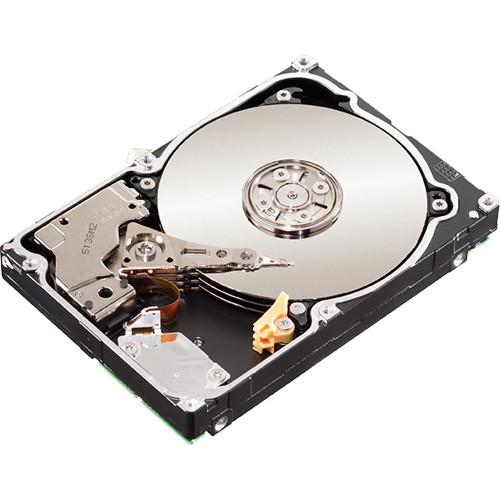

The ST9500620SS 500GB SAS 6Gb/s 2.5" Hard Disc Drive (OEM) from Seagate is an efficiently designed hard drive built to deliver. This 2.5" hard disc drive is not only eco friendly but versatile, as it provides the necessary storage for a variety of needs. The 2.5" design allows for easy integration into existing desktop or server configurations. You also benefit from the industry's highest reliability 7200-RPM drive designed for 24x7 operation with an MTBF of 1.4 million hours and AFT of 0.62%.

Whether you are running storage hungry business applications, or simply running your home PC; this Seagate Hard Drive will provide you the necessary hardware to quickly and efficiently backup and save your data. This drive is also compatible with various server and network configurations making this an effective drive for both "Storage Area Networks" and "Network Attached Storage" setups. Within those configurations you can utilize this drive in both maximum capacity servers as well as blade servers.
If you own a Seagate internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Seagate ST9500620SS 500GB SAS 6Gb/s 2.5Download user manual for Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS
(PDF file, 1.18 MB)
Additional parameters of the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS:
Specifications
    Reliability / Data Integrity
    Mean Time Between Failures 1.4 million (MTBF, hours)
    Reliability Rating @ Full 24x7 Operating (AFR): 0.62%
    Nonrecoverable Read Errors Per Bits Read: 1 sector per 10E15
    Power-On Hours Per Year: 8760
    Bytes per Sector 512, 520, 528
    Performance
    Spindle Speed 7200 RPM
    Cache Multisegmented: 64MB
    Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
    Max. Sustained Transfer Rate 115
    Seek Time, Average Read/Write 8.5/9.5
    Average Latency (ms) 4.16
    Interface Ports Dual Interface Port
    Interface Type SAS
    Rotational Vibration RV Tolerance (rad/s² to 1800Hz): 16
    Power Management
    Idle Power 3.27W
    Operating Typical Operating, Random Read: 3.27W
    Power Supply +12V and +5V
    Power PowerChoice Technology: As low as 1.87W
    Environmental
    Temperature Operating: 41-140°F (5-60°C)
    Vibration Operating <400hz (gs): 0.5
    Non Operating <500Hz (Gs): 3.0
    Shock Operating 2ms (Gs): 70
    Non Operating 1ms and 2ms (Gs): 400
    Acoustics Typical Idle (bels):2.2
    Typical Seek (bels):2.8
    Physical
    Dimensions (H x W x D) 0.591 x 2.760 x 3.955" (15.00 x 70.10 x 100.45 mm)
    Weight 0.403 lb / 0.183 kg
    Packaging Info
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 7.3 x 7.3 x 4.8"
    The user manual for the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Seagate users keep a unique electronic library for Seagate internal drivess, where you can use our link to download the user manual for the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS.

    The user manual lists all of the functions of the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Seagate service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Seagate ST9500620SS 500GB SAS 6Gb/s 2.5" Hard ST9500620SS. User manuals are also available on the Seagate website under Computers & Solutions - Drives & Storage - Internal Drives.
