User manual SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM

Operating instructions and pdf manual for use - SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM User manual, User manual SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM, SeaSonic, Electronics, G-Series, 550W, Modular, G-550, S


User manual for SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

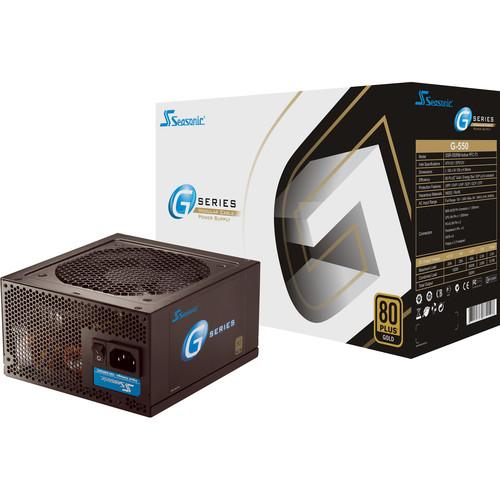

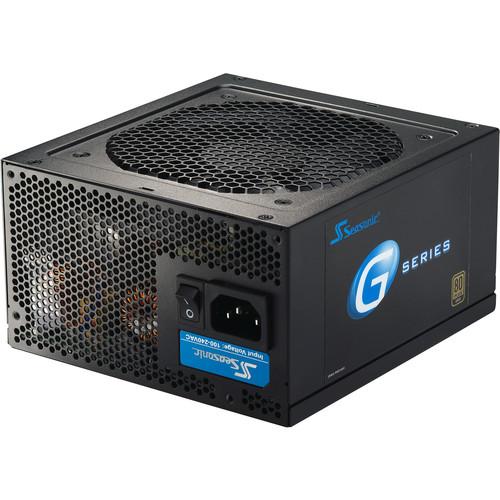

SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM
  • Manufacturer: SeaSonic Electronics
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Power Supplies
  • Safety instructions
  • Startup and operation of the power supplies
  • Tips for setting up your SeaSonic Electronics
  • Settings and expert assistance
  • Contact SeaSonic Electronics service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM
Click to enlarge image

We recommend checking out our discussion threads on the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM, which address similar problems with connecting and setting up Power Supplies SeaSonic Electronics.



User manual for the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM

The user manual for the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

The G-Series 550W Modular Cable Power Supply Unit from Sea Sonic Electronics offers reliability, low-noise operation, and the flexibility of modular cabling. This power supply operates at 100 to 240V at 50/60 Hz. It features a smart and silent fan that offers intelligent thermal control for balance between noise and cooling. The unit supports ATX12V and EPS12V standards and is also ErP Lot 6 Compliant.
If you own a SeaSonic Electronics power supplies and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM:
Specifications
Compliance Intel ATX12V / EPS12V
Efficiency 80 PLUS GOLD / Energy Star / ErP Lot 6 compliant
Protection Features Over Power Protection (OPP) / Over Voltage Protection (OVP)
Short Circuit Protection (SCP) / Under Voltage Protection (UVP)
Over Current Protection (OCP) / Over Temperature Protection (OTP)
Restriction on Hazardous Substances WEEE/RoHS
AC Input Range Full Range: 100 to 240 V (maximum 90 to 264 V), 8 to 4 A, 50/60 Hz
Connectors M/B 24/20 pin connector x 1 (550 mm)
CPU 8/4 pin connector x 1 (550 mm)
PCI-E 8/6 pin x 2
Peripheral 4 pin x 5
SATA x 6
Floppy x 2 (Y adapter)
Maximum Load 3.3 V: 20 A
5 V: 20 A
12 V: 45 A
-12 V: 0.3 A
5 Vsb: 2.5 W
Combined Wattage 3.3 V: 100 W
5 V: 100 W
12 V: 450 W
-12 V: 3.6 W
5 Vsb: 12.5 W
Total Output Power 450 W
Approvals and Certifications TUV, CB, PCT, CCC, FCC, CE, C-Tick, RoHS
Dimensions (L x W x H) 6.3 x 5.9 x 3.4" (16 x 15 x 8.6 cm)
Packaging Info
Package Weight 6.25 lb
Box Dimensions (LxWxH) 12.6 x 7.4 x 4.7"
The user manual for the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM can be downloaded in .pdf format if it did not come with your new power supplies, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SeaSonic Electronics users keep a unique electronic library for SeaSonic Electronics power suppliess, where you can use our link to download the user manual for the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM.

The user manual lists all of the functions of the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM, all the basic and advanced features and tells you how to use the power supplies. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SeaSonic Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SeaSonic Electronics G-Series 550W Modular G-550 SSR-550RM. User manuals are also available on the SeaSonic Electronics website under Computers & Solutions - Computer Components - Power Supplies.
