User manual Sekonic L-758Cine DigitalMaster Light Meter 401-760

Operating instructions and pdf manual for use - Sekonic L-758Cine DigitalMaster Light Meter 401-760 User manual, User manual Sekonic L-758Cine DigitalMaster Light Meter 401-760, Sekonic, L-758Cine, DigitalMaster, Light, Meter, 401-760,


User manual for Sekonic L-758Cine DigitalMaster Light Meter 401-760

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

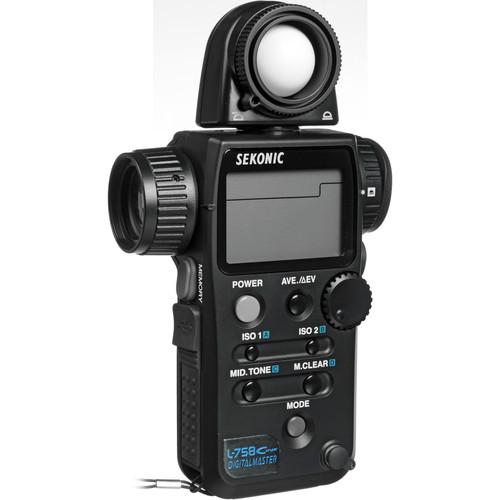

Sekonic L-758Cine DigitalMaster Light Meter 401-760
  • Manufacturer: Sekonic
  • Basic description and contents of package
  • Product classification: Photography - Photo Accessories - Light Meters
  • Safety instructions
  • Startup and operation of the light meters
  • Tips for setting up your Sekonic
  • Settings and expert assistance
  • Contact Sekonic service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD
We recommend checking out our discussion threads on the Sekonic L-758Cine DigitalMaster Light Meter 401-760, which address similar problems with connecting and setting up Light Meters Sekonic.



User manual for the Sekonic L-758Cine DigitalMaster Light Meter 401-760

The user manual for the Sekonic L-758Cine DigitalMaster Light Meter 401-760 provides necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

The Sekonic L-758Cine DigitalMaster Light Meter is the world's first multi-function light meter that can be programmed to match and be calibrated to the sensitivity of your digital camera sensor or type of film for perfect exposure control.  They have produced an incredible meter that more than meets the needs of the photographic community. This full-featured meter will definitely make everyone happy as it is loaded with every imaginable feature - and then some...
If you own a Sekonic light meters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sekonic L-758Cine DigitalMaster Light Meter 401-760 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sekonic L-758Cine DigitalMaster Light Meter 401-760Download user manual for Sekonic L-758Cine DigitalMaster Light Meter 401-760
(PDF file, 9.77 MB)
Additional parameters of the Sekonic L-758Cine DigitalMaster Light Meter 401-760:
Measuring System Dual digital exposure meter for ambient and flash light; 2-Silicon photo diodes (incident and reflected)
Measuring Modes Incident and reflected light;
  • Ambient: Aperture priority metering, Shutter speed priority metering, EV metering value
  • Flash: With synch cord (cumulative, non cumulative), Without synch cord (cumulative, non cumulative), With optional radio triggering (cumulative. Non cumulative)
  • Foot-Candle: 0.12 to 180,000
  • Lux: .063 to 190,000
  • Foot Lambert: 0.07 to 190,000
  • Cd/m2: 0.25 to 190,000
  • Receptor Head Rotating; Convertible to flat diffuser (Lumisphere in down position); 3.3' to infinity (1m to infinity); 1° spot with display in finder
    Aperture/Shutter Priority
  • Aperture priority metering, Shutter priority metering, EV metering
  • With synchro cord (cumulative and non-cumulative), Without synchro cord (cumulative and non-cumulative)
  • Measurement with built-in wireless flash triggering radio triggering system (cumulative and non-cumulative)
  • Display Readout
  • U (underexposure) or O (overexposure) indication
  • Auto illumination: EV 6 and under (custom setting function);
  • Diopter adjustment: -2.5 to 1.0d
  • ISO Range
  • Second ISO film speed setting: ISO 3 to 8000 (in 1/3 stop)
  • f/Stop Display Range Ambient Light
  • Incident light: -2 to 22.9EV
  • Reflected light: 1 to 24.4EV with 1° spot viewfinder
  • Repeat Accuracy: +/- 0.1 EV or less
    Flash
  • Incident light: f/0.5- f/161.2 (approx. f/175)
  • Reflected light: f/2.0 to f/161.2 (approx. f/175) with 1° spot viewfinder
    Aperture:
  • f/0.5 to f/161.2 (in 1, 1/2 or 1/3 stop)
    Analog Scale:
  • Aperture:
  • f/1.0 to f/128 (in 1/2 stop)
  • Shutter speed: 4 seconds to 1/4000 second (in 1/2 stop)
  • Shutter Speed - Ambient Ambient light: 30 minutes to 1/8000 seconds (in 1, 1/2 or 1/3 stop) plus 1/200, 1/400
    Shutter Speed - Flash Flash: 30 minutes to 1/1000 second (in 1, 1/2 or 1/3 stop) plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400
    EV Range (ISO-100) -9.9 to 46.6EV (in 1/10 stop)
    Cine Speeds
  • Speeds:1, 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 25, 30, 32, 36, 40, 48, 50, 60, 64, 72, 75, 90, 96, 100, 120, 125, 128, 150, 180, 200, 240, 250, 256, 300, 360, 375, 500, 625, 750, 1000 fps
  • Shutter Angle: 1 to 270° + 1, 2, 3, 4, 6, 7, 8, 9, 12, 17, 22, 144 and 172°
  • Exposure Memory 9 readings on analog scale (f/stop and shutter speed) with memory recall and clear feature
    Shadow/Highlight Calculation Yes
    Brightness Difference +/- 9.9 EV (in 1/10 stop)
    Flash to Ambient Ratio 0 to 100% in 10% increments
    Multiple Flash
  • Unlimited flash readings (only one digit is displayed when the cumulative number is ten or more)
  • Up to 9 readings can be averaged
  • Power Source
  • One CR123A battery (3V Lithium dry cell); 60 hours; With 3 level status icon;
  • Auto Power Off: 20 minutes after last use (10, 5 or no shut off in custom setting mode)
  • Operating temperatures: 14 to 122°F (-10 to 50°C)
  • Storage Temperature: -4 to 140°F (-20 to 60°C)
  • Weight 9.5 oz (268 gm) with battery
    Exposure Calibration
  • +/- 9.9 EV (in 1/10 stop)
  • Calibration compensation: +/- 1.0 EV (in 1/10 stop)
  • Specialties
  • JIS standard water resistance class 4, splash-proof type
  • 1/4" tripod socket for placing meter in subject area for cordless flash measuring
  • Dimensions 3.5 x 6.7 x 1.9" (90 x 170 x 48mm) (WHD)
    Packaging Info
    Package Weight 1.75 lb
    Box Dimensions (LxWxH) 10.2 x 6.5 x 3.7"
    The user manual for the Sekonic L-758Cine DigitalMaster Light Meter 401-760 can be downloaded in .pdf format if it did not come with your new light meters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sekonic users keep a unique electronic library for Sekonic light meterss, where you can use our link to download the user manual for the Sekonic L-758Cine DigitalMaster Light Meter 401-760.

    The user manual lists all of the functions of the Sekonic L-758Cine DigitalMaster Light Meter 401-760, all the basic and advanced features and tells you how to use the light meters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sekonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sekonic L-758Cine DigitalMaster Light Meter 401-760. User manuals are also available on the Sekonic website under Photography - Photo Accessories - Light Meters.
