User manual Sekonic Litemaster Pro L-478D Light Meter 401-478

Operating instructions and pdf manual for use - Sekonic Litemaster Pro L-478D Light Meter 401-478 User manual, User manual Sekonic Litemaster Pro L-478D Light Meter 401-478, Sekonic, Litemaster, Pro, L-478D, Light, Meter, 401-478,


User manual for Sekonic Litemaster Pro L-478D Light Meter 401-478

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sekonic Litemaster Pro L-478D Light Meter 401-478
  • Manufacturer: Sekonic
  • Basic description and contents of package
  • Product classification: Photography - Photo Accessories - Light Meters
  • Safety instructions
  • Startup and operation of the light meters
  • Tips for setting up your Sekonic
  • Settings and expert assistance
  • Contact Sekonic service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD
Sekonic Litemaster Pro L-478D Light Meter 401-478 Sekonic Litemaster Pro L-478D Light Meter 401-478 Sekonic Litemaster Pro L-478D Light Meter 401-478 Sekonic Litemaster Pro L-478D Light Meter 401-478 Sekonic Litemaster Pro L-478D Light Meter 401-478 Sekonic Litemaster Pro L-478D Light Meter 401-478
Click to enlarge image

We recommend checking out our discussion threads on the Sekonic Litemaster Pro L-478D Light Meter 401-478, which address similar problems with connecting and setting up Light Meters Sekonic.



User manual for the Sekonic Litemaster Pro L-478D Light Meter 401-478

The user manual for the Sekonic Litemaster Pro L-478D Light Meter 401-478 provides necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

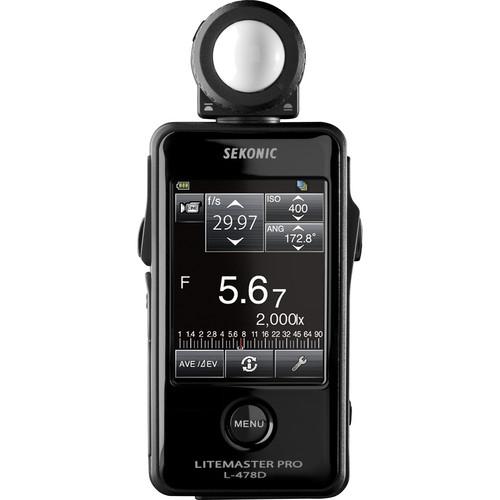

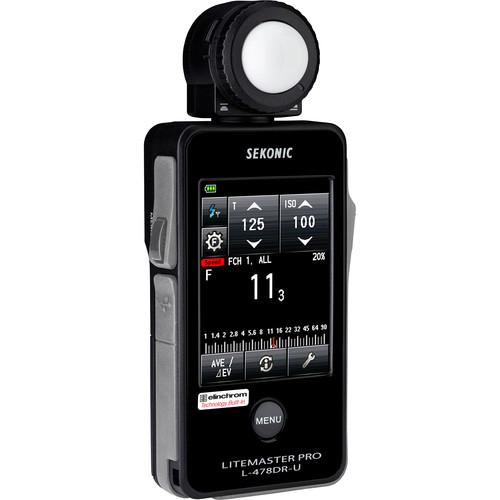

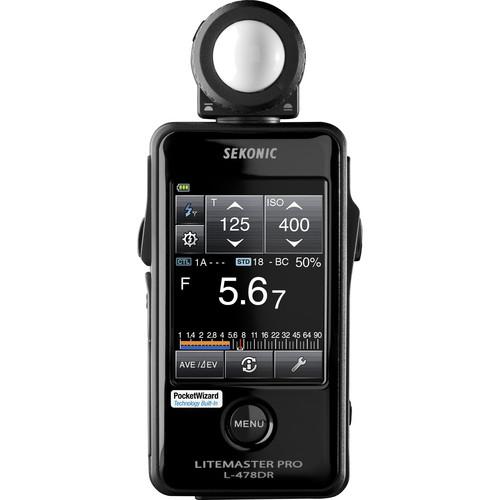

The Sekonic Litemaster Pro L-478D Light Meter is an incident and flash meter featuring a color touch screen interface. The touch screen-based navigation lends itself to a highly intuitive and efficient workflow, allowing you to quickly modify exposure settings and navigate menus. This meter is also highly versatile and capable of measuring flash, incident and reflected light for still, HD video, or cine applications.

The L-478D can be customized or adapted to your own specifications; depending on the metering modes you use most often, you can hide certain modes to create a more streamlined menu system. Exposure constants include shutter speed, f/-number, ISO, shutter angle, and frame rate; and the exposure variable can be decided upon depending on the situation you are working in. Illuminance and luminance values can also be taken, which are measured in footcandles/lux or candela per square meter/foot-lamberts, respectively. For more fine-tuned results, you can create and input personal profiles, allowing the meter to display exposure settings in accordance with your specific camera's dynamic range and clipping points.

Other settings available include the ability to memorize up to 10 different exposure readings in order to refer back for comparative overall measurements. The AVE/EV setting allows you to make one master exposure reading and have subsequent readings displayed as differential values based on the master exposure value. When working with flash metering, the flash exposure values can be expressed as a percentage of the flash-to-ambient light, giving you the ability to more easily alter and previsualize lighting ratios. Filter compensation and exposure compensation settings can also be applied in order to remove the necessity to apply different filter factors after a meter reading has been taken.
If you own a Sekonic light meters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sekonic Litemaster Pro L-478D Light Meter 401-478 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sekonic Litemaster Pro L-478D Light Meter 401-478Download user manual for Sekonic Litemaster Pro L-478D Light Meter 401-478
(PDF file, 8.08 MB)
Additional parameters of the Sekonic Litemaster Pro L-478D Light Meter 401-478:
Specifications
    Metering Method Incident light and reflected light (with optional attachment)
    Receptor Head Lumisphere convertible to flat diffuser (with retracted Lumisphere)
    Receptor Element Silicon photo diodes
    Measuring Modes Ambient: Aperture priority measuring, Shutter speed priority measuring, TF priority measuring, Cine measuring, HD Cine camera measuring, Illuminance measuring (lux, foot candle), Luminance measuring (foot-lambert, cdm2)
    Flash: Cord Mode (with/without multiple cumulative), Cordless Mode (with/without multiple cumulative)
    Measuring Range Ambient- Incident: EV -2 to 22.9 (approx. f/2 at 15 sec. to f/22.9 at 1/8000 sec.) / Reflected: EV 3 to 19.9
    Flash light- Incident: f/1.0 to f/128.9 / Reflected: f/2.8 to f/128.9
    Illuminance- 0.63 to 2,000,000 lux / 0.10 to 180,000 fc (EV -2 to 19.6)
    Luminance (Reflected Light)- 1 to 980,000 cdm2 (EV 3 to 22.9) / 0.29 to 290,000 fl (EV 1.5 to 22.9)
    Repeat Accuracy +/- 0.1 EV or less
    Calibration Constant Incident: Lumisphere C = 340, Flat C = 250
    Reflected: K = 12.5
    Power Source 2x AAA dry cell batteries (alkaline, manganese, lithium, nickel hydride, or nickel-based)
    Operating Temperature 14-122°F / -10-50°C (no condensation)
    Storage Temperature -4-140°F / -20-60°C (no condensation)
    Dimensions 2.2 x 5.5 x 1" / 57 x 140 x 26 mm
    Weight 4.6 oz / 130 g (without batteries)
    Packaging Info
    Package Weight 0.79 lb
    Box Dimensions (LxWxH) 8.5 x 5.9 x 2.0"
    Sekonic - Litemaster Pro L-478D Demo
    The user manual for the Sekonic Litemaster Pro L-478D Light Meter 401-478 can be downloaded in .pdf format if it did not come with your new light meters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sekonic users keep a unique electronic library for Sekonic light meterss, where you can use our link to download the user manual for the Sekonic Litemaster Pro L-478D Light Meter 401-478.

    The user manual lists all of the functions of the Sekonic Litemaster Pro L-478D Light Meter 401-478, all the basic and advanced features and tells you how to use the light meters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sekonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sekonic Litemaster Pro L-478D Light Meter 401-478. User manuals are also available on the Sekonic website under Photography - Photo Accessories - Light Meters.
