User manual for the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI

The user manual for the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

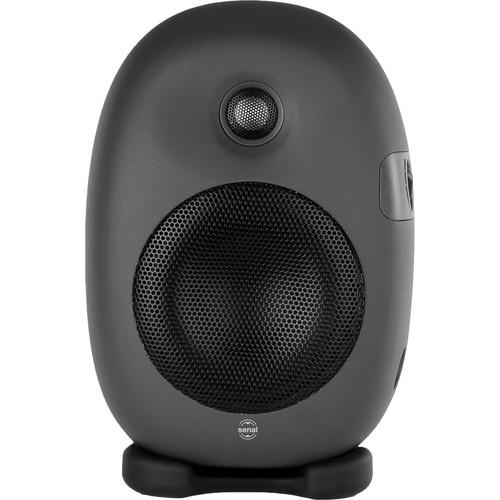

If you are looking for critical near-field monitoring suited for a variety of professional audio applications, check out the Senal ASM-5 Professional Two-Way Active 5" Studio Monitor Speaker Pair Kit from B&H. The ASM-5's ellipsoidal cabinet is engineered to keep diffraction and resonance to a minimum, resulting in exceptionally transparent sonic imaging, while allowing it to achieve maximum volume levels in a compact size. The cabinet is forged from rigid, high-intensity aluminum alloy to ensure consistent performance and durability. A rear-facing port and internal port tube provides expanded low-frequency output and minimizes distortion, for balanced and accurate monitoring.

The ASM-5 features a precision-engineered 70W power amplifier that drives a 5" composite woofer and a 0.8" metal dome tweeter for accurate transient response. Offering several adjustable parameters to compensate for room deficiencies, the speaker is equipped with fine-tune settings for the high, mid, and low frequencies. There is also a three-position high-pass filter for matching the speaker with a subwoofer. Additionally each ASM speaker is equipped with a volume control and power switch. An included rubber base isolates the speaker from its resting surface to prevent resonant coupling, making it easy to adjust the vertical angle of the speaker by +/- 15° to down fire or up fire.

This meticulous engineering allows the compact ASM-5 to deliver a wide dynamic range and flat frequency response with pristine audio reproduction and accurate stereo imaging, even at high sound pressure levels.
If you own a Senal studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI:
Specifications
    • 2 x Senal ASM-5 Professional Two-Way Active 5" Studio Monitor Speaker (Single)
      Speaker Type Professional monitor active-filter speaker system
      System Type Two-way vented
      Drivers 5.0" (127 mm) midwoofer
      0.8" (20.0 mm) metal dome tweeter
      Frequency Range 55 Hz to 20 kHz (±2.5 dB, free space)
      Maximum Sound Pressure Level (SPL) 110dB
      Total Harmonic Distortion (THD) 65 Hz to 20 kHz ≤1% (85 dB/1m)
      Rated Power 70 W RMS/channel
      Crossover Frequency 3.0 kHz
      Adjustment Range + 2, 0, -2 dB (200 Hz); Bass
      0, -2, -4 dB (500 Hz); Mid-low
      +1, 0, -1 dB (10 kHz); Treble
      High-Pass Filter 55, 65, 75 Hz
      Signal-to-noise >94 dB (unweighted)
      Input Sensitivity 350 mV
      Input Impedance 12,000 Ω
      Maximum Input 3,000 mV
      Power AC 110V-60Hz
      Finish High-intensity aluminum-alloy cabinet
      Dimensions 7.4 × 10.5 × 7.2" (188 × 267 × 182.9 mm)
      Weight 12.5 lb (5.7 kg)
      Packaging Info
      Box Dimensions (LxWxH) 17.5 x 11.0 x 11.0"
    The user manual for the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Senal users keep a unique electronic library for Senal studio monitorss, where you can use our link to download the user manual for the Senal ASM-5 Professional Two-Way Active 5" Studio ASM-5-KI.
