User manual Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6

Operating instructions and pdf manual for use - Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6 User manual, User manual Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6, Senal, ASM-6, Professional, Two-Way, Active, 6.5, Studio,


User manual for Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6

Senal ASM-6 Professional Two-Way Active 6.5
  • Manufacturer: Senal
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your Senal
  • Settings and expert assistance
  • Contact Senal service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6, which address similar problems with connecting and setting up Studio Monitors Senal.



User manual for the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6

The user manual for the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6 provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

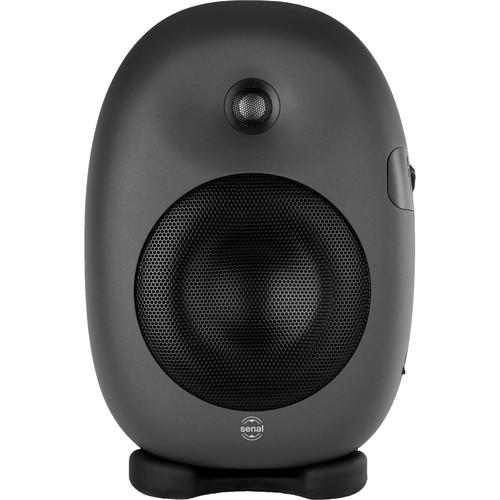

The Senal ASM-6 Professional Two-Way Active Studio Monitor is designed and crafted for critical near-field monitoring in professional audio applications.

The ASM-6's ellipsoidal cabinet is engineered to keep diffraction and resonance to a minimum, resulting in exceptionally transparent sonic imaging, while allowing it to achieve maximum volume levels in a compact size. The cabinet is forged from rigid, high-intensity aluminum alloy to ensure consistent performance and durability. A rear-facing port and internal port tube provides expanded low-frequency output and minimizes distortion, for balanced and accurate monitoring.

The ASM-6 features a precision-engineered 110W power amplifier that drives a 6.5" composite woofer and a 0.8" metal dome tweeter for accurate transient response. Offering several adjustable parameters to compensate for room deficiencies, the speaker is equipped with fine-tune settings for the high, mid, and low frequencies. There is also a three-position high-pass filter for matching the speaker with a subwoofer. Additionally each ASM speaker is equipped with a volume control and power switch. An included rubber base isolates the speaker from its resting surface to prevent resonant coupling, making it easy to adjust the vertical angle of the speaker by +/- 15° to down fire or up fire.

This meticulous engineering allows the compact ASM-6 to deliver a wide dynamic range and flat frequency response with pristine audio reproduction and accurate stereo imaging, even at high sound pressure levels.
If you own a Senal studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Senal ASM-6 Professional Two-Way Active 6.5Download user manual for Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6
(PDF file, 2.01 MB)
Additional parameters of the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6:
Specifications
    Speaker Type Professional monitor active-filter speaker system
    System Type Two-way vented
    Drivers 6.5" (165.1 mm) midwoofer
    0.8" (20.0 mm) metal dome tweeter
    Frequency Range 38 Hz to 20 kHz (±2.5 dB, free space)
    Maximum Sound Pressure Level (SPL) 115dB
    Total Harmonic Distortion (THD) 65 Hz to 20 kHz ≤1% (85 dB/1m)
    Rated Power 110 W RMS/channel
    Crossover Frequency 3.0 kHz
    Adjustment Range + 2, 0, -2 dB (200 Hz); Bass
    0, -2, -4 dB (500 Hz); Mid-low
    +1, 0, -1 dB (10 kHz); Treble
    High-Pass Filter 38, 48, 58 Hz
    Signal-to-noise >94 dB (unweighted)
    Input Sensitivity 350 mV
    Input Impedance 12,000 Ω
    Maximum Input 3,000 mV
    Power AC 110V-60Hz
    Finish High-intensity aluminum-alloy cabinet
    Dimensions 9.5 × 9.8 × 13.8" (240 × 248 × 350 mm)
    Weight 20.9 lb (9.5 kg)
    Packaging Info
    Package Weight 26.5 lb
    Box Dimensions (LxWxH) 20.0 x 13.5 x 13.5"
    The user manual for the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6 can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Senal users keep a unique electronic library for Senal studio monitorss, where you can use our link to download the user manual for the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6.

    The user manual lists all of the functions of the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Senal service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Senal ASM-6 Professional Two-Way Active 6.5" Studio ASM-6. User manuals are also available on the Senal website under Pro Audio - Recording - Studio Monitors.
