User manual for Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142
- Manufacturer: Senal
- Basic description and contents of package
- Product classification: Pro Audio - Installation Sound - Install Speakers
- Safety instructions
- Startup and operation of the install speakers
- Tips for setting up your Senal
- Settings and expert assistance
- Contact Senal service
- Troubleshooting
- Warranty information
- Price: 149 USD
|
We recommend checking out our discussion threads on the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142,
which address similar problems with connecting and setting up Install Speakers Senal.
|
User manual for the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142
The user manual for the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

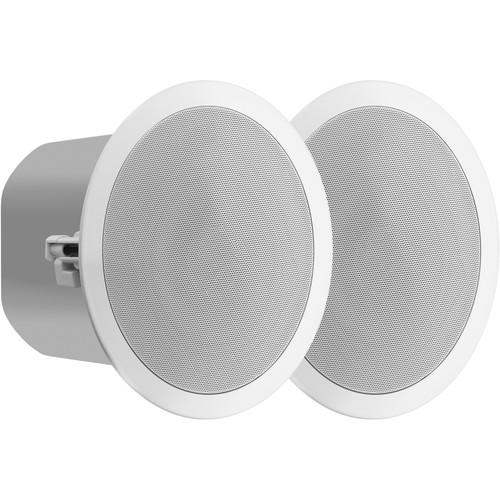

The CSP-142 80W 4" Premium 2-Way Ceiling Speaker System (Pair) from Senal is a pair of passive coaxial speakers that support 70V, 100V, or low-ohm systems. It is designed to provide up to 80W of playback with low distortion for a variety of both commercial and residential applications.
It features a multi-tap transformer whose control is located directly on the front baffle of the speaker for easy access once installed, allowing you to adjust the wattage as well as bypass the transformer for use in a low impedance configuration. The CSP-142 has a 4" woofer and a 3/4" titanium-coated tweeter. The speaker has a sealed backcan, which enhances fidelity by preventing sound from being distributed into the ceiling. Additionally, a vented port helps improve low frequency response. The speaker has a low clearance of 6.25", allowing it to be installed in smaller spaces. The mounting bracket allows for easy installation in fixed ceilings, while the included drop-ceiling mounting hardware allows you to install the CSP-142 in a drop ceiling configuration as well.
|
If you own a Senal install speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142:
| Input Connections | Removable locking connector with screw-down terminals | | Frequency Response | 80 Hz to 20 kHz | | Power Capacity | 80 W | | Maximum SPL | 85 dB SPL, 1 W @ 1 m | | Transformer Tap | 70 V: 30, 15, 7.5, 3.7 W
100 V: 30, 15, 7.5 W
16 ohms transformer bypass | | Coverage Angle | 130° | | Low Frequency Driver | 4" (102 mm) | | High Frequency Driver | 0.75" (19 mm) | | Speaker Impedance | 16 ohms | | Dimensions (H x W) | 6.25 x 7" (159 x 178 mm)
Width with Rim: 8.5" (216 mm) | | Weight | 4.95 lb (2.25 kg) | | Package Weight | 18.75 lb | | Box Dimensions (LxWxH) | 27.0 x 11.0 x 10.0" | |
The user manual for the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142 can be downloaded in .pdf
format if it did not come with your new install speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Senal users keep a unique electronic library
for Senal install speakerss,
where you can use our link to download the user manual for the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142.
The user manual lists all of the functions of the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142,
all the basic and advanced features and tells you how to use the install speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Senal service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Senal CSP-142 80W 4" Premium 2-Way Ceiling Speaker CSP-142. User manuals are also
available on the Senal website under Pro Audio - Installation Sound - Install Speakers.
