User manual Sennheiser ME66 - Short Shotgun Mic Capsule ME66

Operating instructions and pdf manual for use - Sennheiser ME66 - Short Shotgun Mic Capsule ME66 User manual, User manual Sennheiser ME66 - Short Shotgun Mic Capsule ME66, Sennheiser, ME66, Short, Shotgun, Mic, Capsule, ME66, Video


User manual for Sennheiser ME66 - Short Shotgun Mic Capsule ME66

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

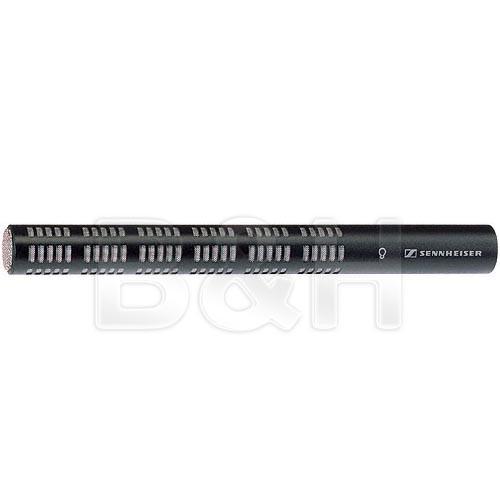

Sennheiser  ME66 - Short Shotgun Mic Capsule ME66
  • Manufacturer: Sennheiser
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Modular Microphone Components
  • Safety instructions
  • Startup and operation of the modular microphone components
  • Tips for setting up your Sennheiser
  • Settings and expert assistance
  • Contact Sennheiser service
  • Troubleshooting
  • Warranty information
  • Price: 204 USD
We recommend checking out our discussion threads on the Sennheiser ME66 - Short Shotgun Mic Capsule ME66, which address similar problems with connecting and setting up Modular Microphone Components Sennheiser.



User manual for the Sennheiser ME66 - Short Shotgun Mic Capsule ME66

The user manual for the Sennheiser ME66 - Short Shotgun Mic Capsule ME66 provides necessary instructions for the proper use of the product Pro Audio - Recording - Modular Microphone Components.

The Sennheiser ME66 capsule is a popular short shotgun microphone for use with the K6 or K6P power supplies. The modular design of K6-series microphones provide the freedom to adapt compatible capsules when necessary. The ME66 capsule is sold separately to accommodate those who may already own either of the K6 power supplies.
If you own a Sennheiser modular microphone components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser ME66 - Short Shotgun Mic Capsule ME66 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sennheiser  ME66 - Short Shotgun Mic Capsule ME66Download user manual for Sennheiser ME66 - Short Shotgun Mic Capsule ME66
(PDF file, 0.4 MB)
Additional parameters of the Sennheiser ME66 - Short Shotgun Mic Capsule ME66:
Transducer Condenser
Polar Pattern Supercardioid
Frequency Response 40 Hz - 20 kHz, (+/- 2.5 dB)
Dynamic Range (Typical) 115 dB
Signal-to-Noise Ratio 84 dB
Maximum Input Sound Level 125 dB, (@ 1 kHz, THD = 1%)
Power Requirements Supplied by K6 or K6P Power Modules (Optional)
Output Impedance 200 Ohms (with K6)
Output Connectors Attaches (Screws-On) to the K6, or K6P Powering Module
Pad None
Low Frequency Roll-Off None on Capsule, Bass Roll-Off filter is Found on K6, or K6P Power Modules
Applications Field recording, interviews, film, video and broadcast production.
Dimensions 8.7 x .885" (221 x 22.5mm) LxDiameter
Weight 2.32 oz. (65 g)
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 9.9 x 1.7 x 1.7"
The user manual for the Sennheiser ME66 - Short Shotgun Mic Capsule ME66 can be downloaded in .pdf format if it did not come with your new modular microphone components, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sennheiser users keep a unique electronic library for Sennheiser modular microphone componentss, where you can use our link to download the user manual for the Sennheiser ME66 - Short Shotgun Mic Capsule ME66.

The user manual lists all of the functions of the Sennheiser ME66 - Short Shotgun Mic Capsule ME66, all the basic and advanced features and tells you how to use the modular microphone components. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sennheiser service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sennheiser ME66 - Short Shotgun Mic Capsule ME66. User manuals are also available on the Sennheiser website under Pro Audio - Recording - Modular Microphone Components.
