User manual Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48

Operating instructions and pdf manual for use - Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48 User manual, User manual Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48, Sennheiser, MKH-416, Short, Shotgun, Interfere


User manual for Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

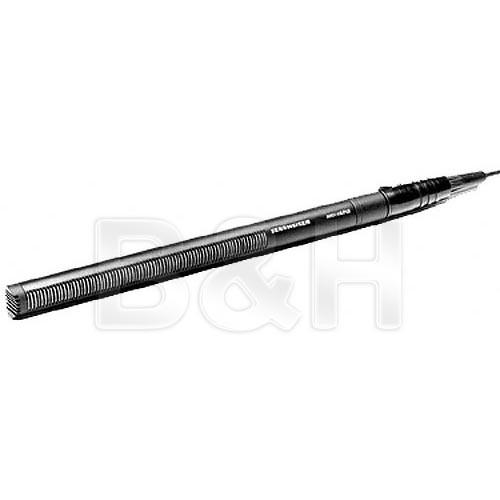

Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48
  • Manufacturer: Sennheiser
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Shotgun
  • Safety instructions
  • Startup and operation of the shotgun
  • Tips for setting up your Sennheiser
  • Settings and expert assistance
  • Contact Sennheiser service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD
We recommend checking out our discussion threads on the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48, which address similar problems with connecting and setting up Shotgun Sennheiser.



User manual for the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48

The user manual for the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Shotgun.

Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
If you own a Sennheiser shotgun and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48Download user manual for Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48
(PDF file, 6.74 MB)
Additional parameters of the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48:
Transducer Pressure Gradient/Interference Receiver Condenser
Polar Pattern Low, Mid: Hypercardioid Above 2 kHz: Lobar
Frequency Response 40 to 20,000 Hz
Dynamic Range (Typical) 117 dB
Signal-to-Noise Ratio 81 dB
Maximum Input Sound Level 130 dB, (@ 1 KHz)
Sensitivity 25 mV/Pa +/- 1dB
Power Requirements Phantom Power 48v, (± 12v)
Output Impedance Nominal Impedance: 25 Ohms
Minimum Terminating Impedance: 800 Ohms
Output Connectors XLR-3M Type
Pad None
Low Frequency Roll-Off None
Applications Film, Radio and Television, Especially for Outside Broadcast Applications.
Dimensions (L x Diam) 9.84 x 0.74" (250 x 19 mm)
Weight 5.82 oz (175 g)
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 13.9 x 5.4 x 2.6"
The user manual for the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48 can be downloaded in .pdf format if it did not come with your new shotgun, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sennheiser users keep a unique electronic library for Sennheiser shotguns, where you can use our link to download the user manual for the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48.

The user manual lists all of the functions of the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48, all the basic and advanced features and tells you how to use the shotgun. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sennheiser service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sennheiser MKH-416 - Short Shotgun Interference Tube MKH416-P48. User manuals are also available on the Sennheiser website under Pro Audio - Location Sound - Shotgun.
