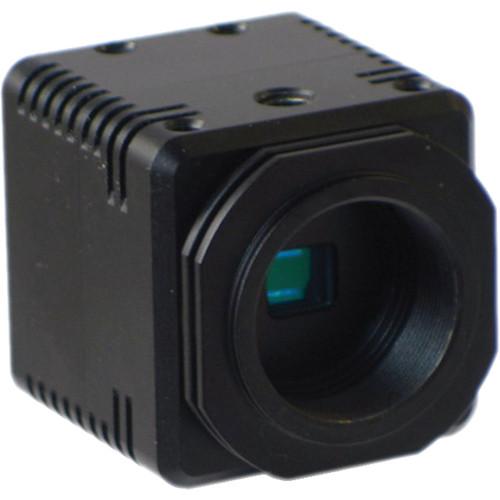

The Sentech STC-HD133DV-CS DVI CCD Color Camera is ideal for applications requiring direct-connect monitor viewing with high-definition resolution. This CCD based camera outputs true HD 720p, 16 x 9 images at 60 fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera pushbutton for manual control. The STC-HD133DV-CS also boasts an ultra-compact size.
If you own a Sentech wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sentech STC-HD133DV-CS DVI CCD Color Camera STC-HD133DV-CS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sentech STC-HD133DV-CS DVI CCD Color Camera STC-HD133DV-CS:
Specifications
    Imager 1/3" Interline SXGA CCD: ICX445AQA
    Picture Element HD active: 1280 (H) x 720 (V)
    Chip Size 6.26 (H) x 5.01 (V) mm
    Cell Size 3.75 (H) x 3.75 (V) μm
    Scene Illumination Minimum: 5 lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter
    Resolution 600 TV Lines
    Sync System Internal
    Video Output DVI 1.0 compliant; RGB, 1280 (H) x 720 (V); 60 Hz / 59.94 Hz / 50 Hz
    Automatic Light Compensation (ALC) Can be configured via the UART communication, with Optical Iris, Auto Electronic Shutter, and AGC
    Shutter Speed Adjustable shutter speed via the UART Communication; Up to 1/100,000 seconds at 60 Hz / 59.94 Hz or up to 1/83,947 seconds at 50 Hz
    Gain AGC or Fixed gain, selectable via the UART communication; Gain range: 0 to 18.3 dB
    Digital: Up to 5.9866 dB
    Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication
    White Balance Auto / Manual / Push-to-set; selectable via the UART communication
    Mirror Image Normal Image and Horizontal Flip are selectable mirror image via the UART communication
    Presets DSP: 28 DSP presets; Selectable picture mode via the UART communication
    Generators Line Generator: Both horizontal and vertical available with all colors; Thickness adjustable via the UART communication
    Shadow Mask Generator: Horizontal and vertical with shading level adjustment via the UART communication
    Communication +3.3 V UART communication via 3.5ф stereo jack
    Character Generator Built-in character generating function via the UART communication
    Pixel Blemish Collection Up to 64 pixel blemish static collection
    Optical Filter IR cut filter included
    Lens Mount CS mount
    Interface Connector Video Output: HDMI connector
    Power Input: 12V power jack; 2.1mm DC barrel power jack plug w/ center pin position
    External Control: 3.5ф stereo jack with SW board
    Communication: 3.5ф stereo jack
    Button Primary SW Initial press button function: push-to-set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication)
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -22 to 149°F (-30 to 65°C)
    Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration: 10G, 30 min., XYZ each directions
    Shock Acceleration: 38G, half amplitude 6 ms, 3 times XYZ each directions
    Standard Compliance EMS: EN61000-6-2, EMI: 55011
    RoHS RoHS compliant
    Power
    Input Voltage 9 to 15 VDC (Typical: 12 VDC)
    Consumption < 3.0 W
    Dimensions (W x H x D) 1.57 x 1.57 x 1.8" (40 x 40 x 45.8 mm)
    Weight Approximately 4.23 oz (120 g)
