User manual for the Sharp XL-HF102B Hi-Fi Component System XLHF102B
The user manual for the Sharp XL-HF102B Hi-Fi Component System XLHF102B provides
necessary instructions for the proper use of the product TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.

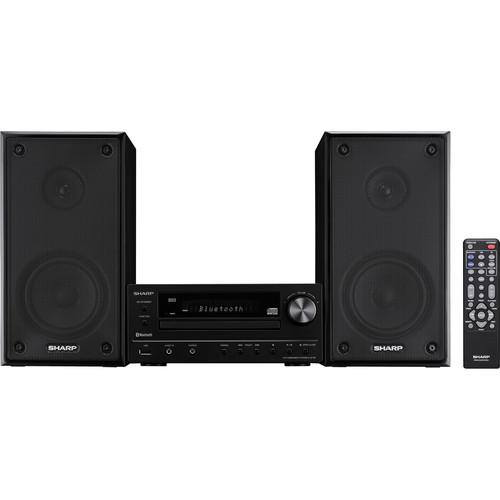

Consisting of two speakers and a main control unit, the Sharp XL-HF102B Hi-Fi Component System offers 50W of total power from two 2-way speakers. Bluetooth audio streaming is also provided by the XL-HF102B, allowing you to play music wirelessly from your smartphone or tablet. The system has a USB input for playing music from a thumb drive or a wired Android device. It has a built-in CD player and AM/FM tuners, and includes a remote control.
|
If you own a Sharp mini hi-fi systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sharp XL-HF102B Hi-Fi Component System XLHF102B in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sharp XL-HF102B Hi-Fi Component System XLHF102B:
| Power Rating | 50 W total RMS
25 W per channel RMS | | No. of Channels | 2 | | AM/FM Tuner | Yes | | AM/FM Presets | 40 | | Playback Format | MP3 & WMA | | Tray Type | Single tray | | Bluetooth | Bluetooth 2.1+EDR | | Bluetooth Frequency | 2.400 to 2.480 GHz | | Supported Bluetooth Profiles | A2DP, AVRCP | | Input | 1 x ⅛" (3.5 mm) audio in
1 x RCA stereo line in
1 x USB in, supports Android Open Accessory
1 x antenna in | | Output | 1 x RCA subwoofer out
1 x ⅛" (3.5 mm) headphone out
2 x speaker out | | Subwoofer Output | 200 mV / 10 kOhms @ 70 Hz | | Audio Input Signal | 500 mV / 47 kOhms | | Line In | 500 mV / 47 kOhms | | Headphone Impedance Range | 16 to 50 Ohms | | Recommended Headphone Impedance | 32 Ohms | | Radio Frequency | FM: 87.5 to 108.0 MHz
AM: 530 to 1710 kHz | | Remote Control | Yes | | Power Consumption (Active) | 22 W | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions (WxHxD) | 8.5 x 3.8 x 11.3" (21.6 x 9.6 x 28.5 cm) | | Weight | 4.6 lb (2.1 kg) | | Configuration | 2 x 2-Way | | Speaker Type | Bookshelf | | Drivers | Tweeter: 2.0" (5.0 cm)
Woofer: 4.0" (10.0 cm) | | Frequency Response | 20 Hz to 20 kHz | | Impedance | 6 Ohms | | Dimensions (W x H x D) | 5.5 x 10.4 x 6.1" (14.0 x 26.4 x 15.4 cm) per speaker | | Weight | 3.7 lb (1.7 kg) per speaker | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 14.0" | |
The user manual for the Sharp XL-HF102B Hi-Fi Component System XLHF102B can be downloaded in .pdf
format if it did not come with your new mini hi-fi systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sharp users keep a unique electronic library
for Sharp mini hi-fi systemss,
where you can use our link to download the user manual for the Sharp XL-HF102B Hi-Fi Component System XLHF102B.
The user manual lists all of the functions of the Sharp XL-HF102B Hi-Fi Component System XLHF102B,
all the basic and advanced features and tells you how to use the mini hi-fi systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sharp service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sharp XL-HF102B Hi-Fi Component System XLHF102B. User manuals are also
available on the Sharp website under TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.
