User manual Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K

Operating instructions and pdf manual for use - Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K User manual, User manual Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K, Shinybow, 1x4, 4K2K, HDMI, Distribution, Amplifier, SB-5654K,


User manual for Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K

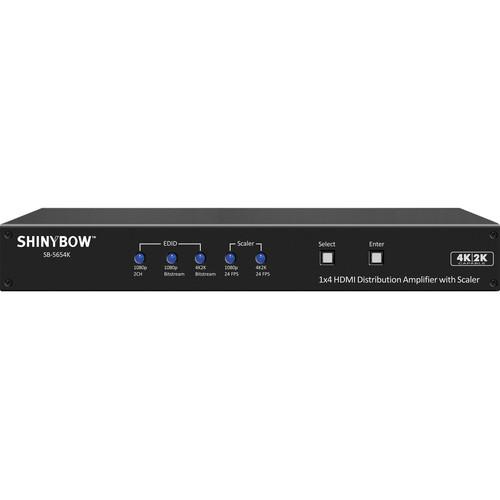

Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K
  • Manufacturer: Shinybow
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's)
  • Safety instructions
  • Startup and operation of the distribution amplifiers (da's)
  • Tips for setting up your Shinybow
  • Settings and expert assistance
  • Contact Shinybow service
  • Troubleshooting
  • Warranty information
  • Price: 265 USD
We recommend checking out our discussion threads on the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K, which address similar problems with connecting and setting up Distribution Amplifiers (DA's) Shinybow.



User manual for the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K

The user manual for the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).

Distribute a 4K video signal to 4 displays over longer distances. The 1x4 HDMI 4K2K, from Shinybow, supports up to Ultra HD 4K resolution and features a signal booster that lets you use up to 65 ft cables for outputting Ultra HD signals, and up to 98 ft for 1080p signals.

You can also upscale 1080p to Ultra HD and downscale Ultra HD to 1080p. Additionally, select from three EDID modes for audio/video compatibility across a wider variety of displays.
If you own a Shinybow distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K:
Input 1x HDMI 1.4a type A female
Output 4x HDMI 1.4a type A female
Supported Video 4K Ultra HD (UHD)
1080p
1080i
720p
480p
480i
3D video
Up to 36-bit deep color
Supported Audio 5.1, 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, PCM-2CH
Bandwidth Double Data Rates: 340 MHz
Total: 6.75 Gbps
HDCP Compliant HDCP 2.2 compliant
Scaling Ultra HD 4K @ 24fps can be downscaled to 1080p24
1080p24 can be downscaled to Ultra HD 4K @ 24fps
HDMI Signal Boost 1080p: 98 ft (30 m)
Ultra HD 4K: 65 ft (20 m)
IR Frequency 38 KHz
Power Supply 12 VDC, 2A (included)
100 - 240 VAC 50/60Hz (universal switch type power supply)
CEC Compliant Yes
Safety Approvals CE, FCC, REACH
Operating Temperature 32 to 100°F (0 to 32°C)
Dimensions 8.1 x 4.5 x 1" (21 x 11 x 2.5 cm)
Weight 3 lb (1.35 kg)
Packaging Info
Package Weight 3.6 lb
Box Dimensions (LxWxH) 11.339 x 10.079 x 2.756"
The user manual for the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K can be downloaded in .pdf format if it did not come with your new distribution amplifiers (da's), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow distribution amplifiers (da's)s, where you can use our link to download the user manual for the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K.

The user manual lists all of the functions of the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K, all the basic and advanced features and tells you how to use the distribution amplifiers (da's). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow 1x4 4K2K HDMI Distribution Amplifier SB-5654K. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).
