User manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R

The user manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

The SB-6320R HDMI 100m Extender HDBaseT Receiver by Shinybow is an HDMI Version 1.4 extender that supports audio formats such as Dolby True HD, DTS-master and all seven types of 3D. This receiver is compatible with CAT5/5e/6/6a/7 and is designed to support full 3D at 1080p at a distance of up to 330'. The SB-6320R receiver supports high definition video and audio as well as bi-directional IR, RS-232 and Ethernet.

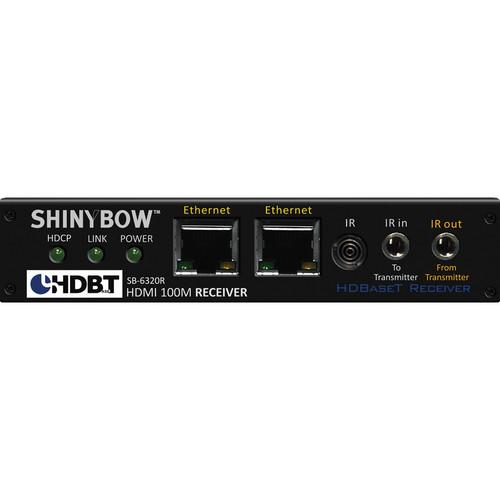

The front panel LED status display indicates a valid HDMI source, the connection between the transmitter and receiver and power. This receiver also supports DVI TMDS 1920x1200 format with the use of an external adapter (not included). The audio output jack can provide audio from your DVI audio input or extract the audio from your HDMI signal. It comes with built-in mounting tabs for surface mounting.
If you own a Shinybow video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R:
Extender HDBaseT transmitter for HDMI signal over category UTP/STP cable
Input Signals HDMI with digital video(TMDS) / audio 0.5 - 1.0 vPP, DDC 5 Vpp
Signal Support HDBaseT HDMI 1.4a HDMI format standard, DVI and HDCP compliant
Video Support HDMI and DVI TMDS format for 1920 x 1200 resolution up to 10.2 Gbps (340 MHz), digital RGB 48 bits/px, deep color, 3D
HDMI Audio I/O Supports Multi audio formats 5.1/7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Extra DVI Audio Input HDBaseT transmitter input signal: stereo audio (3.5 mm OD Jack)
S/PDIF Audio Output HDBaseT receiver output signal: S / PDIF (PCM-2CH, RCA connector)
Cable Support CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable
HDMI Resolutions 480p, 720p and 1080i / 1080p
Scan Rate HDMI resolution; frequency 24 - 240 Hz
Controls 1x IR in, 1x IR out, 1x Rs232 I/O and 2x LAN series interface
Transfer Distance Up to 330' (100 m)
HDMI I/O Connectors HDMI type A - SMD 19-pin female
I/O Connectors HDBaseT RJ-45, 8p8c female socket
Safety Approvals CE, FCC, VCCI ,REACH
Power Consumption Maximum 750 mA (full load 1080 p - 60 Hz signal with use 12 VDC input)
Power Supply Power input +12 VDC, 2 A (universal type 50 / 60 Hz, 100 - 240 VAC)
Dimensions (L x W x H) 5.31 x 5.11 x 1" (135 x 130 x 26 mm)
Weight 2 lb (907 g)
Packaging Info
Package Weight 3.0 lb
The user manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow video extenders & repeaterss, where you can use our link to download the user manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R.

The user manual lists all of the functions of the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-6320R. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
