User manual for the Shure GLXD1 Bodypack Transmitter GLXD1-Z2
The user manual for the Shure GLXD1 Bodypack Transmitter GLXD1-Z2 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Transmitters.

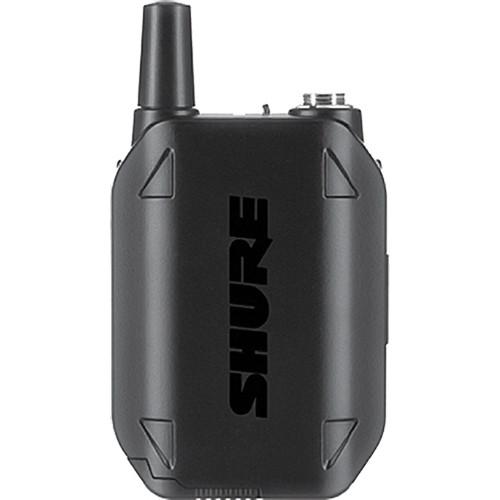

The GLXD1 Bodypack Transmitter from Shure is designed to work with Shure's GLX-D series digital wireless systems. It operates on Shure's Z2 frequency band between 2400 and 2483.5 MHz on a 2.4 GHz ISM wireless band. The transmitter provides up to a 200' range of operation and features Shure's LINKFREQ automatic frequency management that allows it to automatically link to a GLX-D compatible transmitter without having to perform any setup. It includes a rechargeable battery pack that provides up to 16 hours of performance time per charge. The battery can be recharged with the included USB charger cable. A 15-minute charge can provide up to 1.5 hours of performance time. The GLXD1 has a 4-pin TA4M connector and is compatible with both lavalier microphones as well as instrument cables with a proper adapter.
|
If you own a Shure wireless transmitters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Shure GLXD1 Bodypack Transmitter GLXD1-Z2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Shure GLXD1 Bodypack Transmitter GLXD1-Z2:
| Connector | 1x Unbalanced 4-pin TA4M male mini-connector | | Tuning Frequency Range | 2400 to 2483.5 MHz | | Range of Operation | 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) | | Transmit Mode | Frequency Hopping | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 120 dB, A-weighted | | RF Sensitivity | -88 dBm, typical | | Total Harmonic Distortion | 0.2%, typical | | RF Output | 10 mW E.I.R.P, maximum | | Operating Temperature Range | 0° to 135°F (-18° to 57°C) | | Storage Temperature Range | -20° to 165°F (-29° to 74°C) | | Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output | | Battery Life | Up to 16 hours | | Power Requirements | 3.7 V Rechargeable Li-Ion | | Input Impedance | 900 kΩ | | RF Output | 10 mW E.I.R.P. maximum | | Maximum Input Level | 1 kHz at 1% THD
8.4 dBV (7.5 Vp-p) | | Antenna | Internal Monopole | | Pin Configuration | 1: ground (cable shield)
2: +5 V bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) | | Housing | Cast Metal | | Dimensions (H x W x D) | 3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antenna | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 11.024 x 5.433 x 3.228" | |
