User manual Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C

Operating instructions and pdf manual for use - Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C User manual, User manual Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C, Shure, MX393/C, Microflex, Cardioid, Boundary, Micro


User manual for Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

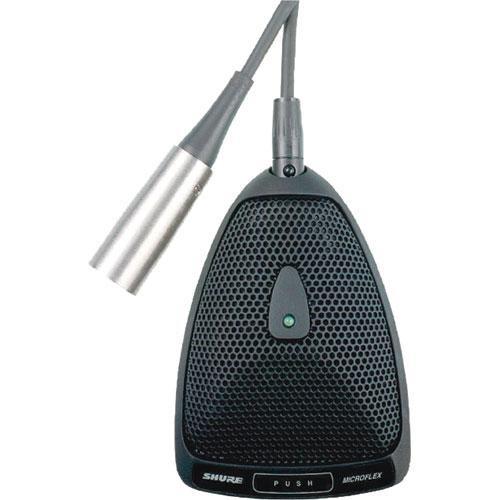

Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Boundary
  • Safety instructions
  • Startup and operation of the boundary
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 232 USD
Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C
Click to enlarge image

We recommend checking out our discussion threads on the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C, which address similar problems with connecting and setting up Boundary Shure.



User manual for the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C

The user manual for the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Boundary.

The MX393 from Shure is a surface-mounted, electret condenser microphone. It is designed to be mounted on conference tables, stage floors, and lecterns. Its high sensitivity and wide frequency range makes it especially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises. A removable microphone cable and an internal preamplifier are included.

MX393 series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles. When placed near a sufficiently large boundary surface, the microphone has 6 dB higher sensitivity and approximately 3 dB greater direct-to-reverberant sound ratio.
If you own a Shure boundary and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Shure MX393/C Microflex Cardioid Boundary Microphone MX393/CDownload user manual for Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C
(PDF file, 14.3 MB)
Additional parameters of the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C:

Go To

Transducer Electret Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 17 kHz
Signal to Noise Ratio 71 dB
Equivalent Noise Level 23 dB A-Weighted
Maximum SPL 119 dB SPL 1%
Impedance 180 ohms
Sensitivity -30 dB, re: 1 V/Pa
Power Requirements 11-52 V
Output Connectors 3-pin XLR
Operating Relative Humidity 0 to 95%
Operating Temperature 0 to 135°F (-17.78 to 57.22°C)
Storage Temperature -20 to 165°F (-28 to 73.89°C)
Operating Current Consumption 2 mA
Dynamic Range 96 dB
General
Length 4.264" (108.31 mm)
Weight 0.38 lb (172 g)
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 9.842 x 4.882 x 3.15"
The user manual for the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C can be downloaded in .pdf format if it did not come with your new boundary, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure boundarys, where you can use our link to download the user manual for the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C.

The user manual lists all of the functions of the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C, all the basic and advanced features and tells you how to use the boundary. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure MX393/C Microflex Cardioid Boundary Microphone MX393/C. User manuals are also available on the Shure website under Pro Audio - Installation Sound - Boundary.
