User manual Shure SCM410 4 Channel Automatic Mixer SCM410

Operating instructions and pdf manual for use - Shure SCM410 4 Channel Automatic Mixer SCM410 User manual, User manual Shure SCM410 4 Channel Automatic Mixer SCM410, Shure, SCM410, 4, Channel, Automatic, Mixer, SCM410, Video


User manual for Shure SCM410 4 Channel Automatic Mixer SCM410

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Shure  SCM410 4 Channel Automatic Mixer SCM410
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Mixers
  • Safety instructions
  • Startup and operation of the install sound mixers
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 689 USD
We recommend checking out our discussion threads on the Shure SCM410 4 Channel Automatic Mixer SCM410, which address similar problems with connecting and setting up Install Sound Mixers Shure.



User manual for the Shure SCM410 4 Channel Automatic Mixer SCM410

The user manual for the Shure SCM410 4 Channel Automatic Mixer SCM410 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

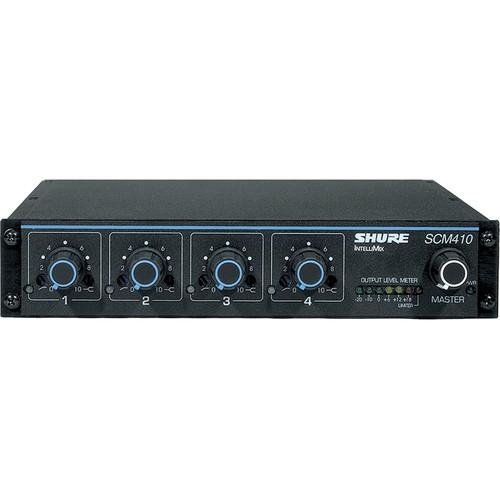

The Shure SCM410 4 Channel Automatic Mixer is a 4 channel microphone mixer designed for recording, sound reinforcement and broadcast application. The mixer will accept signal from dynamic and condenser microphone of any type. The rear panel features 4 balanced 3-pin XLR female microphone inputs and a single balanced XLR output that is capable of mic or line level signal. Each channel features an adjustable EQ for signal contouring and 12VDC phantom power is available for condenser microphones.
If you own a Shure install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SCM410 4 Channel Automatic Mixer SCM410 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Shure  SCM410 4 Channel Automatic Mixer SCM410Download user manual for Shure SCM410 4 Channel Automatic Mixer SCM410
(PDF file, 22.56 MB)
Additional parameters of the Shure SCM410 4 Channel Automatic Mixer SCM410:
Inputs 4 - XLR 3-pin Female mic level only
Output 1 - XLR 3-pin Male mic/line switchable
Monitor/Headphone Out No
ALT I/O AUX Output - 1 Phono unbalanced
Link Input/Output 9-pin serial
Impedance Input:
Mic - 19-600 ohm, 1.4k ohm actual, -14dBV clipping
Output:
Line - .5k ohm, 300 ohm actual, +24dBV clipping
Mic - .600 ohm, 3 ohm, -18dBV clipping
Aux - .10k ohm, 1.5k ohm, +14dBV clipping
Gain Low-impedance mic input 150 ohms:
Line - 80dB
Mic - 40dB
Aux - 68dB
Hum & Noise 150 ohm source; through 22Hz - 22kHz filter:
Equivalent Input Hum and Noise: -123dBV max., -125dBV typical
Frequency Response Rated @ 1kHz, channel controls centered:
50Hz to 20kHz +2dB; -3dB corner @ 25Hz
Distortion < 0.1% @ +4 dBu output level, 50Hz to 20kHz
Metering 7-segment peak LED meter
Control Voltage Out No
Phantom Power 12 VDC
Operating Temperature Operating: -7 to 49 degrees C (20 to 120 degrees F)
Storage: -29 to 74 degrees C (-20 to 165 degrees F)
Power 100-120 Vac rated nominal, 50/60 Hz, 100mA (max.)
Dimensions 1.73 x 8.62 x 10.51" (44 x 219 x 267mm) HxWxD
Weight 3.86 lbs (1.75kg)
Packaging Info
Package Weight 7.3 lb
Box Dimensions (LxWxH) 14.882 x 10.236 x 3.15"
The user manual for the Shure SCM410 4 Channel Automatic Mixer SCM410 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure install sound mixerss, where you can use our link to download the user manual for the Shure SCM410 4 Channel Automatic Mixer SCM410.

The user manual lists all of the functions of the Shure SCM410 4 Channel Automatic Mixer SCM410, all the basic and advanced features and tells you how to use the install sound mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SCM410 4 Channel Automatic Mixer SCM410. User manuals are also available on the Shure website under Pro Audio - Installation Sound - Install Sound Mixers.
