User manual Shure SCM800 8 Channel Microphone Mixer SCM800

Operating instructions and pdf manual for use - Shure SCM800 8 Channel Microphone Mixer SCM800 User manual, User manual Shure SCM800 8 Channel Microphone Mixer SCM800, Shure, SCM800, 8, Channel, Microphone, Mixer, SCM800, Video


User manual for Shure SCM800 8 Channel Microphone Mixer SCM800

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Shure  SCM800 8 Channel Microphone Mixer SCM800
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Mixers
  • Safety instructions
  • Startup and operation of the install sound mixers
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 653 USD
We recommend checking out our discussion threads on the Shure SCM800 8 Channel Microphone Mixer SCM800, which address similar problems with connecting and setting up Install Sound Mixers Shure.



User manual for the Shure SCM800 8 Channel Microphone Mixer SCM800

The user manual for the Shure SCM800 8 Channel Microphone Mixer SCM800 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

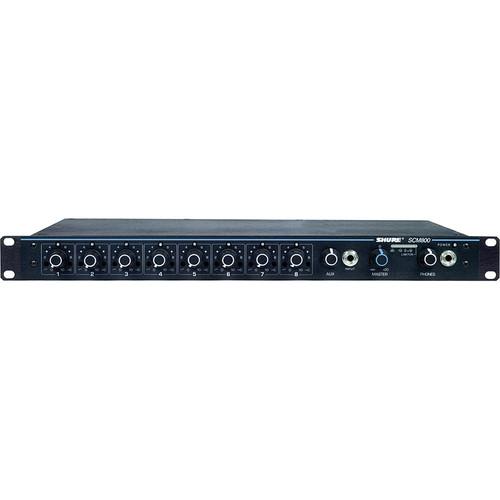

The Shure SCM800 8-Channel Microphone Mixer is a professional and compact (1RU) rack-mounted microphone and line level mixer with 8-channels featuring block connections. All 8 channels feature 1/4" phone inserts for direct connection to external processors, etc. Built-in limiters eliminate noise and distortion, and 48V phantom power is supplied to condenser microphones.
If you own a Shure install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SCM800 8 Channel Microphone Mixer SCM800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Shure  SCM800 8 Channel Microphone Mixer SCM800Download user manual for Shure SCM800 8 Channel Microphone Mixer SCM800
(PDF file, 0.83 MB)
Additional parameters of the Shure SCM800 8 Channel Microphone Mixer SCM800:
Total # Of Inputs 8 Microphone / Line Switchable: Block Connections
1 AUX Input: 1/4" Phone
Mic/Line Inputs 8 Microphone / Line Switchable: Block Connections
Stereo Line Inputs None
In-Line Inputs/Returns None
AUX Sends None
AUX Returns None
Inserts 8 - 1/4" TRS Phone
BUS (Group) Outputs Stereo Output
2 Trk Master I/O Block Connector
ALT I/O Link Out / Link In
Monitor Outputs Headphone Output: 1/4" TRS Phone
EQ Section Low Cut Filter / High Pass Shelving
Solo/Mute No
Channel Level Control Rotary Control Pots
Trim/Gain Control Rotary Control Pots
Phantom Power 48V DC
Metering Peak LED Metering
Frequency Response 50Hz to 20kHz
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio Equivalent Input Noise: -125 dBV (150Ω source; through 400Hz to 20kHz filter)
Total Harmonic Distortion (THD) <0.1% at '18 dBV output level, 50 Hz to 20 kHz (through 20 Hz-20 kHz filter; Input 1 and Master at 5, all other controls full counterclockwise)
Power Supply SCM800: 120 Vac rated nominal (see Voltage Selection for 230 Vac operation in User Guide), 50/60 Hz, 200 mA
Dimensions 1.75 x 19.01 x 12.48" (44.5 x 483 x 317mm) HxWxD
Weight 9.57 lbs (4.3kg)
Packaging Info
Package Weight 14.2 lb
Box Dimensions (LxWxH) 22.2 x 16.8 x 2.5"
The user manual for the Shure SCM800 8 Channel Microphone Mixer SCM800 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure install sound mixerss, where you can use our link to download the user manual for the Shure SCM800 8 Channel Microphone Mixer SCM800.

The user manual lists all of the functions of the Shure SCM800 8 Channel Microphone Mixer SCM800, all the basic and advanced features and tells you how to use the install sound mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SCM800 8 Channel Microphone Mixer SCM800. User manuals are also available on the Shure website under Pro Audio - Installation Sound - Install Sound Mixers.
