User manual Shure SM86 - Handheld Microphone SM86

Operating instructions and pdf manual for use - Shure SM86 - Handheld Microphone SM86 User manual, User manual Shure SM86 - Handheld Microphone SM86, Shure, SM86, Handheld, Microphone, SM86, Video


User manual for Shure SM86 - Handheld Microphone SM86

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Shure  SM86 - Handheld Microphone SM86
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Handheld Performance
  • Safety instructions
  • Startup and operation of the handheld performance
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 179 USD
We recommend checking out our discussion threads on the Shure SM86 - Handheld Microphone SM86, which address similar problems with connecting and setting up Handheld Performance Shure.



User manual for the Shure SM86 - Handheld Microphone SM86

The user manual for the Shure SM86 - Handheld Microphone SM86 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Handheld Performance.

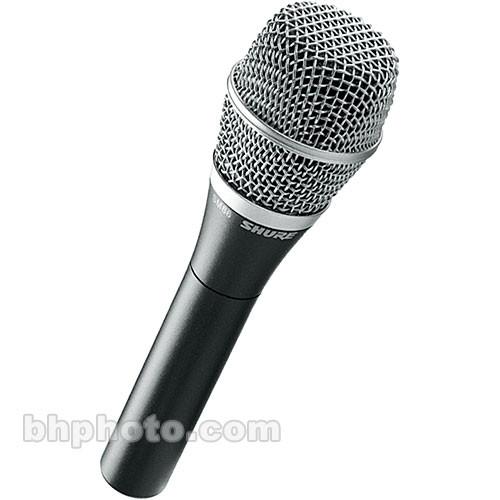

The Shure SM 86 is a cardioid (uni-directional) condenser handheld microphone intended for use in sound-reinforcement and recording applications. The cardioid pattern is effective in reducing ambient, off-axis noise making it a suitable option for use near stage monitors, loud instruments etc. The condenser element requires between 11 to 52 Volts DC phantom power and produces a sensitivity far greater than that of dynamic microphones. Condenser elements provide higher output levels, frequency response, and dynamic range resulting in studio-level sonic quality. A built-in 3-stage shock-mount minimizes handling noise and an internal windscreen reduces noise caused by wind and breath sounds. It's rugged metal construction is made to withstand the rigors of touring and daily use.
If you own a Shure handheld performance and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SM86 - Handheld Microphone SM86 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Shure  SM86 - Handheld Microphone SM86Download user manual for Shure SM86 - Handheld Microphone SM86
(PDF file, 1.67 MB)
Additional parameters of the Shure SM86 - Handheld Microphone SM86:
Transducer (Electret Bias) Condenser
Polar Pattern Cardioid
Frequency Response 50Hz to 18,000Hz
Maximum Input Sound Level (at 1,000 Hz) 1,000 ohm load (1%THD): 147dB
Power Requirements 11 to 52 Vdc Phantom Power
Output Impedance 150 ohms at 1kHz
Recommended minimum load impedance: 600 ohms
Output Connectors Balanced 3-pin XLR
Dimensions 7.2 x .95" (183 x 24mm) (Length x Diameter)
Weight 278 grams (9.8 oz)
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 10.2 x 5.0 x 3.4"
The user manual for the Shure SM86 - Handheld Microphone SM86 can be downloaded in .pdf format if it did not come with your new handheld performance, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure handheld performances, where you can use our link to download the user manual for the Shure SM86 - Handheld Microphone SM86.

The user manual lists all of the functions of the Shure SM86 - Handheld Microphone SM86, all the basic and advanced features and tells you how to use the handheld performance. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SM86 - Handheld Microphone SM86. User manuals are also available on the Shure website under Pro Audio - Live Sound - Handheld Performance.
