User manual Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50

Operating instructions and pdf manual for use - Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 User manual, User manual Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50, Shure, ULXD4D, Dual-Channel, Wireless, Receiver, H50


User manual for Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50

Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information

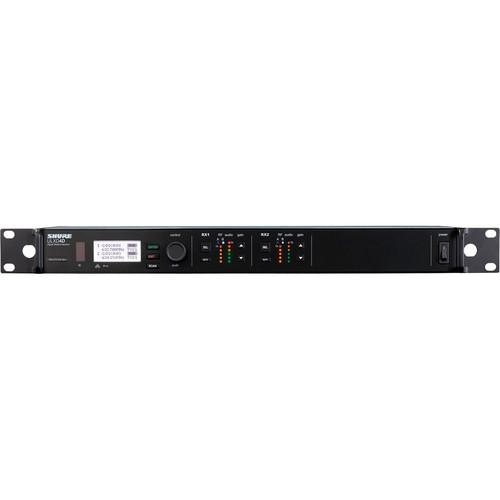

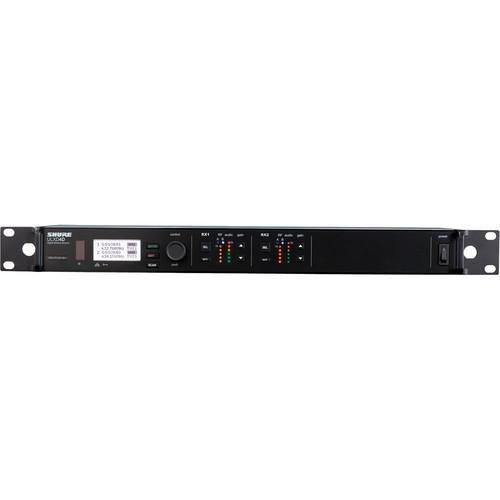

Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50
Click to enlarge image

We recommend checking out our discussion threads on the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50, which address similar problems with connecting and setting up Wireless Receivers Shure.



User manual for the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50

The user manual for the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

The ULXD4D Dual-Channel Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates between 537 to 598 MHz It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.

The ULX4D is compatible with Dante audio over Ethernet networks. Its digital distribution can be controlled via the Wireless Workbench software.
If you own a Shure wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50:
Specifications
    RF Input Specs
    Spurious Rejection >80 dB, typical
    Connector BNC
    Impedance 50 Ω
    Bias Voltage(s) 12-13 V DV, 150 mA maximum, per antenna
    Audio Output
    Gain Range -18 to 42 dB in 1 dB step (plus mute setting)
    Configuration XLR: Balanced (1= ground, 2= audio +, 3= audio -)
    Impedance 100 Ω
    Full Scale Output Line: 18 dBV
    Mic: -12 dBV
    Switch Mic/Line: 30 dB pad
    Phantom Power Protection Yes
    Networking
    Network Interface Dual port Ethernet 10/100 Mbps, 1 Gbps
    Network Addressing Capability DHCP or Manual IP
    Ethernet Maximum Cable Length: 328' (100 m)
    Cascade Output Connector Type: BNC
    Configuration: Unbalanced, passive
    Impedance: 50 Ω
    General
    Power Requirements 100 to 240 V AC, 50-60 Hz, 0.26 A maximum
    Dimensions (H x W x D) 1.73 x 18.97 x 10.79" (44 x 482 x 274 mm)
    Weight 7.4 lb (3.36 kg)
    Packaging Info
    Package Weight 14.5 lb
    Box Dimensions (LxWxH) 27.5 x 17.5 x 3.6"
    The user manual for the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50 can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless receiverss, where you can use our link to download the user manual for the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50.

    The user manual lists all of the functions of the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure ULXD4D Dual-Channel Wireless Receiver (H50) ULXD4D-H50. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Receivers.
