User manual Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS

Operating instructions and pdf manual for use - Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS User manual, User manual Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS, Smart-AVI, DVX-UTRX, DVI-D/USB, over, Dual, CAT6


User manual for Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS

Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS
  • Manufacturer: Smart-AVI
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders
  • Safety instructions
  • Startup and operation of the dvi/vga kvm extenders
  • Tips for setting up your Smart-AVI
  • Settings and expert assistance
  • Contact Smart-AVI service
  • Troubleshooting
  • Warranty information
  • Price: 487 USD
We recommend checking out our discussion threads on the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS, which address similar problems with connecting and setting up DVI/VGA KVM Extenders Smart-AVI.



User manual for the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS

The user manual for the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS provides necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

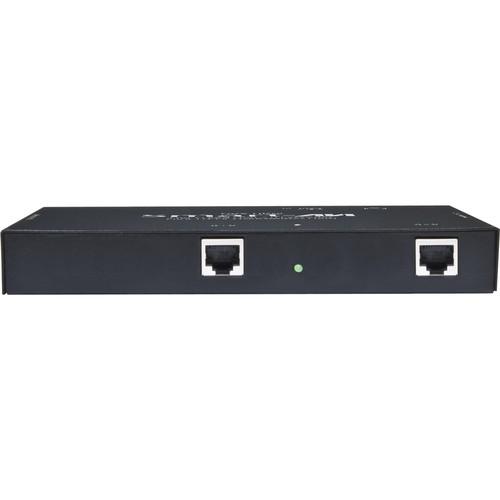

The DVX-UTRX Extender Receiver Unit from Smart-AVI provides DVI and USB signals received over two CAT6 cables from a DVX-UTTX transmitter unit (sold separately). It has two RJ45 inputs, one DVI-D, and four USB outputs. It provides a DVI video output, and can connect to keyboards, mice, and other interface devices via its four USB connectors. It supports resolutions up to 1920x1200, features plug-and-play functionality, and is compatible with all operating systems. It is equipped with a data-recovery reclocking feature that regenerates an incoming signal in case the signal is weakened by a DVI-converter on the transmitter end. This receiver is compliant with all USB 1.1 and 2.0 specifications.
If you own a Smart-AVI dvi/vga kvm extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS:
Specifications
    Video Format DVI-D
    Maximum Pixel Clock 165 MHz
    Inputs 2 x RJ45
    1 x DVI-D 29-pin female
    1 x USB type B
    Outputs 1 x DVI-D 29-pin female
    4 x USB type A female
    Supported Resolutions Up to 1920x1200 @ 60 Hz
    DDC 5 volts p-p (TTL)
    Input Equalization Automatic
    Output Cable Length Up to 20' (6 M)
    Signaling USB 2.0, 1.1 and 1.0
    Power External 100-240 VAC/5 VDC 4 A @ 20 W
    Operating Temperature 32 - 131°F (0 - 55°C)
    Storage Temperature -4 - 185°F (-20 - 85°C)
    Humidity Up to 95%
    Approvals UL, CE, ROHS compliant
    Emulation Fully transparent - no USB emulation
    Dimensions 6.25 x 1.00 x 3.50" (15.88 x 2.54 x 8.89 cm)
    Weight 1 lb (0.45 kg)
    The user manual for the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS can be downloaded in .pdf format if it did not come with your new dvi/vga kvm extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Smart-AVI users keep a unique electronic library for Smart-AVI dvi/vga kvm extenderss, where you can use our link to download the user manual for the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS.

    The user manual lists all of the functions of the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS, all the basic and advanced features and tells you how to use the dvi/vga kvm extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Smart-AVI service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender DVX-UTRXS. User manuals are also available on the Smart-AVI website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
