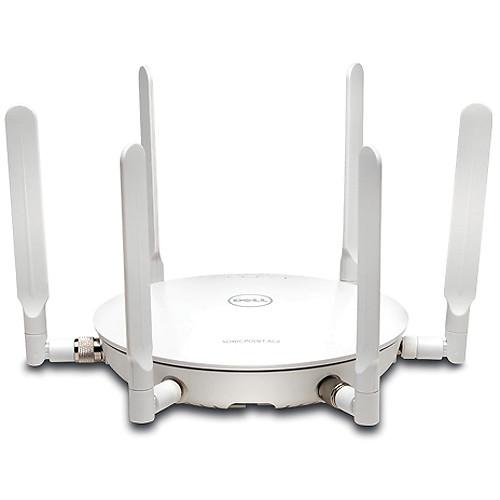

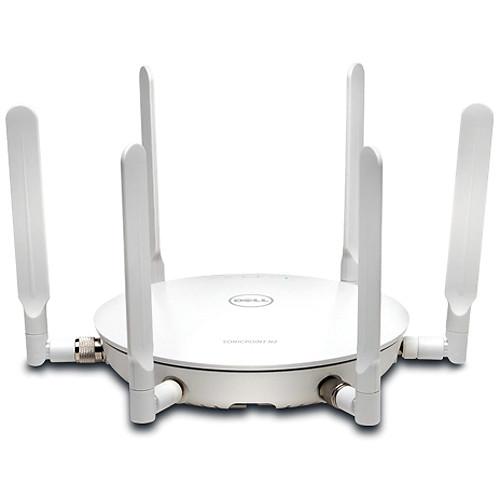

Click to enlarge image
|
We recommend checking out our discussion threads on the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0875,
which address similar problems with connecting and setting up Wireless Access Points SonicWALL.
|
User manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0875
The user manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0875 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.
With the SonicPoint N2 Wireless Access Point from Dell you can greatly expand the reach of your wireless network while keeping the number of access points needed to a minimum. Dual band connectivity allows you to connect to either the 2.4 GHz or 5 GHz frequencies while operating using the 802.11n networking standard. This SonicPoint Access Point also supports FairNet Wireless Bandwidth Allocation effectively guaranteeing a minimum amount of bandwidth to each user to ensure that all users have access to crucial Internet based applications, email, and more.
You can rest assured your network will remain secure after installing the SonicPoint Access point as it comes equipped with a variety of security features. Deep packet inspection technology scans all inbound and outbound traffic to help eliminate threats, intrusions, and other attacks that may harm your network. You can also take complete control of all aspects of your network, both wired and wireless, using Granular Security Policy Enforcement which gives you complete control over firewall rules. If you would like to restrict access to specific areas of your network to certain users you can implement wireless guest services protocols to ensure those users have internet-only access.
This SonicPoint Access point from Dell provides the complete solution to your wireless networking needs. You can easily install this device within a drop ceiling or on the wall while the included PoE injector makes it is easy to bring power to the unit eliminating the need to run addition power sources.
|
If you own a SonicWALL wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0875 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0875:
| PoE Power Requirements | 802.3at | | Power Supply | 802.3at PoE | | Power Consumption | 13.7 W (maximum) | | Status Indicators | 6 x LED (WLAN/Link) (LAN/Link) Power, Test | | Antennas | 3+3 (SMA 2.4 GHz + TNC 5 GHz) | | Ethernet Ports | 2 x 10/100/1000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE)
1 x RJ-45 console
1 x USB 2.0 | | Mounting | Wall or ceiling mount kit | | Virtual Access Points | Up to 8 per SonicPoint | | Maximum Clients Supported | 256 (128 per radio) | | Chassis | UL2043 plenum rated | | Compliance | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11i, IEEE 802.3e, IEEE 802.3i, IEEE 802.3at, WPA/WPA2, TKIP, AES | | Regulatory | FCC/ICES Class B, CE, RCM/ACMA, VCCI Class B, TELEC, BSMI, NCC, MSIP, ANATEL, Customs Union, RoHS (Europe/China), WEEE | | Certifications Pending | Wi-Fi, Dynamic Frequency Selection (DFS) | | Safety | UL, cUL, TUV/GS, CB, CE, BSMI, Mexico CoC, Customs Union | | Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 - 95% (non-condensing) | | Supported Radios | Dual: 3x3 11n + 3x3 11n | | Frequency Bands | 802.11a: 5.180-5.825 GHz
802.11b/g: 2.412-2.472 GHz
802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz | | Operating Channels | 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4
802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only)
802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13
802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 | | Transmit Output Power | Based on the regulatory domain specified by the system administrator | | Transmit Power Control | Supported | | Data Rates Supported | 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel
802.11b: 1,2,5.5,11 Mbps per channel
802.11g: 6,9,12,18,24,36,48,54 Mbps per channel
802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel | | Modulation Technology Spectrum | 802.11a: Orthogonal Frequency Division Multiplexing (OFDM)
802.11b: Direct Sequence Spread Spectrum (DSSS)
802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS)
802.11n: Orthogonal Frequency Division Multiplexing (OFDM) | | Data Encryption | WPA2; IPSec, 802.11i, WPA; 64/128/152-bit WEP, TKIP, AES, SSL VPN
(When used with Dell SonicWALL Secure Remote Access Series appliance) | | Authentication | RADIUS, Active Directory, Novell e-Directory, SAMBA, single sign-on (SSO) | | Dimensions | 6.9 x 1.5" / 175 x 38 mm | | Weight | 1.2 lb / 0.53 kg | | Hardware | Number of Ports
2: 2 x Data In; 1 x data and power out
Connectors
Shielded RJ-45, EIA 568A and 568B
Indicators
System indicator: AC power (green); User indicator: channel power active (green)
Data Rate
10/100/1000 Mbps | | Power Over LAN Output | Pin Assignment and Polarity
4/5 (+), 7/8 (-)
Output Power Voltage
-48 VDC
User Port Power
30 W minimum | | Input Power Requirements | AC Input Voltage
100 to 240 VAC
AC Frequency
50 to 60 Hz
AC Input Current
0.8 A at 100 to 240 VAC | | Standards and Compliance | Regulatory Compliance
CE, RoHS, WEEE
Electromagnetic Emission and Immunity
EN 55022 Class B (Emissions), FCC Part 15, Class B EN 55024 (Immunity), VCCI
Safety
UL/cUL 60950-1, GS Mark per IEC 60950-1 | | Operating Temperature | 32 to 104 °F / 0 to 40 °C | | Operating Humidity | 90% maximum (non-condensing) | | Storage Temperature | -4 to 158 °F / -20 to 70 °C | | Storage Humidity | 95% maximum (non-condensing) | | Operating Altitude | -1,000 to 10,000 ft. / -304.8 to 3,048 m | | Dimensions | 1.22 x 1.97 x 6.30" / 31 x 50 x 160 mm | | Weight | 0.5 lb / 0.3 kg | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.2 x 9.3 x 6.5" | |
