User manual Sony a68 Alpha DSLR Camera with 18-55mm Lens

Operating instructions and pdf manual for use - Sony a68 Alpha DSLR Camera with 18-55mm Lens User manual, User manual Sony a68 Alpha DSLR Camera with 18-55mm Lens, Sony, a68, Alpha, DSLR, Camera, with, 18-55mm, Lens, Video


User manual for Sony a68 Alpha DSLR Camera with 18-55mm Lens

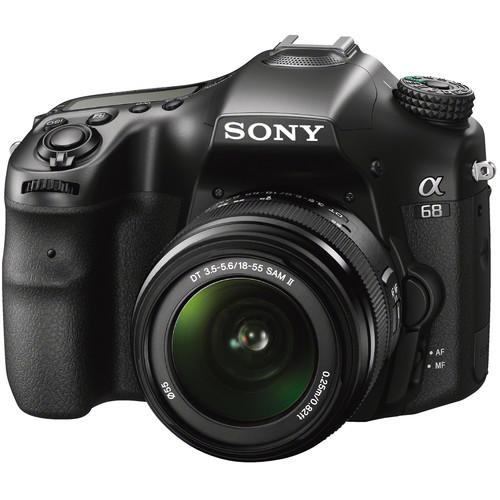

Sony a68 Alpha DSLR Camera with 18-55mm Lens
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
We recommend checking out our discussion threads on the Sony a68 Alpha DSLR Camera with 18-55mm Lens, which address similar problems with connecting and setting up DSLR Cameras Sony.



User manual for the Sony a68 Alpha DSLR Camera with 18-55mm Lens

The user manual for the Sony a68 Alpha DSLR Camera with 18-55mm Lens provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

Making entry-level more appealing is Sony's Alpha a68 DSLR Camera which offers many features found in bigger, pricier options, but in a compact and well-designed format. Key improvements to image quality come from the implementation of a 24.2MP APS-C Exmor CMOS sensor and the BIONZ X processor, which combine their energies to produce highly detailed images at sensitivities up to ISO 25600 and at continuous rates up to 8 fps. Also, thanks to the use of Sony's Translucent Mirror Technology, continuous AF can be maintained during shooting and now with the 4D FOCUS system integrated into this model. This system is speedy and accurate, utilizing a wide array of 79 phase-detect AF points with 15 cross-type points that work at down to -2 EV.

Benefitting image quality is SteadyShot INSIDE, which offers a sensor-shift type image stabilization to limit the effects of camera shake. This in-body system also has the advantage of being compatible with all A-mount lenses as it doesn't have to rely on lens designs providing the IS. In addition to stills, the a68 offers Full HD 1080p video at 30 fps using the efficient XAVC S format at 50 Mbps for high quality filmmaking needs. Additionally, video has accurate and fast constant tracking AF through the use of the Translucent Mirror Technology.

The body design has received a major upgrade with the addition of a top display panel and a rear control wheel that make viewing and changing settings a much more intuitive process. Composing images has multiple options, including a 0.39" 1,440k-dot OLED Tru-Finder for real-time imaging with rich color and contrast. For a larger viewing area, the 2.7" 460.8k-dot rear LCD is available and can tilt up or down for working in unusual shooting positions.

Included with the camera body is the DT 18-55mm f/3.5-5.6 SAM II lens, which provides a 27-82.5mm equivalent focal length range to cover wide-angle to portrait-length perspectives. This lens features a Smooth Autofocus Motor (SAM) to offer quick and quiet performance that benefits video recording and subject tracking. In regard to the lens construction, two aspherical elements and one extra-low dispersion glass element are incorporated to help reduce spherical and chromatic aberrations throughout the zoom range while also helping to produce sharper, clearer imagery.
If you own a Sony dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony a68 Alpha DSLR Camera with 18-55mm Lens in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony a68 Alpha DSLR Camera with 18-55mm Lens:
Specifications
Imaging
Lens Mount Sony Alpha/ Minolta
Camera Format APS-C / (1.5x Crop Factor)
Pixels Actual: 24.8 Megapixel
Effective: 24.2 Megapixel
Max Resolution 24 MP: 6000 x 4000
Aspect Ratio 3:2
Sensor Type / Size CMOS, 23.5 x 15.6 mm
File Formats Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, MP4, XAVC S
Audio: AC3, Dolby Digital 2ch, Linear PCM
Bit Depth 14-bit
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
Memory Stick PRO HG-Duo
Memory Stick Pro Duo
Memory Stick XC-HG Duo
Image Stabilization Sensor-Shift
Focus Control
Focus Type Auto & Manual
Focus Mode Automatic (A), Continuous-servo AF (C), Single-servo AF (S)
Autofocus Points Phase Detection:79, 15 cross-type
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Size 0.39"
Viewfinder Pixel Count 1,440,000
Viewfinder Eye Point 26.5 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.88x
Diopter Adjustment - 4 to +3 m
Display Screen 2.7" Rear Screen Tilting  LCD (460,800)
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 100-25600
Shutter Type: Mechanical
Speed: 1/4000 - 30 second
Remote Control RMT-DSLR2 (Optional)
Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
Exposure Modes Modes: Aperture Priority, Auto, Continuous Advance Priority AE, Manual, Memory Recall, Movie, Programmed Auto, Scene Selection, Shutter Priority, Sweep Panorama
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
Continuous Shooting Up to 8 fps at 24 MP
White Balance Modes Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
Flash
Flash Modes Auto
Fill-in
Hi-Speed Sync
Off
Rear Sync
Red-eye Reduction
Slow Sync
Wireless
Built-in Flash Yes
Max Sync Speed 1 / 160 seconds
Flash Compensation -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
External Flash Connection Hot Shoe
AV Recording
Video Recording Yes, NTSC
File Size 1920 x 1080p (Full HD)
Video Format High Definition
XAVC S
1920 x 1080p / 29.97 fps (50 Mbps)
1920 x 1080p / 23.98 fps (50 Mbps)
High Definition
AVCHD
1920 x 1080i / 59.94 fps
1920 x 1080p / 29.97 fps
1920 x 1080p / 23.98 fps
High Definition
MP4
1920 x 1080p / 29.97 fps
1920 x 1080p / 23.98 fps
1440 x 1080
1280 x 720
640 x 480
Aspect Ratio 16:9
Frame Rate @ 1920 x 1080: 30 fps, 24 fps
ISO Sensitivity Auto, 100 - 12800
Focus Auto
Manual
Continuous Auto
Video Clip Length 1920 x 1080
29 min. 59 seconds
Audio Recording Built-in Mic: With Video, Stereo
Optional External Mic: With Video, Stereo + Mono
Performance
Continuous Shooting Up to 8 fps
Self Timer 10 seconds, 2 seconds
Connectivity 1/8" Microphone, Multi Interface Terminal
Wi-Fi Capable No
Power
Battery 1x NP-FM500H Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1650 mAh
AC Power Adapter AC-PW10AM (Optional)
Physical
Dimensions (WxHxD) 5.6 x 4.1 x 3.3" / 142.6 x 104.2 x 82.8 mm
Weight 1.34 lb / 610 g body only
Kit Lens
Focal Length 18 - 55mm
Comparable 35mm Focal Length: 27 - 82.5 mm
Aperture Maximum: f/3.5 - 5.6
Minimum: f/22 - 36
Angle of View 77.4° - 29.4°
Minimum Focus Distance 9.84" (25 cm)
Magnification 0.34x
Elements/Groups 8/7
Diaphragm Blades 7
Autofocus Yes
Image Stabilization No
Filter Thread Front: 55 mm
Dimensions (DxL) Approx. 2.82 x 2.72" (71.6 x 69 mm)
Weight 7.83 oz (222 g)
The user manual for the Sony a68 Alpha DSLR Camera with 18-55mm Lens can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony dslr camerass, where you can use our link to download the user manual for the Sony a68 Alpha DSLR Camera with 18-55mm Lens.

The user manual lists all of the functions of the Sony a68 Alpha DSLR Camera with 18-55mm Lens, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony a68 Alpha DSLR Camera with 18-55mm Lens. User manuals are also available on the Sony website under Photography - Digital Cameras - DSLR Cameras.
