User manual for Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Sony
- Basic description and contents of package
- Product classification: Photography - Digital Cameras - Mirrorless System Cameras
- Safety instructions
- Startup and operation of the mirrorless system cameras
- Tips for setting up your Sony
- Settings and expert assistance
- Contact Sony service
- Troubleshooting
- Warranty information
- Price: 648 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B,
which address similar problems with connecting and setting up Mirrorless System Cameras Sony.
|
User manual for the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B
The user manual for the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

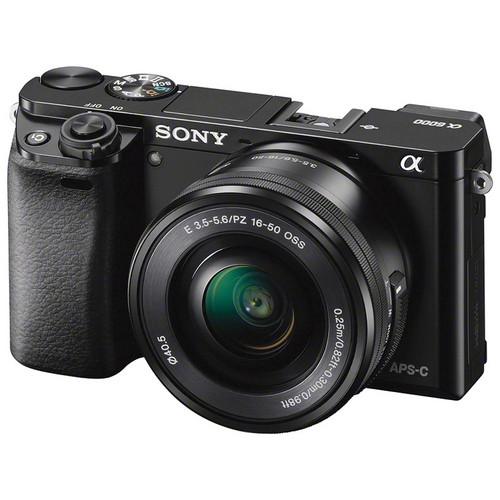

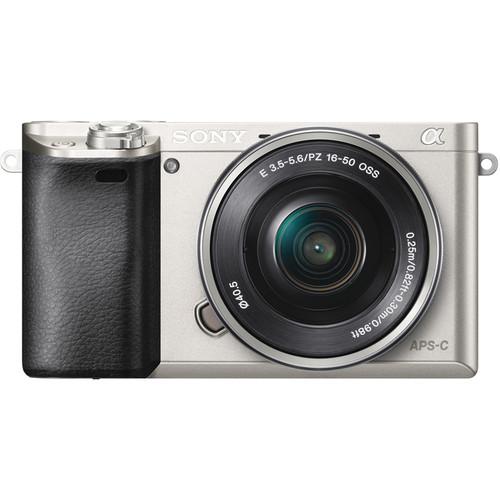

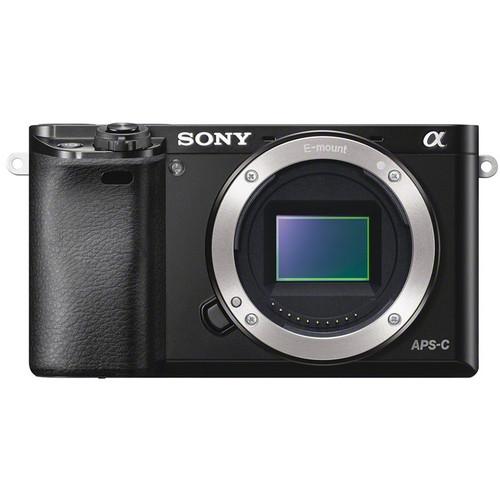

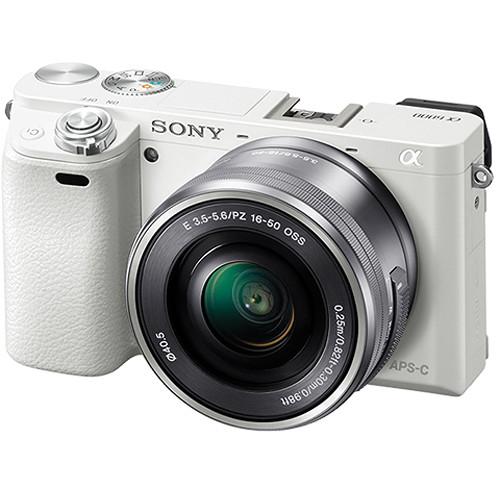

The black Sony Alpha a6000 Mirrorless Digital Camera is a versatile and advanced mirrorless camera featuring a 24.3MP APS-C-sized Exmor APS HD CMOS sensor and BIONZ X image processor to produce high-resolution still images and full HD movies with marked low-light quality and sensitivity to ISO 25600. Beyond notable imaging traits, the image processor also lends itself to continuous shooting up to 11 fps and an intelligent Fast Hybrid AF system that uses both phase- and contrast-detection methods to quickly and accurately acquire focus.
For live view monitoring, image playback, and menu navigation, both a large rear monitor and detailed electronic viewfinder are available. The 3.0" 921k-dot XtraFine LCD screen features a tilting design to facilitate easier use from both high and low angles and also incorporates WhiteMagic technology for easier viewing in bright conditions. The 0.39" 1,440k-dot Tru-Finder OLED EVF offers 100% frame coverage and a refined optical design to provide a natural viewing perspective and magnification. The body design of the a6000 also houses a configurable user interface, built around several customizable buttons and two control dials, for efficient and intuitive access to frequently used camera settings. Additionally, a Multi Interface shoe is available for attaching external flashes, continuous lights, or microphones.
Built-in Wi-Fi connectivity, with support for NFC-enabled devices, is also integrated into the a6000 to support remote camera control and image sharing to linked mobile devices. In addition to these base features, with firmware version 2.0 users will have access to the XAVC S format for Full HD 1080p video at 24, 30, and 60 fps. This format will dramatically improve video quality by allowing the camera to capture images at a high bit rate of 50 Mbps, which holds more information than AVCHD for fewer artifacts. Along with this, users will be required to use Class 10 or faster SDXC memory cards with a capacity of 64GB or greater.

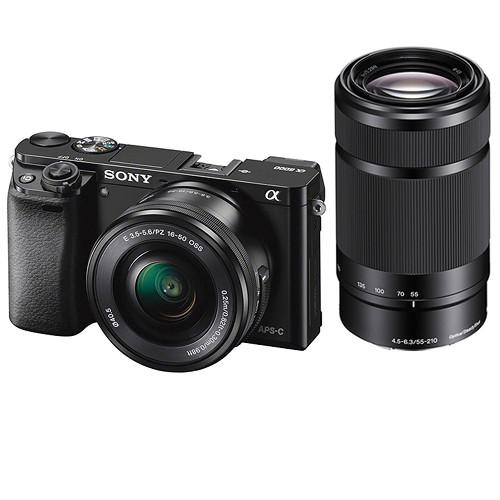

Included with the camera body is a Sony E-mount 16-50mm f/3.5-5.6 OSS Retractable Zoom Lens, which provides a 35mm-equivalent focal length range of 24-75mm. This range of perspectives is well-suited to everyday shooting and is further enhanced through the inclusion of Optical SteadyShot image stabilization for minimizing the appearance of camera shake. Power Zoom technology allows for electronic control over the zoom position and the inclusion of one extra-low dispersion element and four aspherical elements helps to reduce chromatic aberrations throughout the zoom range as well as contribute to high overall sharpness.
|
If you own a Sony mirrorless system cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B:
| Lens Mount | Sony E-Mount | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | Actual: 24.7 Megapixel
Effective: 24.3 Megapixel | | Max Resolution | 24 MP: 6000 x 4000 | | Aspect Ratio | 3:2 | | Sensor Type / Size | CMOS, 23.5 x 15.6 mm | | File Formats | Still Images: JPEG, RAW
Movies: MP4, MPEG-4 AVC/H.264 | | Dust Reduction System | Yes | | Memory Card Type | SD
SDHC
SDXC
Memory Stick Pro Duo
Memory Stick PRO HG-Duo | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080: 60 fps, 24 fps, 30 fps
1440 x 1080: 30 fps
640 x 480: 30 fps | | Video Format | High Definition
XAVC S
1920 x 1080p / 60 fps (50 Mbps)
1920 x 1080p / 30 fps (50 Mbps)
1920 x 1080p / 24 fps (50 Mbps)
High Definition
AVCHD
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
High Definition
AVCHD
1920 x 1080p / 24 fps (24 Mbps)
1920 x 1080p / 24 fps (17 Mbps)
High Definition
MP4
1440 x 1080 / 30 fps (12 Mbps)
Standard Definition
MP4
640 x 480 / 30 fps (3 Mbps) | | Aspect Ratio | 3:2, 4:3, 16:9 | | Audio Recording | Built-in Mic: With Video, Stereo | | Focus Type | Auto & Manual | | Focus Mode | Automatic (A), Continuous-servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Phase Detection:179
Contrast Detection:25 | | Viewfinder Type | Electronic | | Viewfinder Size | 0.39" | | Viewfinder Pixel Count | 1,440,000 | | Viewfinder Eye Point | 23.00 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 1.07x | | Diopter Adjustment | - 4 to +3 m | | Display Screen | 3" Widescreen Tilting LCD (921,600) | | Screen Coverage | 100% | | ISO Sensitivity | Auto, 100-25600 | | Shutter | Type: Electronic & Mechanical
Speed: 30 - 1/4000 second, Bulb Mode
Type: Mechanical
Speed: 1/4 - 1/4000 second in Movie Mode | | Remote Control | RM-DSLR2 (Optional) | | Metering Method | Center-weighted average metering, Multi-zone metering, Spot metering | | Exposure Modes | Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto, Sweep Panorama
Metering Range: EV 0.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps) | | White Balance Modes | Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 11 fps frames
Up to 6 fps frames
Up to 2.5 fps frames | | Flash Modes | Auto
Fill-in
Off
Rear Sync
Red-eye Reduction
Slow Sync
Wireless | | Built-in Flash | Yes | | Guide No. | 19.69' (6 m) ISO100 | | Max Sync Speed | 1 / 160 seconds | | Flash Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe, Wireless | | Shutter Lag | 0.02 seconds | | Self Timer | 10 seconds, 2 seconds | | Connectivity | HDMI D (Micro), USB 2.0, Wired Remote Port | | Wi-Fi Capable | Yes | | Software System Requirements | Windows: Vista (SP2), 7 (SP1), 8
Mac: OS X 10.6, 10.7, 10.8 | | Battery | 1x NP-FW50 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1080 mAh | | Dimensions (WxHxD) | 4.7 x 2.6 x 1.8" / 120.0 x 67.0 x 45.0 mm | | Weight | 12.13 oz / 344 g with battery and memory card | | Focal Length | 16 - 50mm
Comparable 35mm Focal Length: 24 - 75 mm | | Aperture | Maximum: f/3.5 - 5.6
Minimum: f/22 - 36 | | Angle of View | 83° - 32° | | Minimum Focus Distance | 9.84" (25 cm) | | Magnification | 0.215x | | Elements/Groups | 9/8 | | Diaphragm Blades | 7 | | Autofocus | Yes | | Image Stabilization | Yes | | Filter Thread | Front: 40.5 mm | | Dimensions (DxL) | Approx. 2.63 x 1.19" (66.7 x 30.2 mm) | | Weight | 4.09 oz (116 g) | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.3 x 5.7 x 5.2" | |
The user manual for the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B can be downloaded in .pdf
format if it did not come with your new mirrorless system cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony mirrorless system camerass,
where you can use our link to download the user manual for the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B.
The user manual lists all of the functions of the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B,
all the basic and advanced features and tells you how to use the mirrorless system cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony Alpha a6000 Mirrorless Digital Camera ILCE6000L/B. User manuals are also
available on the Sony website under Photography - Digital Cameras - Mirrorless System Cameras.
