User manual for the Sony ECM-W1M Wireless Microphone for Cameras ECMW1M
The user manual for the Sony ECM-W1M Wireless Microphone for Cameras ECMW1M provides
necessary instructions for the proper use of the product Photography - Photo Accessories - Microphones.

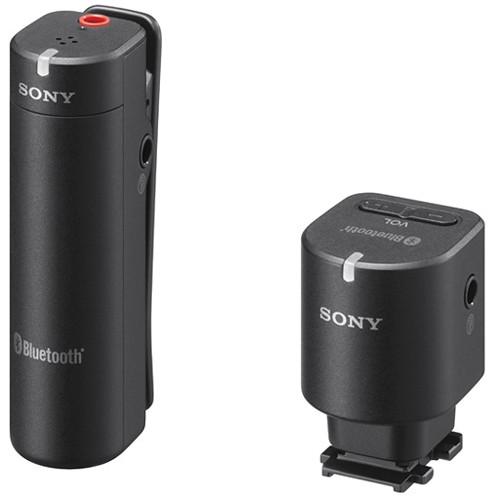

The Sony ECM-W1M Wireless Microphone is designed specifically for Sony cameras and camcorders that feature the proprietary Multi-Interface Shoe. The microphone comprises two components: a transmitter and a receiver. They communicate wirelessly with each other using Bluetooth technology and feature a range of up to 100', depending on conditions. With the receiver attached to your camera it is still possible to capture additional audio using the camera's built-in microphone. In addition, audio picked up by the camera can be relayed back to the transmitter. The transmitter features a headphone jack that allows the camera operator to communicate with the person wearing the transmitter by speaking into the camera's microphone. There is also a headphone jack on the receiver so that the camera operator can monitor audio even if the camera itself doesn't provide a headphone out of its own. Finally, the transmitter features a 3.5mm mic input allowing you to use a third-party microphone rather than the built-in one.
|
If you own a Sony microphones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony ECM-W1M Wireless Microphone for Cameras ECMW1M in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony ECM-W1M Wireless Microphone for Cameras ECMW1M:
| Compatibility | Receiver: Sony cameras and camcorders with Multi-Interface Shoe | | Capsule | Monaural electret condenser | | Pick-up Pattern | Non-directional | | Frequency Response | 300 Hz to 9 kHz | | Wireless Interface | Bluetooth - interoperability with other Bluetooth products is not guaranteed | | Wireless Range | Up to 100' / 30 m - depends on conditions | | Connectivity | Transmitter: 1 x 3.5 mm mini headphone jack
1 x 3.5 mm microphone input
Receiver: 1 x 3.5 mm mini headphone jack | | Power Source | Transmitter: 1 x AAA battery
Receiver: Power from Multi-Interface Shoe | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 4 to 140°F / -20 to 60°C | | Dimensions | Transmitter: 0.7 x 2.6 x 1.2" / 19 x 66 x 30 mm
Receiver: 1.1 x 1.5 x 1.1" / 27 x 38 x 29 mm | | Weight | Transmitter: 0.7 oz / 19 g
Receiver: 0.6 oz / 17 g | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.3 x 5.8 x 2.3" | |
