User manual Sony EVI-HD1 HD Color PTZ Camera EVI-HD1

Operating instructions and pdf manual for use - Sony EVI-HD1 HD Color PTZ Camera EVI-HD1 User manual, User manual Sony EVI-HD1 HD Color PTZ Camera EVI-HD1, Sony, EVI-HD1, HD, Color, PTZ, Camera, EVI-HD1, Video


User manual for Sony EVI-HD1 HD Color PTZ Camera EVI-HD1

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

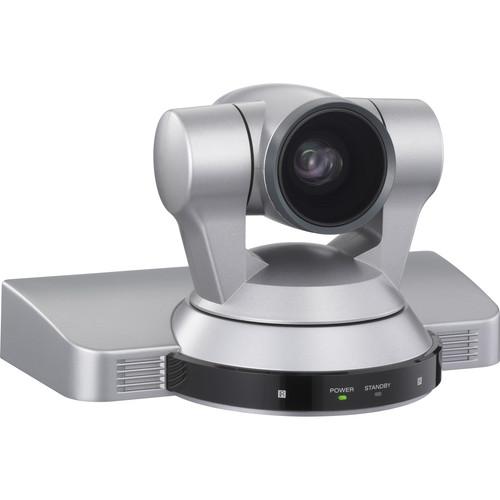

Sony  EVI-HD1 HD Color PTZ Camera EVI-HD1
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - PTZ Cameras
  • Safety instructions
  • Startup and operation of the ptz cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1, which address similar problems with connecting and setting up PTZ Cameras Sony.



User manual for the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1

The user manual for the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1 provides necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

The Sony EVI-HD1 is a color motorized PTZ camera that can be switched from displaying standard NTSC/PAL resolution video to outputting high definition images with a maximum resolution of 1080i. By starting off with such outstanding video quality, images will retain their sharpness and color depth even under extreme digital magnification.
If you own a Sony ptz cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1:
Signal System NTSC/PAL
Image Sensor 1/3" Color CMOS
Number of Pixels 2 Megapixels
Resolution HD

1080/59.94i
1080/50i
1080/29.97p
1080/25p
720/59.94p
720/50p
720/29.97p
720/25p

SD

Not Specified by Manufacturer
Lens HD-Focal Length: 3.4-33.9mm( F1.8-2.1)
Zoom: 10x optical, 40x digital
Focus: Auto/Manual
MOB: 100mm (wide)
Horizontal Viewing Angle: 8-70° (T/W)
Iris Operation Auto/Manual
Minimum Illumination 15 Lux (50 IRE)
Signal to Noise Ratio 50dB
Pan Angle +/- 100°
Pan Speed 300° per second
Tilt Angle +/- 25°
Tilt Speed 125° per second
Preset Positions 6
Microphone No
Picture Control Gain
White Balance
Electronic Shutter
Video Output HD

HD-SDI x1
HD Component (15-pin) x1

SD

RCA x1
S-Video x1
Audio Output No
Motion Detection No
Sync System Tri Level Sync / VD-OUT
Control Port 8-Pin DIN RS-232C x2 (1 in, 1 out)
Communication Protocol VISCA
Alarm I/O No
Power Requirements 12 VDC
Power Consumption 30W
Operating Temperature 32 - 104°F (0 - 40°C)
Dimensions (WxHxD) 10.3 x 6 x 6.7" (259 x 150 x 169mm)
Weight 4.5 lbs (2 kg)
Packaging Info
Package Weight 7.2 lb
Box Dimensions (LxWxH) 14.2 x 11.0 x 10.7"
The user manual for the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1 can be downloaded in .pdf format if it did not come with your new ptz cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony ptz camerass, where you can use our link to download the user manual for the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1.

The user manual lists all of the functions of the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1, all the basic and advanced features and tells you how to use the ptz cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony EVI-HD1 HD Color PTZ Camera EVI-HD1. User manuals are also available on the Sony website under Professional Video - PTZ Cameras.
