User manual Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33

Operating instructions and pdf manual for use - Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33 User manual, User manual Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33, Sony, FDR-AX33, 4K, Ultra, HD, Handycam, Camcorder, FDR-AX33,

User manual for Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 998 USD
We recommend checking out our discussion threads on the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33, which address similar problems with connecting and setting up Consumer Camcorders Sony.


User manual for the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33

The user manual for the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33 provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

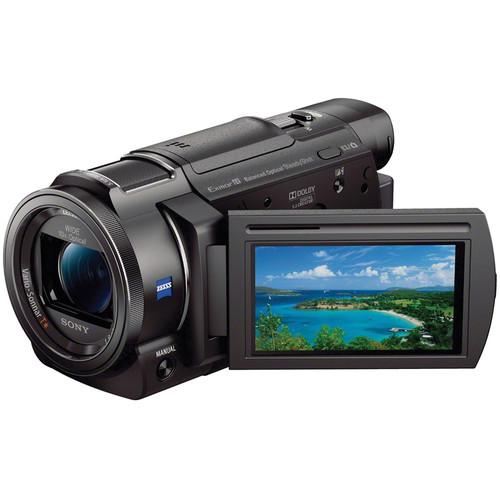

The Sony FDR-AX33 is a palm-sized Handycam camcorder that combines 4K video recording and Balanced Optical SteadyShot image stabilization to deliver clear, high-resolution video, even as you follow the action. It is equipped with a wide-angle Zeiss Vario Sonnar T* lens with 10x optical zoom and up to 20x Clear Image zoom and features an Exmor R CMOS sensor with Bionz X image processor that delivers Ultra HD (3840x2160) resolution video at 24 or 30 fps using Sony's XAVC S codec. It also records 1080p video up to 60 fps in XAVC S or AVCHD and takes up to 20.6MP upscaled (interpolated) still images.

Video and photos are recorded to Memory Stick Duo or SD memory cards. You can monitor and playback footage on the camcorder's 3.0" Xtra Fine LCD touchscreen display with 921K dot resolution, or the high-resolution 0.24" 1,555K dot OLED EVF. An HDMI output port is also provided for connecting to your HDTV to large-screen playback. For enhanced connectivity and remote control, the FDR-AX33 is Wi-Fi and NFC enabled. This lets you use your smartphone or tablet to control the camcorder, as well as wirelessly transfer files to your mobile device and even stream live to Ustream.

Designed for a wide range of users, the camcorder features a range of automatic image and audio options for easy point-and-shoot operation, as well as enhanced manual controls that give you more creative freedom. An assignable ring in the front of the camcorder can be assigned to control of zoom, focus, exposure, iris, shutter speed, exposure, or white balance. A rechargeable lithium-ion battery pack is included for powering the camcorder, which can be re-charged using the camcorder's built-in USB charging cable. Also included with the camcorder is an AC adapter, USB connection support cable, and an HDMI cable.
If you own a Sony consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33:
Specifications
    Camera
    Sensor 1/2.3"  CMOS
    Backside Illumination Yes
    Color Filter RGB
    Pixel Gross 18,900,000
    Effective Pixels 8.29 Video (Image Stabilizer Off)
    10.3 @ Photo 16:9
    7.74 @ Photo 4:3
    Optics
    Focal Length 3.8 - 38 mm
    35mm Equivalent Focal Length 29.8 - 298 movie
    26.8 - 268 still
    Maximum Aperture f/ 1.8 - f/ 3.4
    Focusing Distance 0.4" / 1.0 cm
    Zoom Optical: 10x
    Intelligent: 15x 4K
    Intelligent: 20x (in HD)
    Digital: 120x
    Filter Size 52 mm
    Recording
    System NTSC
    Recording Media Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Pro Duo (Mark 2), Memory Stick XC-HG Duo, SD/SDHC/SDXC
    Video Format UltraHD
    XAVC S
    3840 x 2160p / 30 fps (100 Mbps)
    3840 x 2160p / 24 fps (100 Mbps)
    3840 x 2160p / 30 fps (60 Mbps)
    3840 x 2160p / 24 fps (60 Mbps)
    High Definition
    XAVC S
    1920 x 1080p / 60 fps (50 Mbps)
    1920 x 1080p / 30 fps (50 Mbps)
    1920 x 1080p / 24 fps (50 Mbps)
    AVCHD
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080p / 30 fps (24 Mbps)
    1920 x 1080p / 30 fps (17 Mbps)
    1920 x 1080p / 24 fps (24 Mbps)
    1920 x 1080p / 24 fps (17 Mbps)
    1920 x 1080i / 60 fps (24 Mbps)
    1920 x 1080i / 60 fps (17 Mbps)
    1440 x 1080i / 60 fps (9 Mbps)
    1440 x 1080i / 60 fps (5 Mbps)
    MP4
    1280 x 720p / 30 fps (3 Mbps)
    Still Image Resolution JPEG: 20.6 Megapixel, 6048 x 3400 (16:9)
    JPEG: 10.3 Megapixel, 4288 x 2408 (16:9)
    JPEG: 8.3 Megapixel, 3840 x 2160 (16:9)
    JPEG: 7.7 Megapixel, 3216 x 2408 (4:3)
    JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
    Channels 5.1-Channel
    Audio Format Dolby Digital 2ch
    Dolby Digital 5.1
    LPCM
    Display
    Display Type LCD
    Touchscreen Yes
    Screen Size 3.0"
    Pixel Count 921,600
    Aspect Ratio 16:9
    Rotation Opening Angle: 90°
    Turning Angle: 270°
    2nd Display
    Display Type Viewfinder
    Screen Size .24"
    Pixel Count 1,555,200
    Exposure Control
    Shutter Speed 1/8-1/10000 sec
    Exposure Metering Multi, Spot
    Exposure Modes Modes: Auto, Manual
    Shooting Modes Auto
    Beach
    Fireworks
    Landscape
    Night Scene
    Portrait
    Snow
    Spotlight
    Sunset
    Self Timer 10 Sec
    Features
    Image Stabilization Optical
    Scene Modes Preset: Yes
    Lux 9 (4K: Standard; 1/60 shutter speed)
    6 (HD: Standard; 1/60 shutter speed)
    5 (4K: Low Light; 1/30 shutter speed)
    3 (HD: Standard; 1/30 shutter speed)
    0 (Nightshot; 1/60 shutter speed)
    White Balance Modes Auto
    Indoor 1
    Onepush
    Outdoors
    Built-in Mic Yes
    Built-in Speaker Yes
    Built-in Light/Flash Light - No
    Flash - No
    Wi-Fi Yes, 802.11b/g/n
    Accessory Shoe Multi Interface Shoe
    Input/Output Connectors
    Inputs 1x Microphone In
    Outputs 1x HDMI D (Micro)
    1x Multi-Terminal
    1x Headphone Out
    1x USB 2.0
    Microphone Input Yes
    Headphone Jack Yes
    General
    Languages Brazilian Portuguese
    English
    French
    Spanish
    Battery Rechargeable Lithium-Ion Battery Pack, 6.8 VDC, 1960 mAh,
    Providing up to 3.4 Hours per Charge
    Charging Method AC Adapter
    USB
    Power Adapter 100-240 VDC, 50/60HZ
    Operating Temperature 32 - 104°F (0 - 40°C)
    Dimensions (WxHxD) 2.8 x 3.1 x 6.1" / 7.1 x 7.9 x 15.5 cm with NP-FV50 battery
    Weight 1.32 lb / 600 g body only
    1.44 lb / 655 g with NP-FV50 battery
    Packaging Info
    Package Weight 2.7 lb
    Box Dimensions (LxWxH) 7.2 x 6.1 x 4.2"
    The user manual for the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33 can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony consumer camcorderss, where you can use our link to download the user manual for the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33.

    The user manual lists all of the functions of the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony FDR-AX33 4K Ultra HD Handycam Camcorder FDR-AX33. User manuals are also available on the Sony website under Camcorders - Consumer Camcorders.
