User manual Sony HDR-AS20 HD POV Action Cam HDRAS20/B

Operating instructions and pdf manual for use - Sony HDR-AS20 HD POV Action Cam HDRAS20/B User manual, User manual Sony HDR-AS20 HD POV Action Cam HDRAS20/B, Sony, HDR-AS20, HD, POV, Action, Cam, HDRAS20/B, Video


User manual for Sony HDR-AS20 HD POV Action Cam HDRAS20/B

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Sony  HDR-AS20 HD POV Action Cam HDRAS20/B
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Camcorders - Sports & Action Cameras
  • Safety instructions
  • Startup and operation of the sports & action cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 148 USD
We recommend checking out our discussion threads on the Sony HDR-AS20 HD POV Action Cam HDRAS20/B, which address similar problems with connecting and setting up Sports & Action Cameras Sony.



User manual for the Sony HDR-AS20 HD POV Action Cam HDRAS20/B

The user manual for the Sony HDR-AS20 HD POV Action Cam HDRAS20/B provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

With a 170° ultra-wide lens, the HDR-AS20 HD POV Action Camera, part of the Action Cam line from Sony, is designed to give you an immersive, first-person perspective on adventures of all kinds. It features 1080p video recording at 30 or 60 frames per second, a 720p30 mode for longer recording time, and a VGA (640 x 480) mode for producing compact, Web-friendly files. In addition to video, the Action Cam takes still photos at the camera's native effective resolution of 11.9-megapixel. Plus there is a 120 fps Super Slow Motion burst mode that creates a 4x slow-down in-camera without the quality loss of software-base slow motion.

Wi-Fi connectivity with NFC means you can operate the camera and monitor wirelessly from a smartphone or mobile device as well as pair it with the separately available RML-VR1 Live View Remote Watch from Sony. This wrist-worn controller has a built-in color screen for monitoring and can operate record start and stop plus snap a photo. You can even use one remote to control up to five compatible Action Cams simultaneously.

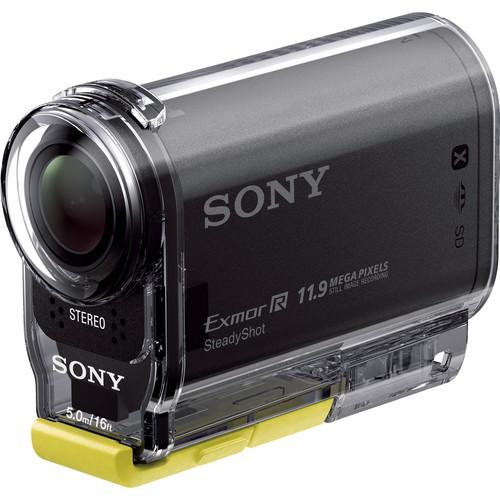

To further "adventure-proof" the camera the SPK-AS2 housing is included. Waterproof to 15', the housing also protects the camera from dust and dirt, as well as drops from as high as 5 feet. There is a 1/4"-20 socket on the bottom allowing the camera to be used with standard tripods, monopods, suction-cup mounts, and more.
If you own a Sony sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony HDR-AS20 HD POV Action Cam HDRAS20/B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony  HDR-AS20 HD POV Action Cam HDRAS20/BDownload user manual for Sony HDR-AS20 HD POV Action Cam HDRAS20/B
(PDF file, 1.24 MB)
Additional parameters of the Sony HDR-AS20 HD POV Action Cam HDRAS20/B:
Camera
Sensor 1x 1/2.3"  CMOS Sensor
Backside Illumination Yes
Color Filter RGB
Pixel Gross 16,800,000
Effective Pixels 11,900,000 16:9
Optics
35mm Equivalent Focal Length 15.3 without SteadyShot
21.3 with SteadyShot
Maximum Aperture f/ 2.8
Focal Distance 2.5 mm
Focusing Distance 11.9" / 30.2 cm
Angle of View 170° (without SteadyShot)
120° (with SteadyShot)
Zoom None
Recording
System NTSC/PAL
Recording Media Memory Stick Micro, microSD/HC/XC
Video Format High Definition
H.264
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080p / 50 fps (28 Mbps)
High Definition
H.264
1920 x 1080p / 30 fps (16 Mbps)
1920 x 1080p / 25 fps (16 Mbps)
High Definition
H.264
1280 x 720p / 30 fps (6 Mbps)
1280 x 720p / 25 fps (6 Mbps)
Standard Definition
H.264
640 x 480p / 30 fps (3 Mbps)
640 x 480p / 25 fps (3 Mbps)
Aspect Ratio 16:9
Slow Motion Mode 60 fps recorded @ 1280 x 720p
120 fps recorded @ 1280 x 720p
Still Image Resolution JPEG: 11.9 Megapixel (16:9)
Channels 2.0-Channel Stereo
Audio Format AAC-LC
Exposure Control
Shutter Speed 1/30-1/10000 sec
Interval Recording 5 sec
10 sec
30 sec
60 sec
Features
Image Stabilization Digital
Scene Modes Preset: Yes
Shockproof Rating 5.0' / 1.5 m
Waterproof Depth Rating 15.0' / 3.0 m (Waterproof Housing)
Dustproof Rating None
Lux 6
White Balance Modes Auto
Built-in Mic Yes
Built-in Speaker Yes
Wi-Fi Yes, 802.11b/g/n
Tripod Mount 1/4" - 20

Requires included housing

Input/Output Connectors
Outputs 1x HDMI D (Micro)
1x Composite Video (out) requires VMC-15MR2, available separately
1x USB Micro-B
Microphone Input Yes
General
Languages English
Battery Rechargeable Lithium-Ion Battery Pack, 3.6 VDC
Charging Method USB
Charging Time 4 hours
Power Adapter 5 VDC
Power Consumption Recording:1.8 W
Dimensions (WxHxD) 1.0 x 1.9 x 3.2" / 24.5 x 47.0 x 82.0 mm
Weight 2 oz / 57 g without battery
2.9 oz / 82 g with NP-BX1 battery
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 6.4 x 4.9 x 3.2"
The user manual for the Sony HDR-AS20 HD POV Action Cam HDRAS20/B can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony sports & action camerass, where you can use our link to download the user manual for the Sony HDR-AS20 HD POV Action Cam HDRAS20/B.

The user manual lists all of the functions of the Sony HDR-AS20 HD POV Action Cam HDRAS20/B, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.
