User manual Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800

Operating instructions and pdf manual for use - Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800 User manual, User manual Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800, Sony, HDW-1800, CineAlta, HDCAM, Studio, Editing, Re


User manual for Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800

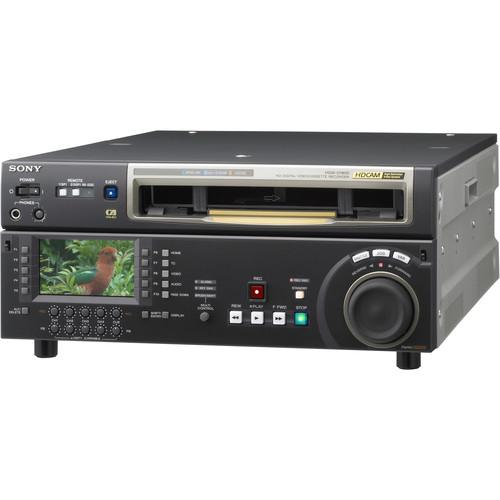

Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Video Players & Recorders
  • Safety instructions
  • Startup and operation of the video players & recorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 33 USD
We recommend checking out our discussion threads on the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800, which address similar problems with connecting and setting up Video Players & Recorders Sony.



User manual for the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800

The user manual for the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Video Players & Recorders.

The Sony HDW-1800 is a CineAlta HDCAM studio editing recorder featuring a wide variety of advanced features, making the adoption of and integration of professional-grade high definition acquisition a more seamless transition than ever before. The HDCAM format has been widely accepted by top professionals as the HD format of choice and shows Sony's commitment to providing the highest quality solutions for the most demanding applications.

The deck has the ability to fully integrate HDV content for additional high definition support. Moreover, the HDW-1800 can up and down-convert footage to HDCAM, making it ideal for mastering for broadcast or ingesting into an HDCAM post-production workflow.
If you own a Sony video players & recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800:
Signal System 1080: 59.94i 29.97PsF, 50i, 25PsF, 24PsF, 23.98PsF
Tape Format HDCAM
Tape Speed HDCAM: 59.94i, 29.97PsF: 96.7 mm/s
50i, 25PsF: 80.6 mm/s
24PsF, 23.98PsF: 77.4 mm/s
Signal-to-Noise Ratio Analog Composite Output: 53 dB
Maximum Recording Time 59.94i, 29.97PsF: 124 min (BCT-124HDL Cassette)
50i, 25PsF: 149 min (BCT-124HDL Cassette)
24PsF, 23.98PsF: 155 min (BCT-124HDL Cassette)
59.94i, 29.97PsF: 40 min (BCT-40HD Cassette)
48 minutes (50i, 25PsF, with BCT-40HD Cassette)
50 minutes (24PsF, 23.98PsF, with BCT-40HD Cassette)
Audio Signal Format HDCAM
Frequency Response 20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz)
Signal to Noise Ratio >45 dB
Input and Output Connectors HD-SDI: BNCx1 (x1 Input, x1 Output)
SD-SDI: BNCx3 (x1 Input, x1 Output)
Reference Video: BNCx2 (up to x2 Input)
Digital Audio Input: BNCx2 AES/EBU (x1)
Digital Audio Output: BNCx3 AES/EBU (x2 Channel)
Analog Audio Input: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Analog Audio Output: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Time Code: XLR 3-Pin (x1 Input, x1 Output)
i.LINK (HDV 1080i): FireWire, 6-Pin (x1 Input)
Composite Video: BNCx3 (x1 Output)
Monitor L/R: XLR 3-Pin, Male (x1 Output)
Headphones: JM-60 Stereo Jack
Remote: D-Sub 9-Pin (x1 Input, x1 Output)
RS-232C: D-Sub 9-Pin
Remote2: Parallel D-Sub-50 (x1 Input/Output)
Video Control: D-Sub 9-Pin Memory Reader: Memory Stick
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption 150W
170W with Optional Cards
Operating Temperature 40-104°F (5-40°C)
Dimensions (WxHxD) 16.9 x 6.9 x 21.5" (42.7 x 17.4 x 54.4 cm)
Weight 48.5 lb (22 kg)
Packaging Info
Package Weight 56.6 lb
Box Dimensions (LxWxH) 27.0 x 21.5 x 14.0"
The user manual for the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800 can be downloaded in .pdf format if it did not come with your new video players & recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony video players & recorderss, where you can use our link to download the user manual for the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800.

The user manual lists all of the functions of the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800, all the basic and advanced features and tells you how to use the video players & recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony HDW-1800 CineAlta HDCAM Studio Editing Recorder HDW1800. User manuals are also available on the Sony website under Professional Video - Recorders & Duplication - Video Players & Recorders.
