User manual for the Sony PMWF5A7REL PMW-F5 & a7S II Production Crew PMWF5A7SEL
The user manual for the Sony PMWF5A7REL PMW-F5 & a7S II Production Crew PMWF5A7SEL provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

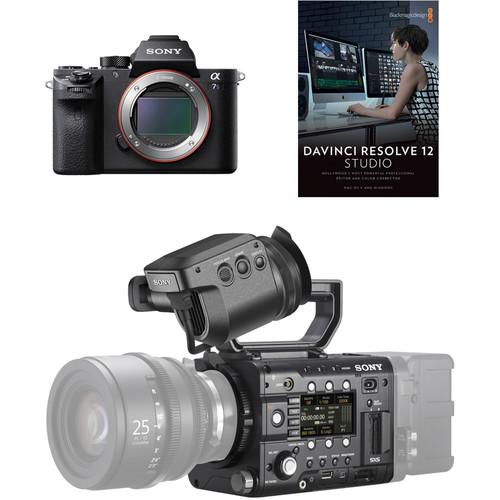

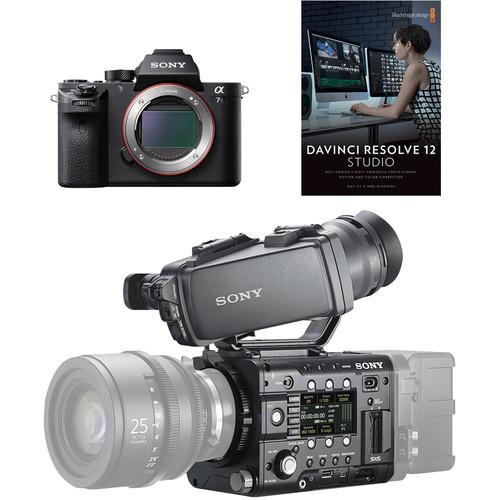

The Sony PMWF5A7REL PMW-F5 & a7S II Production Crew Bundle is suitable for owners/operators or anyone looking to start building their own 4K camera package. It includes a Sony PMW-F5 with the 4K upgrade, which allows you to capture 4K video internally. The included Sony a7S Mark II provides you with a second camera capable of recording 4K, which makes this a fairly well rounded A & B camera package. The smaller a7S II can be positioned in spaces too tight for the F5 without having to sacrifice image resolution. The bundle also includes an SxS media card reader, shoulder mount, and a license for DaVinci Resolve 12 Studio.
The included F5 CineAlta Camera features an 8.9MP Super35-sized sensor with 14 stops of dynamic range and records 4K, 2K, and HD video. It comes with the 4K upgrade installed and that enables XAVC 4K/QFHd recording and playback, 4K SDI and HDMI output, and simultaneous recording of XAVC 4K/QFHD and MPEG HD. The DVF-EL100 OLED Viewfinder features a 1280 x 720 resolution and 10,000:1 contrast ratio that helps reproduce deep black tonal gradations. The included shoulder mount allows you to comfortably hand-hold the F5 Camera for documentary style shooting. It features a low profile to maintain a low center of gravity and a sliding balance mechanism for adjusting the camera's balance front to back.
The a7S Mark II Mirrorless Digital Camera features a full-frame 12.2MP Exmor CMOS sensor and is capable of internal UHD 4K recording at 30 fps with full pixel readout as well as 1080p recording at up to 120 fps, all in the XAVC S format. For both stills and video recording, the sensor is paired with the BIONZ X image processor to enable expanded sensitivity to ISO 409600, continuous shooting to 5 fps, and fast intelligent autofocus with low-light sensitivity to -4 EV.
If you own a Sony digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony PMWF5A7REL PMW-F5 & a7S II Production Crew PMWF5A7SEL in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PMWF5A7REL PMW-F5 & a7S II Production Crew PMWF5A7SEL:
MPEG-2 Long GOP HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
Audio Recording Format
Linear PCM (2 ch, 24-bit, 48-kHz)
Recording Modes
XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p MPEG4 SStP: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p MPEG2 HD: 1280 x 720 at 50p, 59.94p
With firmware update 2.0 (already available) installed: 4K RAW/24p, 16-bit, to an optional AXS-R5 external recorder 2K RAW/120p/180p/240p, 16-bit, to AXS-R5 1080p 4:2:2 at up to 120fps internally in XAVC
With firmware update 3.0 (due for release shortly) installed: 4K RAW 1p to 60p, 16-bit, to an optional AXS-R5 external recorder 2K RAW 1p to 240p, 16-bit, to AXS-R5 1080p 4:2:2 1fps to 180fps internally in XAVC
Shutter Speed
1/24s to 1/6,000s
Shutter Angle
4.2 - 360°(electrical shutter)
Slow Shutter
2, 3, 4, 5, 6, 7, and 8 frame accumulation
Slow & Quick Motion Function
XAVC HD/2K: 1-120p (NTSC) at 23.98p, 29.97p XAVC HD/2K: 1-100p (PAL) at 25p
White Balance
Preset (3200K, 4300K, 5500K), Memory, ATW
Gain
-3, 0, 3, 6, 9, 12, 18 dB, AGC
Gamma Curve
Standard (x6) HG1, HG2, HG3, HG4, HG7 and HG8 S-Log2 Gamma
Type: Electronic & Mechanical Speed: 30 - 1/8000 second
Metering Method
Center-weighted average metering, Multiple, Spot metering
Exposure Modes
Modes: Aperture Priority, Auto, Intelligent Auto, Manual, Movie, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto, Sweep Panorama Metering Range: EV -3.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
White Balance Modes
Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Continuous Shooting
Up to 5 fps at 12.2 MPfor up to 200 frames Up to 2.5 fps at 12.2 MPfor up to 200 frames
