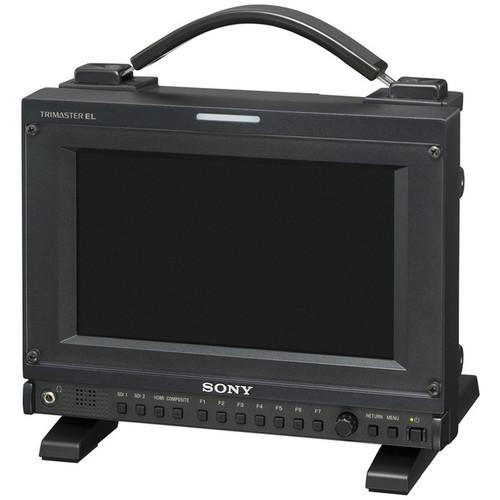

The PVM-741 TRIMASTER EL OLED 7.4” Monitor with 3G-SDI and HDMI is a high-performance monitor from Sony. It is designed with two 3G/HD/SD-SDI inputs, smart functions and features, OLED (Organic Light-Emitting Diode) display panel technology, and features a 10-bit driver, delivering a wide color gamut, deep blacks, and quick pixel response. In addition to this picture performance, the PVM-741 incorporates an eight-channel audio level meter display for precise sound monitoring.

Built-in signal analysis tools and the camera focus function make the monitor ideal for use in a wide range of professional monitoring applications, including in-studio camera monitoring, outside broadcast, on-set acquisition, field production, editing studio, and research and development. It features internal conversions of interlaced to progressive/progressive to interlaced, allowing the monitor to display either format.
If you own a Sony on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PVM-741 TRIMASTER EL OLED 7.4" Monitor PVM741/A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PVM-741 TRIMASTER EL OLED 7.4" Monitor PVM741/A:
Picture Performance
Panel OLED panel
Picture Size Diagonal: 7.4" / 188 mm
Resolution (HxV pixels) 960 x 540 pixels (QHD)
Effective Picture Size (H x V) 6.5 x 3.6" / 163.9 x 92.2 mm
Aspect Ratio 16:9
Panel Drive RGB 10-bit
Viewing Angle Panel Specification: 89 / 89 / 89 / 89° (typical)
Up / down / left / right contrast >10:1
Scan Normal: 0%
Over: 5%
Color Temperature D65
D93
User
Input
Composite 1 x BNC, 1 Vpp ±3 dB sync negative
SDI 2 x BNC
HDMI 1 x HDMI (HDCP compliant)
Audio 1 x 3.5 mm Stereo mini jack, -5 dBu 47 kΩ or higher
Remote Parallel: 1 x 8-Pin modular connector (pin-assignable)
LAN Serial Remote: 1 x RJ-45 modular connector
Ethernet
10BASE-T/100BASE-TX
Connector DC IN: 1 x XLR-type 4-pin (male), 12 VDC (output impedance 0.05 Ω or less)
Output
Composite 1 x BNC
Loop-through, with 75 Ω automatic termination
SDI 1 x BNC
Output Signal Amplitude: 800 mVpp ±10%
Output Impedance: 75 Ω Unbalanced
Audio Monitor Output: 1 x 3.5 mm Stereo mini jack
Speaker Built-In: 0.5 W (mono)
Headphones Output Level 1 x 3.5 mm Stereo mini jack
General
Power Requirement 100 to 240 VAC, 50/60 Hz
0.5 to 0.3 A, 12 VDC, 1.9 VAC
Power Consumption Approximately 30 W (maximum)
Operating Temperature 32 to 104°F / 0 to 40°C
Recommended: 68 to 86°F / 20 to 30°C
Operating Humidity 30 to 85% (no condensation)
Temperature Storage and Transport: 4 to +140°F / -20 to 60°C
Humidity Storage and Transport: 0 to 90%
Pressure Level Operating, Storage, and Transport: 700 to 1,060 hPa
Dimensions (W x H x D) With AC Adapter Attached:
8.9 x 7.3 x 6.4" / 222.4 x 183.5 x 161.8 mm (with stand)
8.9 x 6.6 x 2.9" / 222.4 x 166.0 x 70.0 mm (without stand)
Mass 4.37 lb / 2 kg
5.75 lb / 2.6 kg (with AC adapter installed)
Packaging Info
Package Weight 9.8 lb
Box Dimensions (LxWxH) 12.5 x 11.0 x 11.0"
