User manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5K
The user manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5K provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

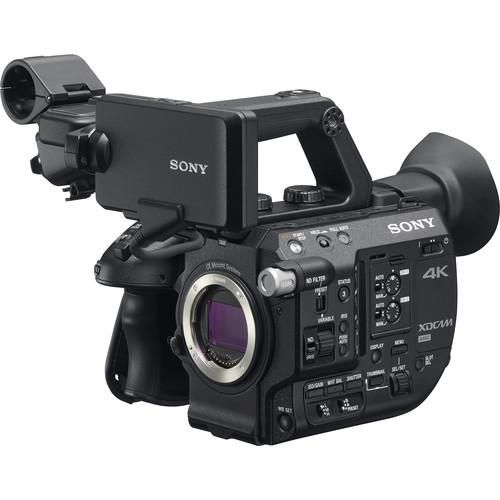

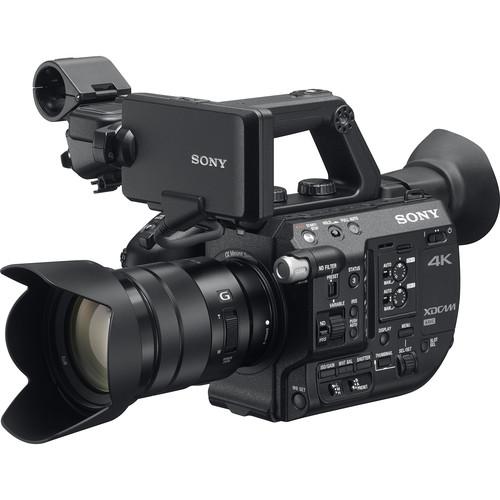

Bringing a smaller, handheld form factor to Sony's line of digital cinema cameras, the PXW-FS5 XDCAM Super 35 Camera System captures UHD video using a Super 35mm-sized sensor for cinematic imagery. Though small in size, it incorporates professional features that differentiate it from consumer and DSLR/mirrorless cameras and make it suitable for use on productions as diverse as cinéma vérité-style documentaries, reality TV, and commercial and corporate applications. The included 7x zoom lens covers APS-C-sized and Super 35mm-sized sensors, features optical steady shot image stabilization, and has a 35mm equivalent focal length of 27 to 158mm. The camera's E-mount is machined from stainless steel and allows you to use E-mount lenses or accept most 35mm lenses with the use of adapters, including PL, EF, Leica, and Nikon lenses. The camera records in your choice of XAVC-L or AVCHD. It incorporates two SD media card slots that support simultaneous or relay recording. Outputs include both HDMI and SDI and Sony's proprietary Multi-Terminal. The body also incorporates an Ethernet connector, headphone jack, and XLR audio inputs. All connectors and card slots are covered to protect from dust incursion. The camera supports Wi-Fi and NFC functionality, allowing you live stream from the camera, or control it from a wireless device.
|
If you own a Sony digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5K in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5K:
Imaging System | Sensor Super 35mm Single-Chip 11.6MP Exmor CMOS
Included Lens Focal Length: 18 to 105mm (comparable 35mm Focal Length: 27 to 158mm) Iris: f/4 to f/22 Angle of View: 77.4 to 15.6° Minimum Focus Distance: 1.48' / 45 cm Image Stabilization: Yes Autofocus: Yes Filter Thread: 72mm Dimensions (D x L): Approx. 3.07 x 4.33" / 7.8 x 11 cm Weight: 15.06 oz / 427 g | Effective Picture Size (H x V) | 3840 x 2160 | LCD Monitor | 3.5" / 8.8 cm Approx: 1.56M dots | Viewfinder | 0.39" / 0.99 cm OLED Approx: 1.44M dots | ND Filter | Variable: 1/4 to 1/128 Presets: Clear, 1/4, 1/26, 1/64 | Sensitivity | ISO Rating: 3200 (S-Log3 Gamma) Lux: 2000 lx, 89.9% reflectance Video Gamma: T14(3840 x 2160 @ 23.98p mode, 3200K)` | Min. Illumination | 60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24) 50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25) | S/N Ratio | 57 db (Y) (typical) | Recording Format | XAVC Long 100Mb/s: 3840 x 2160p 29.97 / 25 / 23.98 60Mb/s: 3840 x 2160p 29.97 / 25 / 23.98 50Mb/s: 1920 x 1080p 59.94 / 50 / 29.97 / 25 / 23.98 50Mb/s: 1920 x 1080i 59.94 / 50 50Mb/s: 1280 x 720p 59.94 / 50 35Mb/s: 1920 x 1280p 59.94 / 50 / 29.97 / 25 / 23.98 25Mb/s: 1920 x 1080i 59.94 / 50
XAVC Proxy H.264 / AVC 4:2:0 8-bit MP4 wrapper 1280 x 720: 3 to 6Mb/s 640 x 360: 1 to 3Mb/s
AVCHD 28Mb/s (PS): 1920 x 1080p 59.94 / 50 24Mb/s (FX): 1920 x 1080p 29.97 / 25 / 23.98 24Mb/s (FX): 1920 x 1080i 59.94 / 50 24Mb/s (FX): 1280 x 720p: 59.94 / 50 17Mb/s (FH): 1920 x 1080p 29.97 / 25 / 23.98 17Mb/s (FH): 1920 x 1080i 59.94 / 50 17Mb/s (FH): 1280 x 720p: 59.94 / 50 9Mb/s (HQ): 1280 x 720p: 59.94 / 50 | Audio Recording Format | XAVC Long Linear PCM 2 ch, 24-bit, 48kHz
AVCHD Linear PCM 2 ch, 16-bit, 48kHz Dolby digital 2ch, 16-bit, 48kHz | Shutter Speed | 60i: 1/8 to 1/10,000 50i/24p:1/6 to 1/10,000 | Gain Selection | 0, 3, 6, 9, 12, 15, 18, 24,27, 30dB, AGC | Gamma Curve | Selectable | White Balance | Preset Memory A Memory B (1500K-50000K)/ATW | Slow & Quick Motion Function | 3840 x 2160 30p: Frame rate selectable 1, 2, 4, 8, 15, 30 3840 x 2160 25p: Frame rate selectable 1, 2, 3, 6, 12, 25 1920 x 1080 60i: Frame rate selectable 1, 2, 4, 8, 15, 30, 60 1920 x 1080 50i: Frame rate selectable 1, 2, 3, 6, 12, 25, 50 | Super Slow Motion | 60i: Frame rate selectable ( 120, 240, 480, 960) 50i: Frame rate selectable ( 100, 240, 400, 800) | WiFi Compatible | Format: IEEE 802.11 b/g/n Frequency Band: 2.4 GHz Security: WEP / WPA-PSK / WPA2-PSK NFC: NFC Forum Type 3 Tag Compliant | Media Card Slots | 1 x MS/SD (dual Memory Stick/SD) 1 x SD | Input and Output Connectors | Audio Input 2 x 3-pin XLR Line/mic/mic +48 SDI Output 1 x BNC HD/3G-SDI SMTPE292M/424M/425M
HDMI 2.0 1 x Type A
USB 1 x Multi/Micro (composite video integrated into Multi/Micro USB jack)
Headphone 1 x Stereo mini jack
Remote Stereo mini jack (Φ2.5 mm)
Wired LAN 1 x RJ-45 (100Base-TX/10Base-T | Accessory Shoe | Multi-Interface (MI) shoe | Power Requirement | Battery Pack: 14.4 VDC AC Adapter: 12 VDC | Power Consumption | NTSC: Approx 11.8W PAL: Approx 11.5W Note: While recording with LCD on, EVF off, when external device connector is not used. | Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 140°F / -20 to 60°C) | Dimensions | Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx) Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip) | Weight | Body Only: 29.2 oz / 827.8 g Body, Lens & Accessories: 4.9 lb / 2.23 kg (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip) | Package Weight | 9.85 lb | Box Dimensions (LxWxH) | 12.1 x 11.5 x 10.4" | |
