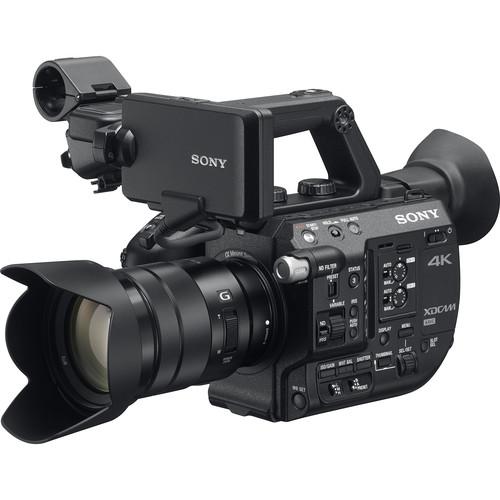

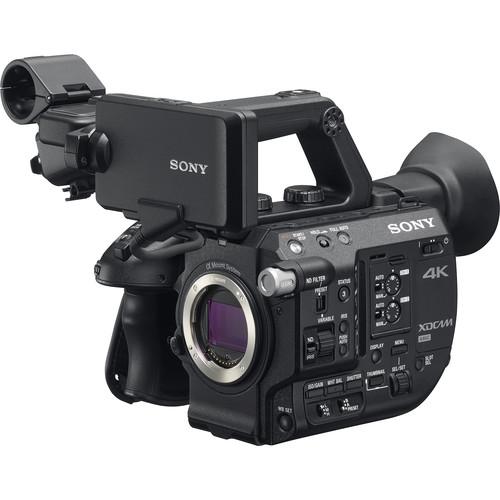

Bringing a smaller, handheld form factor to Sony's line of digital cinema cameras, the PXW-FS5 XDCAM Super 35 Camera System captures UHD video using a Super 35mm-sized sensor for cinematic imagery. Though small in size, it incorporates professional features that differentiate it from consumer and DSLR/mirrorless cameras and make it suitable for use on productions as diverse as cinéma vérité-style documentaries, reality TV, and commercial and corporate applications.

The camera's E-mount is machined from stainless steel and allows you to use E-mount lenses or accept most 35mm lenses with the use of adapters, including PL, EF, Leica, and Nikon lenses. The camera records in your choice of XAVC-L or AVCHD. It incorporates two SD media card slots that support simultaneous or relay recording. Outputs include both HDMI and SDI and Sony's proprietary Multi-Terminal. The body also incorporates an Ethernet connector, headphone jack, and XLR audio inputs. All connectors and card slots are covered to protect from dust incursion. The camera supports Wi-Fi and NFC functionality, allowing you live stream from the camera, or control it from a wireless device.
If you own a Sony digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5:
Specifications
Imaging System Sensor
Super 35mm Single-Chip 11.6MP Exmor CMOS
Effective Picture Size (H x V) 3840 x 2160
LCD Monitor 3.5" / 8.8 cm
Approx: 1.56M dots
Viewfinder 0.39" / 0.99 cm OLED
Approx: 1.44M dots
ND Filter Variable: 1/4 to 1/128
Presets: Clear, 1/4, 1/26, 1/64
Sensitivity ISO Rating: 3200 (S-Log3 Gamma)
Lux: 2000 lx, 89.9% reflectance
Video Gamma: T14(3840 x 2160 @ 23.98p mode, 3200K)`
Min. Illumination 60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24)
50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25)
S/N Ratio 57 db (Y) (typical)
Recording Format XAVC Long
100Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
60Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080p 59.94 / 50 / 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080i 59.94 / 50
50Mb/s: 1280 x 720p 59.94 / 50
35Mb/s: 1920 x 1280p 59.94 / 50 / 29.97 / 25 / 23.98
25Mb/s: 1920 x 1080i 59.94 / 50

XAVC Proxy
H.264 / AVC
4:2:0 8-bit
MP4 wrapper
1280 x 720: 3 to 6Mb/s
640 x 360: 1 to 3Mb/s

AVCHD
28Mb/s (PS): 1920 x 1080p 59.94 / 50
24Mb/s (FX): 1920 x 1080p 29.97 / 25 / 23.98
24Mb/s (FX): 1920 x 1080i 59.94 / 50
24Mb/s (FX): 1280 x 720p: 59.94 / 50
17Mb/s (FH): 1920 x 1080p 29.97 / 25 / 23.98
17Mb/s (FH): 1920 x 1080i 59.94 / 50
17Mb/s (FH): 1280 x 720p: 59.94 / 50
9Mb/s (HQ): 1280 x 720p: 59.94 / 50
Audio Recording Format XAVC Long
Linear PCM 2 ch, 24-bit, 48kHz

AVCHD
Linear PCM 2 ch, 16-bit, 48kHz
Dolby digital 2ch, 16-bit, 48kHz
Shutter Speed 60i: 1/8 to 1/10,000
50i/24p:1/6 to 1/10,000
Gain Selection 0, 3, 6, 9, 12, 15, 18, 24,27, 30dB, AGC
Gamma Curve Selectable
White Balance Preset
Memory A
Memory B (1500K-50000K)/ATW
Slow & Quick Motion Function 3840 x 2160 30p: Frame rate selectable 1, 2, 4, 8, 15, 30
3840 x 2160 25p: Frame rate selectable 1, 2, 3, 6, 12, 25
1920 x 1080 60i: Frame rate selectable 1, 2, 4, 8, 15, 30, 60
1920 x 1080 50i: Frame rate selectable 1, 2, 3, 6, 12, 25, 50
Super Slow Motion 60i: Frame rate selectable ( 120, 240, 480, 960)
50i: Frame rate selectable ( 100, 240, 400, 800)
WiFi Compatible Format: IEEE 802.11 b/g/n
Frequency Band: 2.4 GHz
Security: WEP / WPA-PSK / WPA2-PSK
NFC: NFC Forum Type 3 Tag Compliant
Media Card Slots 1 x MS/SD (dual Memory Stick/SD)
1 x SD
Input and Output Connectors Audio Input
2 x 3-pin XLR
Line/mic/mic +48
SDI Output
1 x BNC HD/3G-SDI
SMTPE292M/424M/425M

HDMI 2.0
1 x Type A

USB
1 x Multi/Micro (composite video integrated into Multi/Micro USB jack)

Headphone
1 x Stereo mini jack

Remote
Stereo mini jack (Φ2.5 mm)

Wired LAN
1 x RJ-45 (100Base-TX/10Base-T
Accessory Shoe Multi-Interface (MI) shoe
Power Requirement Battery Pack: 14.4 VDC
AC Adapter: 12 VDC
Power Consumption NTSC: Approx 11.8W
PAL: Approx 11.5W
Note: While recording with LCD on, EVF off, when external device connector is not used.
Temperature Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C)
Dimensions Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx)
Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
Weight Body Only: 29.2 oz / 827.8 g
Body, Lens & Accessories: 4.9 lb / 2.23 kg (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
Packaging Info
Package Weight 8.35 lb
Box Dimensions (LxWxH) 12.2 x 11.6 x 10.6"
The user manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5 can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony digital cine camerass, where you can use our link to download the user manual for the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5.

The user manual lists all of the functions of the Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5, all the basic and advanced features and tells you how to use the digital cine cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.
