User manual Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US

Operating instructions and pdf manual for use - Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US User manual, User manual Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US, Soundcraft, EPM, 8, 8, Mono, , 2, Stereo, Audio, Conso


User manual for Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Soundcraft EPM 8 - 8 Mono   2 Stereo Audio Console RW5735US
  • Manufacturer: Soundcraft
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Soundcraft
  • Settings and expert assistance
  • Contact Soundcraft service
  • Troubleshooting
  • Warranty information
  • Price: 249 USD

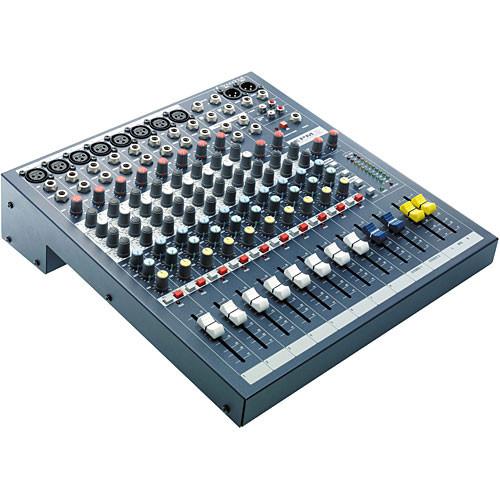

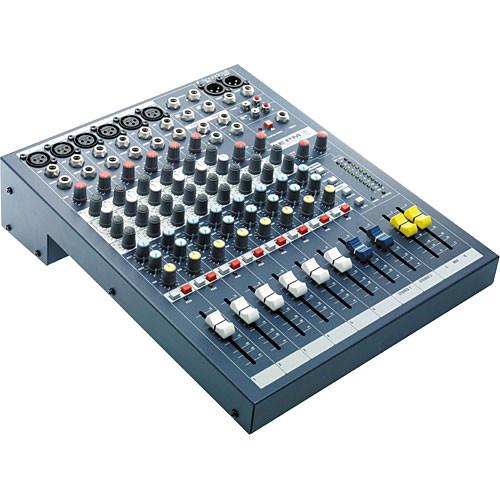

Soundcraft EPM 8 - 8 Mono   2 Stereo Audio Console RW5735US Soundcraft EPM 8 - 8 Mono   2 Stereo Audio Console RW5735US Soundcraft EPM 8 - 8 Mono   2 Stereo Audio Console RW5735US
Click to enlarge image

We recommend checking out our discussion threads on the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US, which address similar problems with connecting and setting up Sound Reinforcement Mixers Soundcraft.



User manual for the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US

The user manual for the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

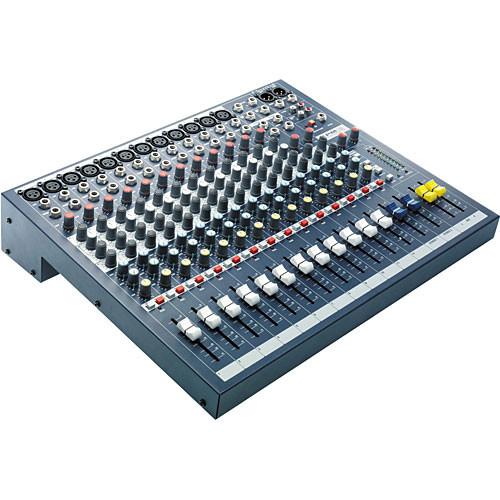

The Soundcraft EPM Series provides a straight-forward, yet professional alternative to complex audio mixers. Constructed in a 6-, 8- or 12-channel chassis, the EPM mixers are well-suited for recording and sound reinforcement applications.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Soundcraft EPM 8 - 8 Mono   2 Stereo Audio Console RW5735USDownload user manual for Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US
(PDF file, 6.53 MB)
Additional parameters of the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US:
Total # Of Inputs 8x Mono
2x Stereo
Mic/Line Inputs 8x Line Mono: 1/4" TRS Phone
2x Line Stereo: L/R 1/4" TRS Phone
8x Microphone: 3-pin XLR
Stereo Line Inputs 2x Stereo: L/R 1/4" TRS Phone
In-Line Inputs/Returns No
AUX Sends 2x Aux Sends
AUX Returns No dedicated returns
Inserts 1/4" TRS Phone - Mono Inputs, Main Stereo Output
BUS (Group) Outputs Stereo Output Only
2 Trk Master I/O Mix L/R: Stereo Paired L/R RCA Phono
ALT I/O No
Monitor Outputs Monitor: L/R Stereo Paired 1/4" TRS Phone
EQ Section Mono Inputs +/- 15 dB
Lo: 80 Hz
Mid: 150 Hz - 3.5 kHz (swept)
Hi: 12 kHz
Q: 1.5
Stereo Inputs +/-15 dB
Lo: 80 Hz
Mid: 720 Hz
Hi: 12 kHz
Solo/Mute All Input Channels
Channel Level Control 100 mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48 V Phantom
Metering 10-Segment L/R Peak LEDs
+48 V Phantom Power LED
PFL Active LED
Power Indicator LED
Frequency Response 20 Hz to 20 kHz +/-1.5 dB
Dynamic Range Not specified by manufacturer
Signal-to-Noise Ratio Noise (22 Hz - 22 kHz measurement bandwidth)
Mic EIN @ max gain, 150 ohms source impedance -127 dBu
Mix @ max, faders to down <-85 dBu
Total Harmonic Distortion (THD) Mic sensitivity 30 dB, +14 dBu @ mix output: <0.02%
Power Supply Integral lightweight switched-mode PS
AC mains supply: 85-270 V AC, 50/60 Hz universal input
Power Consumption: Less than 20 W
Dimensions (W x H x D) 13.0 x 3.56 x 14.3" (330 x 90.5 x 362 mm)
Weight 15.87 lb (7.2 kg)
Packaging Info
Package Weight 13.0 lb
Box Dimensions (LxWxH) 18.0 x 17.0 x 7.8"
The user manual for the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US.

The user manual lists all of the functions of the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft EPM 8 - 8 Mono 2 Stereo Audio Console RW5735US. User manuals are also available on the Soundcraft website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
