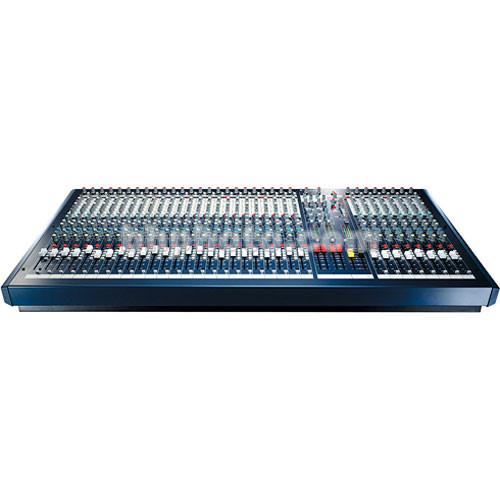

The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 16 channels for recording and monitoring applications.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft LX7 II - 24 Channel Recording Mixer RW5675 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft LX7 II - 24 Channel Recording Mixer RW5675:
Total # Of Inputs 24 - Total Line Inputs
Mic/Line Inputs 24 - Balanced 1/4" TRS Phone Inputs
24 - Balanced XLR Mic Inputs
Stereo Line Inputs 2 - L/R Stereo Paired 1/4" TRS Phone
In-Line Inputs/Returns No
AUX Sends 6 - 1/4" TRS Phone
AUX Returns 2 - L/R Stereo Paired 1/4" TRS Phone )
Inserts No
BUS (Group) Outputs AUX Outputs: 6 - 1/4" TRS Phone
2 Trk Master I/O Main Outputs: L/R Balanced 3-pin XLR male
ALT I/O Monitor Output: L/R 1/4" TRS Phone
2 Trk Input: L/R RCA Phono jacks
Monitor Outputs Monitor Output: L/R 1/4" TRS Phone
EQ Section 100Hz, 18dB per octave
HF: 12kHz, +/-15dB, 2nd order shelving
Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1
Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1
LF: 80Hz, +/-15dB 2nd order shelving
Solo/Mute Mute & Solo on all channels
Channel Level Control 100mm Faders
Trim/Gain Control Sealed Rotary Potentiometers
Phantom Power +48 Volt
Metering 12-segment multicolored LED: Group Masters, L/R Master sections
AFL/PFL LED indicator
Frequency Response XLR input to any output:
20Hz to 20kHz, +0/-1dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio < -128dBu (150 Ohm source)
22Hz - 22kHz bandwidth, unweighted
Total Harmonic Distortion (THD) All measurements at +10dBu output 30dB gain
XLR Input to Direct Output: <0.007% @ 1kHz
XLR Input to Mix Output: <0.008% @ 1kHz
Power Supply Universal Mains input 85V-270V AC, 50Hz/60Hz
Power Consumption - less than 50W
Dimensions 33.7 x 6.5 x 19.8" (856 x 164 x 503mm) (WxHxD)
Weight 48lbs (21.8kg)
Packaging Info
Package Weight 47.4 lb
Box Dimensions (LxWxH) 37.0 x 25.0 x 13.0"
