User manual for the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676

The user manual for the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

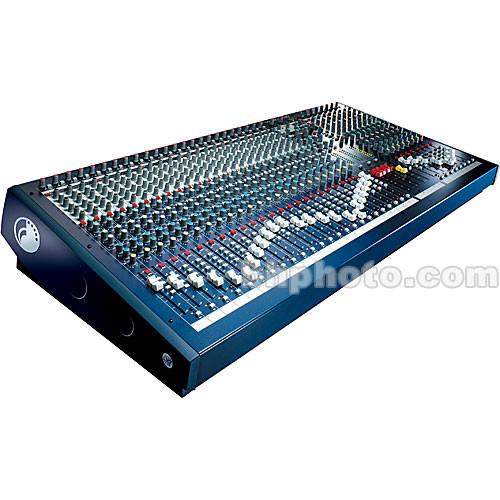

The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 32 channels for recording and monitoring applications.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676:
Total # Of Inputs 32 - Total Line Inputs
Mic/Line Inputs 32 - Balanced 1/4" TRS Phone Inputs
32 - Balanced XLR Mic Inputs
Stereo Line Inputs 2 - L/R Stereo Paired 1/4" TRS Phone
In-Line Inputs/Returns No
AUX Sends 6 - 1/4" TRS Phone
AUX Returns 2 - L/R Stereo Paired 1/4" TRS Phone )
Inserts No
BUS (Group) Outputs AUX Outputs: 6 - 1/4" TRS Phone
2 Trk Master I/O Main Outputs: L/R Balanced 3-pin XLR male
ALT I/O Monitor Output: L/R 1/4" TRS Phone
2 Trk Input: L/R RCA Phono jacks
Monitor Outputs Monitor Output: L/R 1/4" TRS Phone
EQ Section 100Hz, 18dB per octave
HF: 12kHz, +/-15dB, 2nd order shelving
Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1
Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1
LF: 80Hz, +/-15dB 2nd order shelving
Solo/Mute Mute & Solo on all channels
Channel Level Control 100mm Faders
Trim/Gain Control Sealed Rotary Potentiometers
Phantom Power +48 Volt
Metering 12-segment multicolored LED: Group Masters, L/R Master sections
AFL/PFL LED indicator
Frequency Response XLR input to any output:
20Hz to 20kHz, +0/-1dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio < -128dBu (150 Ohm source)
22Hz - 22kHz bandwidth, unweighted
Total Harmonic Distortion (THD) All measurements at +10dBu output 30dB gain
XLR Input to Direct Output: <0.007% @ 1kHz
XLR Input to Mix Output: <0.008% @ 1kHz
Power Supply Universal Mains input 85V-270V AC, 50Hz/60Hz
Power Consumption - less than 50W
Dimensions 41.4 x 6.5 x 19.8" (1059 x 164 x 503mm) (WxHxD)
Weight 50lbs (23kg)
Packaging Info
Package Weight 56.6 lb
Box Dimensions (LxWxH) 45.0 x 25.0 x 12.0"
The user manual for the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676.

The user manual lists all of the functions of the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft LX7 II - 32 Channel Recording Mixer RW5676. User manuals are also available on the Soundcraft website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
