User manual Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB

Operating instructions and pdf manual for use - Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB User manual, User manual Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB, Speco, Technologies, 4-Channel, Wall, Mount, DVR, 2TB, D


User manual for Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB

Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB
  • Manufacturer: Speco Technologies
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Speco Technologies
  • Settings and expert assistance
  • Contact Speco Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 341 USD
Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB
Click to enlarge image

We recommend checking out our discussion threads on the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Speco Technologies.



User manual for the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB

The user manual for the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

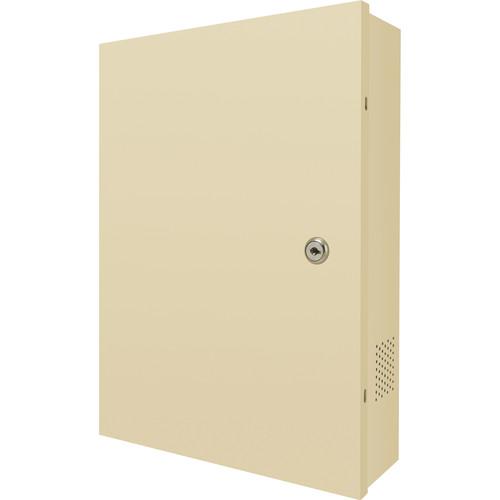

The 2TB 4-Channel Wall Mount DVR from Speco Technologies has 2-way audio communication and an easy and simple graphical user interface. It features remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via Internet. With either Event Recording (Motion) or Alarm In activated in your Speco DVR, the integrated Digital Deterrent feature can generate both Light and Sound warning indicators. This easily mountable unit can be installed in equipment closets or electrical rooms for covert monitoring.
If you own a Speco Technologies digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB:
Specifications
Video
Input Channel: 4
Input Level: Composite, 1.0 Vpp, 75 ohms
Signal Format: NTSC / PAL
Video Loss Check: Yes
Output HDMI: 1 HDMI (1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080)
VGA: 1 VGA (1024x768, 1280x720, 1280x1024, 1920x1080)
CVBS / Spot: 1 main or 1 spot
Audio
Input & Output 4 line input & 1 line output
Audio Codec G.711
Serial Interface
RS-485 PTZ: 1
Recording
Compression H.264 (baseline, main, and high profile)
Multi-Operation Quadplex (play, record, network, backup)
Resolutions & Frame Rates 1080p TVI: 60 fps
720p TVI: 120 fps
960H Analog: 120 fps
Recording Mode Continuous / Motion / Sensor / Schedule / Manual / Continuous + Motion / Continuous + Sensor
Pre-Recording Function Maximum 20 minutes
Post Recording Maximum 60 seconds
Playback
Multi-Decoding 1, 4
Search EZ Search, smart (museum) search, timeline, event, archive, log
Storage
Storage Capacity 2 TB
HDD Interface Type: Serial ATA
Capacity of 1 HDD: 4 TB
Internal HDDs: 2
Backup USB Flash Drive / USB External HDD / Network: Video and still image
USB Port 2
User Interface
Menu Display GUI
Input Method IR, mouse, keyboard controller
Network
Interface 10/100Base-T
Streaming CIF 15 fps / channel max
Network Access
Viewer Mobile: Live, search, PTZ, 2-way audio
PC Web: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)
Client PC: SpecoTech Multi-Client Viewer and SecureGuard Plus CMS (live, search, backup, PTZ, remote setup)
MAC: Speco Client for MAC and SecureGuard CMS (live, search, backup, PTZ, remote setup)
Features
Digital Deterrent Default + up to 8 custom audio files
Internal Beep By video loss, HDD error
Multi-Language English / Spanish / French
Dynamic DNS Yes (free Speco DDNS)
Upgrades SW: USB and remote software upgrade
Power
Power Supply Voltage 12 VDC, 3 A
Environmental
Operating Temperature 41 to 104°F (5 to 40°C)
Humidity 20 to 80% RH
Storage Temperature 14 to 122°F (-10 to 50°C)
Mechanical
Dimensions (W x H x D) 11.5 x 15 x 3.5" (29.2 x 38 x 8.9 cm)
Weight 8.5 lb (4 kg)
The user manual for the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Speco Technologies users keep a unique electronic library for Speco Technologies digital video recorders (dvrs)s, where you can use our link to download the user manual for the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB.

The user manual lists all of the functions of the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Speco Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Speco Technologies 4-Channel Wall Mount DVR (2TB) D4WVT2TB. User manuals are also available on the Speco Technologies website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
