User manual Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB

Operating instructions and pdf manual for use - Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB User manual, User manual Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB, Speco, Technologies, 8-Channel, Wall, Mount, NVR, N8WNS1TB,


User manual for Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB

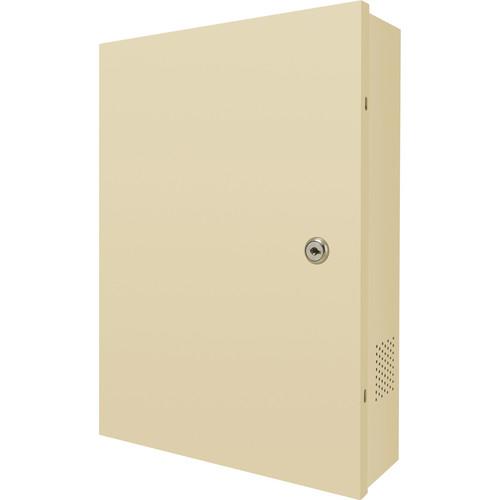

Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB
  • Manufacturer: Speco Technologies
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your Speco Technologies
  • Settings and expert assistance
  • Contact Speco Technologies service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB, which address similar problems with connecting and setting up Network Video Recorders (NVRs) Speco Technologies.



User manual for the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB

The user manual for the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

The 1TB 8-Channel Wall Mount NVR with Digital Deterrent from Speco Technologies has 2-way audio communication and an easy and simple graphical user interface. It features remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via Internet.
If you own a Speco Technologies network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB:
Video
Input IP Camera: 8
Resolution: Maximum 1920 x 1080
Output Main Monitor: VGA and HDMI
Sub Monitor: CVBS
Audio
Input IP Camera (Network): 8
Local Input (RCA): 8
Output Local Output (RCA): 1
Audio Codec G.711
Event
Sensor Input IP Camera (Network): 8
Local Input (Terminal Block): 4
Alarm Output Local (Terminal Block): 1
Serial Interface
RS-232C 1
RS-485 1
Network
LAN IP Camera, Auto Connection: 10/100/1000 Base-T
WAN IP Camera, Remote Access: 10/100/1000 Base-T
Protocols TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, TRP, RTSP, ONVIF
Recording
Compression H.264 (baseline, main, and high profile)
Resolutions & Frame Rates D1: 240 fps
1280 x 720: 240 fps
1920 x 1080: 240 fps
Recording Mode Continuous / Motion / Sensor / Schedule / Manual
Pre-Recording Function Maximum 20 minutes
Post Recording Maximum 60 seconds
Playback
Search EZ Search, date/time, event, archive, log
Multi-Decoding 1, 4 , 8
Playback Speed x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup
Media USB Drive, External HDD, Network
File Format BMP, AVI, Proprietary Format
Large Backup Yes (maximum 24 hours)
Storage
Storage Capacity 1 TB
HDD Support Capacity of 1 HDD: 3 TB
Internal HDDs: 3
e-SATA: 1
USB 2
User Interface
Input Method IR, mouse, keyboard controller
Network Access
Viewer Smartphone Viewer: iPad / iPhone / Android
PC Web Viewer: Windows (IE, Chrome, Firefox, Safari)
Client PC: SpecoTech Multi-Client Viewer and Secure Guard CMS
Mac: Speco Client for Mac and Secure Guard CMS
Power
Power Supply Voltage 12 VDC, 5 A
Environmental
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature 14 to 122°F (-10 to 50°C)
Mechanical
Dimensions (W x H x D) 13.5 x 17.0 x 3.5" (34.3 x 43.2 x 8.9 cm)
Weight 12.00 lb (5.44 kg)
Packaging Info
Package Weight 8.0 lb
Box Dimensions (LxWxH) 22.63 x 16.75 x 6.5"
The user manual for the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Speco Technologies users keep a unique electronic library for Speco Technologies network video recorders (nvrs)s, where you can use our link to download the user manual for the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB.

The user manual lists all of the functions of the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Speco Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Speco Technologies 8-Channel Wall Mount NVR N8WNS1TB. User manuals are also available on the Speco Technologies website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
