User manual STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN

Operating instructions and pdf manual for use - STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN User manual, User manual STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN, STARDOT, NetCam, SC, SDH, Series, SDH130BN, H.264, 1.3MP


User manual for STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN

STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN
  • Manufacturer: STARDOT
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your STARDOT
  • Settings and expert assistance
  • Contact STARDOT service
  • Troubleshooting
  • Warranty information
  • Price: 464 USD
We recommend checking out our discussion threads on the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN, which address similar problems with connecting and setting up Wired IP Cameras STARDOT.



User manual for the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN

The user manual for the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

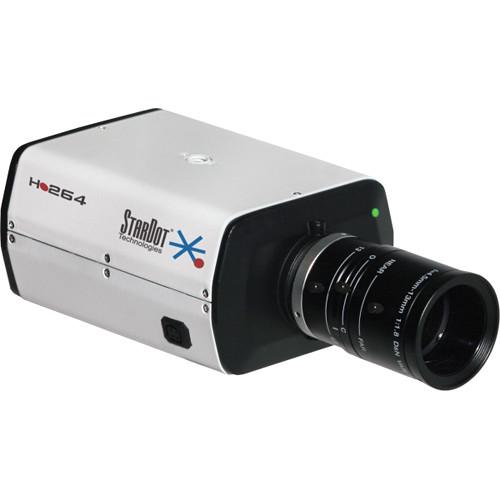

The StarDot Technologies NetCam SC SDH Series SDH130BN H.264 1.3MP Hybrid IP True Day/Night Box Camera utilizes a 1/2.5” CMOS sensor with a 4mm fixed lens to capture clear images in at maximum resolution of 1.3MP (1296 x 976) at 30 fps. It features an automatic (with manual override) day/night mechanical IR filter mechanism that allows recording in color with illumination levels as low as 0.3 lux. When the illumination levels go below 0.3 lux, the camera switches to night mode and records in black-and-white. This multi-megapixel camera supports dual codec (H.264/MJPEG) video streaming at 1.3MP. In addition to streaming H.264 and MJPEG, the camera simultaneously outputs analog video at up to D1 resolution. This hybrid IP camera offers simultaneous streaming of videos via the IP network (Dual Codec H.264/MJPEG) & BNC coaxial video output.
If you own a STARDOT wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN:
Specifications
    Imaging
    Imaging Sensor 1/2.5" color CMOS
    Lens 4 mm fixed lens
    Lens Mount CS mount (C-mount with adapter)

    Adapter not included.

    Maximum Resolution 1.3 MP (1296 x 976) at 30 fps
    Exposure Range 1/48,000 to 0.7 sec
    BNC Output Yes
    Image Controls Auto exposure, auto color balance, smart sharpening
    Contrast Control Contrast adjustment, brightness adjustment, digital noise reduction, adaptive imaging
    Day/Night True day/night mechanical IR filter
    Light Sensitivity 0.3 lux color
    Flicker Filter Control Selectable
    Privacy Mask Type Hardware mask, 16 x 16 zone
    Motion Detection Hardware motion detection, 16 x 16 zone
    Image Format JPEG, M-JPEG, adjustable quality/file size, H.264 up to 1.3 MP
    Data Transmission
    Frame Rate Motion JPEG Up to 30 fps
    Frame Rate H.264 Up to 30 fps, AVC / H.264 (ISO/IEC 14496-10)
    H.264 Profile Baseline
    System Latency <33 ms
    Compression levels 30
    Bit Rate VBR (Variable Bit Rate) and/or CBR (Constant Bit Rate) for H.264
    Multicast Up to 8 streams
    Interface Standard PSIA
    Transfer Protocol FTP, HTTP, FTP, RTSP
    Connectivity
    Ethernet Connector 10/100-BaseT, RJ45, PoE 802.3af
    BNC Output Output PAL and NTSC video
    Serial Connection RS-232 serial, DB9 male, up to 115.2 kb/s
    Power Auxiliary DC/Legacy AC/PoE
    Alarm Input 1 x Fully isolated digital alarm input
    Relay Output 1 x Fully isolated relay at 28 VDC, 2 A or 125 VDC, 0.5 A
    Auto Iris DC auto iris connector
    Network
    Web Browser Interface Built-in Web server, Telnet server, email client and FTP client
    Supported Protocols TCP/IP, HTTP, FTP, ARP, NTP, Telnet, Daytime, X/Y/Z modem
    Security Password-protected user accounts for viewing and configuring NetCam SC
    Physical
    Operating System uClinux operating system Requires 32 MB DRAM, 4 MB flash memory, 32 MB imaging buffer
    Operating Temperature -40 to 120°F (-40 to 50°C) without heater/blower
    Power Requirements 12 VDC/24 VAC/PoE [via 802.3af approved PoE switch or PoE power injector (not included) (48 VDC)]
    PoE Class 3
    Power Consumption 4 W
    Approvals EMI: FCC Class A, CE (EN55024)
    Case Aluminum
    Dimensions (W x H x D) 3.23 x 2.25 x 4.40" (82.00 x 57.00 x 112.00 mm) without lens

    The BNC video connector adds 0.7" (18.0 mm) to the length of the camera.

    Weight 14 oz (397 g)
    The user manual for the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other STARDOT users keep a unique electronic library for STARDOT wired ip camerass, where you can use our link to download the user manual for the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN.

    The user manual lists all of the functions of the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from STARDOT service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the STARDOT NetCam SC SDH Series SDH130BN H.264 1.3MP SDH130BN. User manuals are also available on the STARDOT website under Surveillance - Surveillance Video - Wired IP Cameras.
