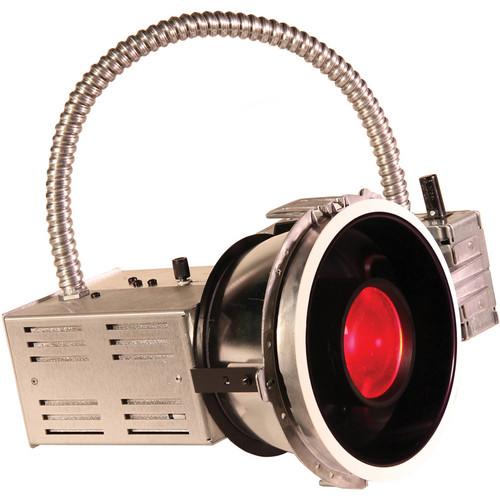

The Strand Lighting PLHLIB PL House Light LED Luminaire for New Constructions with a black reflector offers an RGBW 50,000-hour L70 replacement for 300 and 500W halogen house lights. Being an RGBW LED luminaire, the PL House light also aides in the overall lighting design of a production, thereby giving designers the control and flexibility to immerse the audience in color.
If you own a Strand Lighting architectural lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Strand Lighting PLHLIB PL House Light LED Luminaire PLHLIB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Strand Lighting PLHLIB PL House Light LED Luminaire PLHLIB:
Specifications
    Photometrics 40° Beam
    7.2' (2.2 m) beam diameter, 10' (3.0 m) throw distance
    Warm White (3200 K): 629 lux (59 fc)
    Cool White (4000 K): 842 lux (78 fc)
    Daylight (5600 K): 1,049 lux (98 fc)
    10.8' (3.3 m) beam diameter, 15' (4.5 m) throw distance
    Warm White (3200 K): 280 lux (26 fc)
    Cool White (4000 K): 375 lux (35 fc)
    Daylight (5600 K): 467 lux (43 fc)
    14.5' (4.4 m) beam diameter, 20' (6.1 m) throw distance
    Warm White (3200 K): 157 lux (15 fc)
    Cool White (4000 K): 211 lux (20 fc)
    Daylight (5600 K): 262 lux (24 fc)
    18.1' (5.5 m) beam diameter, 25' (7.6 m) throw distance
    Warm White (3200 K): 101 lux (9 fc)
    Cool White (4000 K): 135 lux (13 fc)
    Daylight (5600 K): 168 lux (16 fc)
    21.7' (6.6 m) beam diameter, 30' (9.1 m) throw distance
    Warm White (3200 K): 70 lux (7 fc)
    Cool White (4000 K): 94 lux (9 fc)
    Daylight (5600 K): 117 lux (11 fc)

    30° Beam
    5.3' (1.6 m) beam diameter, 10' (3.0 m) throw distance
    Warm White (3200 K): 1,160 lux (108 fc)
    Cool White (4000 K): 1,617 lux (150 fc)
    Daylight (5600 K): 1,995 lux (186 fc)
    7.9' (2.4 m) beam diameter, 15' (4.5 m) throw distance
    Warm White (3200 K): 517 lux (48 fc)
    Cool White (4000 K): 720 lux (67 fc)
    Daylight (5600 K): 889 lux (83 fc)
    10.6' (3.2 m) beam diameter, 20' (6.1 m) throw distance
    Warm White (3200 K): 290 lux (27 fc)
    Cool White (4000 K): 404 lux (38 fc)
    Daylight (5600 K): 499 lux (46 fc)
    13.3' (4.0 m) beam diameter, 25' (7.6 m) throw distance
    Warm White (3200 K): 186 lux (17 fc)
    Cool White (4000 K): 259 lux (24 fc)
    Daylight (5600 K): 320 lux (30 fc)
    15.9' (4.8 m) beam diameter, 30' (9.1 m) throw distance
    Warm White (3200 K): 129 lux (12 fc)
    Cool White (4000 K): 180 lux (17 fc)
    Daylight (5600 K): 222 lux (21 fc)
    18.6' (5.6 m) beam diameter, 35' (10.6 m) throw distance
    Warm White (3200 K): 95 lux (9 fc)
    Cool White (4000 K): 132 lux (12 fc)
    Daylight (5600 K): 163 lux (15 fc)
    21.2' (6.4 m) beam diameter, 40' (12.2 m) throw distance
    Warm White (3200 K): 73 lux (7 fc)
    Cool White (4000 K): 101 lux (9 fc)
    Daylight (5600 K): 125 lux (12 fc)

    20° Beam
    3.6' (1.1 m) beam diameter, 10' (3.0 m) throw distance
    Warm White (3200 K): 2,407 lux (224 fc)
    Cool White (4000 K): 3,395 lux (316 fc)
    Daylight (5600 K): 4,046 lux (376 fc)
    5.4' (1.6 m) beam diameter, 15' (4.5 m) throw distance
    Warm White (3200 K): 1,072 lux (100 fc)
    Cool White (4000 K): 1,512 lux (140 fc)
    Daylight (5600 K): 1,802 lux (167 fc)
    7.2' (2.2 m) beam diameter, 20' (6.1 m) throw distance
    Warm White (3200 K): 602 lux (56 fc)
    Cool White (4000 K): 849 lux (79 fc)
    Daylight (5600 K): 1,011 lux (94 fc)
    9.0' (2.7 m) beam diameter, 25' (7.6 m) throw distance
    Warm White (3200 K): 386 lux (36 fc)
    Cool White (4000 K): 544 lux (51 fc)
    Daylight (5600 K): 648 lux (60 fc)
    10.8' (3.3 m) beam diameter, 30' (9.1 m) throw distance
    Warm White (3200 K): 268 lux (25 fc)
    Cool White (4000 K): 378 lux (35 fc)
    Daylight (5600 K): 451 lux (42 fc)
    12.7' (3.8 m) beam diameter, 35' (10.6 m) throw distance
    Warm White (3200 K): 197 lux (18 fc)
    Cool White (4000 K): 277 lux (26 fc)
    Daylight (5600 K): 331 lux (31 fc)
    14.5' (4.4 m) beam diameter, 40' (12.1 m) throw distance
    Warm White (3200 K): 151 lux (14 fc)
    Cool White (4000 K): 213 lux (20 fc)
    Daylight (5600 K): 253 lux (24 fc)
    16.3' (4.9 m) beam diameter, 45' (13.7 m) throw distance
    Warm White (3200 K): 119 lux (11 fc)
    Cool White (4000 K): 168 lux (16 fc)
    Daylight (5600 K): 200 lux (19 fc)
    18.1' (5.5 m) beam diameter, 50' (15.2 m) throw distance
    Warm White (3200 K): 96 lux (9 fc)
    Cool White (4000 K): 136 lux (13 fc)
    Daylight (5600 K): 162 lux (15 fc)
    Source True RGBW 120 W LED chip
    Output > 2,000 lumens (white light)
    Operating Voltage 120 VAC
    Frequency 50/60 Hz
    Current Draw 1.25 A (150 W)
    Load Quiscent: 2.4 W
    Control -board menu / DMX512
    Channels DMX512
    15 Channels (16-Bit Mode)
    9 Channels (8-Bit Mode)
    3 Channels (3-Channel Mode)
    Lenses Precision-coated aspheric lenses
    Construction Die cast aluminum and molded engineering grade plastic components
    Beam Spread 20 to 45°
    Ambient Temperature 32 to 104° F (0 to 40°C)
    Standards Compliance ETL/cETL Listed (NON-IC Rated)

    PL House Light LED Luminaires are NON-IC rated and if part of insulation-based applications, a minimum 3" clearance should exist around the fixture and no insulation across the top of it.

    Dimensions 15.0 x 12.0 x 13.1" (381.0 x 304.8 x 332.7 mm)
