User manual Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221

Operating instructions and pdf manual for use - Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221 User manual, User manual Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221, Summit, Audio, 2BA-221, Microphone, Line, Preampli


User manual for Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221
  • Manufacturer: Summit Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your Summit Audio
  • Settings and expert assistance
  • Contact Summit Audio service
  • Troubleshooting
  • Warranty information
  • Price: 680 USD
We recommend checking out our discussion threads on the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221, which address similar problems with connecting and setting up Microphone Preamps Summit Audio.



User manual for the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221

The user manual for the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221 provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

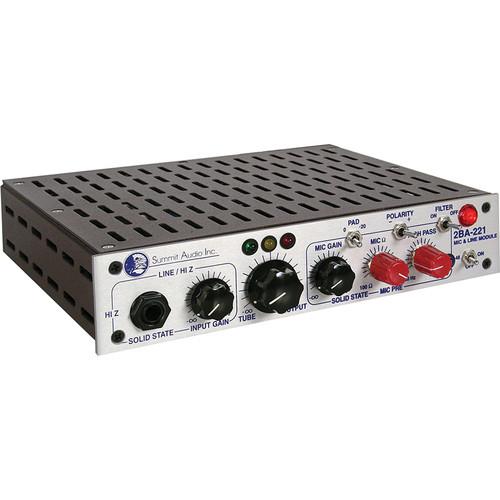

The 2BA-221 from Summit Audio is a microphone/line preamplifier featuring continuously variable microphone impedance. The preamp utilizes separate and individually controlled solid state input controls to mix a microphone input with a Hi-Z or line input into a variable vacuum tube output. Using both the variable impedance and variable solid state and tube stages provides a high level of sonic control.
If you own a Summit Audio microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221:
Number of Channels Single
Inputs 1 x XLR Microphone
1 x 1/4" TRS phone Line
1 x 1/4" TS phone Instrument (front panel)
1 x 1/4" TRS phone "Stacking Input"
1 x 1/4" TRS phone Insert
Output 1 x XLR
1 x 1/4" TRS phone
1 x 1/4" TRS phone "Stacking Output"
Phantom Power 48V
Multi Function No
Gain Range 0dB to 70dB
Maximum Output Level Not specified by manufacturer
Frequency Response 10Hz to 50kHz, -0.5dB unweighted
Noise -98dB
Dimensions (WxDxH) 9 1/2" x 8" x 1/3/4"
Weight Not specified by manufacturer
Specialties Multiple simultaneous outputs with variable tube output gain
Packaging Info
Package Weight 5.65 lb
Box Dimensions (LxWxH) 13.9 x 9.75 x 2.05"
The user manual for the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221 can be downloaded in .pdf format if it did not come with your new microphone preamps, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Summit Audio users keep a unique electronic library for Summit Audio microphone preampss, where you can use our link to download the user manual for the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221.

The user manual lists all of the functions of the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221, all the basic and advanced features and tells you how to use the microphone preamps. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Summit Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Summit Audio 2BA-221 Microphone and Line Preamplifier 2BA-221. User manuals are also available on the Summit Audio website under Pro Audio - Recording - Microphone Preamps.
