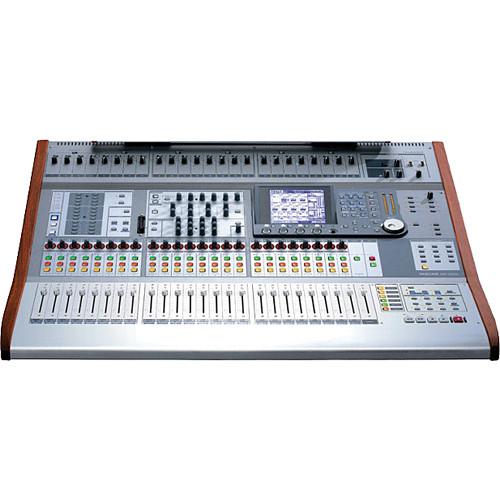

The Tascam DM-4800 is their full featured, flagship digital console with enough input and output routing for large-scale recording applications, live-sound recording and more. The mixer features 48-channels and 16-returns for a total of 64-channels at mix-down. 24 input channels feature XLR microphone, balanced 1/4" phone line and analog inserts for routing to external processors. Among the digital I/O are three TDIF ports for connecting compatible 24-channel digital recorders, DAW hardware, etc.
If you own a Tascam digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tascam DM-4800 Digital Mixing Console DM-4800 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Tascam DM-4800 Digital Mixing Console DM-4800:
| Total # Of Inputs || 64 |
| Mic/Line Inputs || Balanced XLR Microphone x24 |
Balanced 1/4" Phone Line x24 TDIF Digital x24
ADAT I/O x8 AES/EBU XLR (Stereo) x2
S/PDIF RCA (Stereo) x2
| Main/Monitor Out || Stereo Balanced XLR Main Outputs |
Stereo Balanced XLR Monitor Outputs Stereo Balanced 1/4" Phone Monitor Outputs
Stereo Single 1/4" TRS Headphone Outputs x2
| AUX Sends || 1/4" Phone Pseudo Balanced x8 |
| AUX Returns || 1/4" Phone Pseudo Balanced x8 |
| Inserts || 1/4" TRS Phone - all input channels, stereo output |
| Digital I/O Options || IF-AN/DM 8-Channel analog expansion card |
IF-AE/DM 8-Channel AES/EBU expansion card IF-AD/DM 8-Channel ADAT light-pipe expansion card
IF-TD/DM 8-Channel TDIF expansion card IF-SM/DM Surround monitor expansion module
IF-FW/DM MKII FireWire interface card MU-100 24-channel meter bridge
| 2 Trk Master I/O || RCA Stereo Paired Phono x2 |
| Stereo Digital I/O || S/PDIF and AES/EBU x2 |
| Word Clock I/O || BNC I/O x2 |
| RS/To Host Port || RS-422 |
| MIDI Ports || In/Out/Thru |
| EQ Section || High: 31Hz to 19kHz, +/- 18dB, High Shelving, Peak , LPF |
High Mid: 31Hz to 19kHz +/- 18dB, Peak, Notch Low Mid: 31Hz to 19kHz +/- 18dB, Peak, Notch
Low: 31Hz to 19kHz, +/- 18dB, High Shelving, Peak , LPF
| Trim/Gain Range || Not Specified By Manufacturer |
| Solo/Mute || Solo/Mute on All Channels |
| Channel Level Control || 25 x 100mm Touch sensitive, Automated Channel Faders |
| Phantom Power || +48V switched in groups of four |
| Metering || Stereo Peak LED Optional MU-100 meter bridge |
| Internal Signal Processing || Dual TC Effects Processors |
| Sampling Frequency || Up to 24-Bit / 96kHz |
| Memory || 128 User Locations |
| AD/DA Conversion || 24-bit, 96kHz |
| Frequency Response || 20Hz to 20kHz |
| Total Harmonic Distortion (THD) || < 0.005% |
| Signal-to-Noise Ratio || < - 83dBu |
| Power || 130VAC/50Hz, 230VAC/60Hz, 240VAC/60Hz |
| Dimensions (WxHxD) || 36.7 x 9.5 x 32.4" (933 x 240 x 824mm) without meter bridge |
| Weight || Not Specified By Manufacturer |
| Package Weight || 110.5 lb |
| Box Dimensions (LxWxH) || 44.0 x 39.5 x 15.5" |
