User manual for Tascam DP-006 6-Track Digital Pocketstudio DP-006
Overall Rating: 3.0
60% of respondents would recommend this to a friend.
- Manufacturer: Tascam
- Basic description and contents of package
- Product classification: Pro Audio - Recording - Digital Recorders & Players
- Safety instructions
- Startup and operation of the digital recorders & players
- Tips for setting up your Tascam
- Settings and expert assistance
- Contact Tascam service
- Troubleshooting
- Warranty information
- Price: 130 USD
|
We recommend checking out our discussion threads on the Tascam DP-006 6-Track Digital Pocketstudio DP-006,
which address similar problems with connecting and setting up Digital Recorders & Players Tascam.
|
User manual for the Tascam DP-006 6-Track Digital Pocketstudio DP-006
The user manual for the Tascam DP-006 6-Track Digital Pocketstudio DP-006 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Recorders & Players.

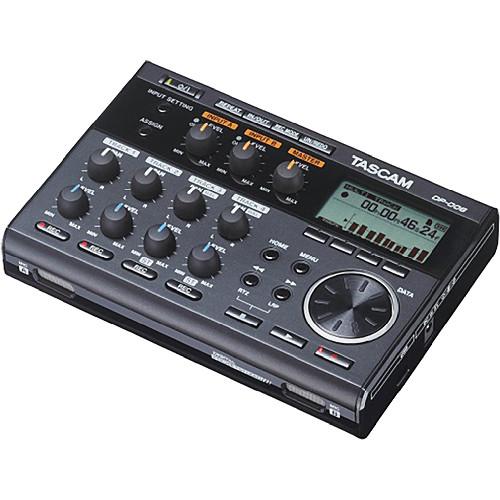

The DP-006 6-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two unbalanced 1/4" TS line inputs can be used to record mic, line or Hi-Z instrument signals. Designed with analog functionality and dedicated control knobs, the DP-006 is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.
The DP-006 provides an 1/8" stereo line output as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-006 is compatible with Tascam's BP-6AA external battery pack. The DP-006 was designed with a tripod mount for versatile set-up and placement. The DP-006 features an ultra lightweight—less than 13 oz —design to ensure portability.
|
If you own a Tascam digital recorders & players and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tascam DP-006 6-Track Digital Pocketstudio DP-006 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Tascam DP-006 6-Track Digital Pocketstudio DP-006:
| Recording Media | SD/SDHC card (up to 32GB) | | File System | TASCAM original (MTR partition)
FAT32 (FAT partition) | | Connector | 2 x 1/4" TS unbalanced | | Input Impedances | Switchable:
≥ 10kΩ mic/line
1MΩ guitar | | Nominal Input Level | -10 dBV | | Maximum Input Level | +6 dBV | | Headroom | 16 dB | | Type | 2 x omni-directional condenser microphone | | Connector | 1/8" (3.5 mm) stereo mini | | Nominal Output Level | -16 dBV | | Maximum Output Level | 0 dBV | | Connector | 1/8" (3.5 mm) stereo mini | | Maximum Output Level | 15 mW per side
(THD+N less than 0.1%, 32Ω loaded) | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB | | Distortion | < 0.05% | | Signal-to-Noise Ratio | > 81 dB | | USB Connector | 1 x USB Mini-B 4-pin | | Format | USB 2.0 high speed mass storage class | | Operating System Requirements | Windows XP / Vista / 7
Mac OS X 10.2 or later | | Power Requirements | 4 x AA batteries (alkaline or NiMH)
TASCAM PS-P520 AC adapter (sold separately) | | Battery Life (approx.) | 8 hrs alkaline, 9 hrs NiMH (using line input/recording)
8.5 hrs alkaline, 9.5 NiMH (using headphone/playback) | | Power Consumption | 1W maximum | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 6.1 x 1.63 x 4.2" (155 x 41.5 x 107 mm) | | Weight | 12.7 oz (360 g) | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.9 x 6.0 x 3.0" | |
The user manual for the Tascam DP-006 6-Track Digital Pocketstudio DP-006 can be downloaded in .pdf
format if it did not come with your new digital recorders & players, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Tascam users keep a unique electronic library
for Tascam digital recorders & playerss,
where you can use our link to download the user manual for the Tascam DP-006 6-Track Digital Pocketstudio DP-006.
The user manual lists all of the functions of the Tascam DP-006 6-Track Digital Pocketstudio DP-006,
all the basic and advanced features and tells you how to use the digital recorders & players.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Tascam service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Tascam DP-006 6-Track Digital Pocketstudio DP-006. User manuals are also
available on the Tascam website under Pro Audio - Recording - Digital Recorders & Players.
